FRONT FORK DISASSEMBLED

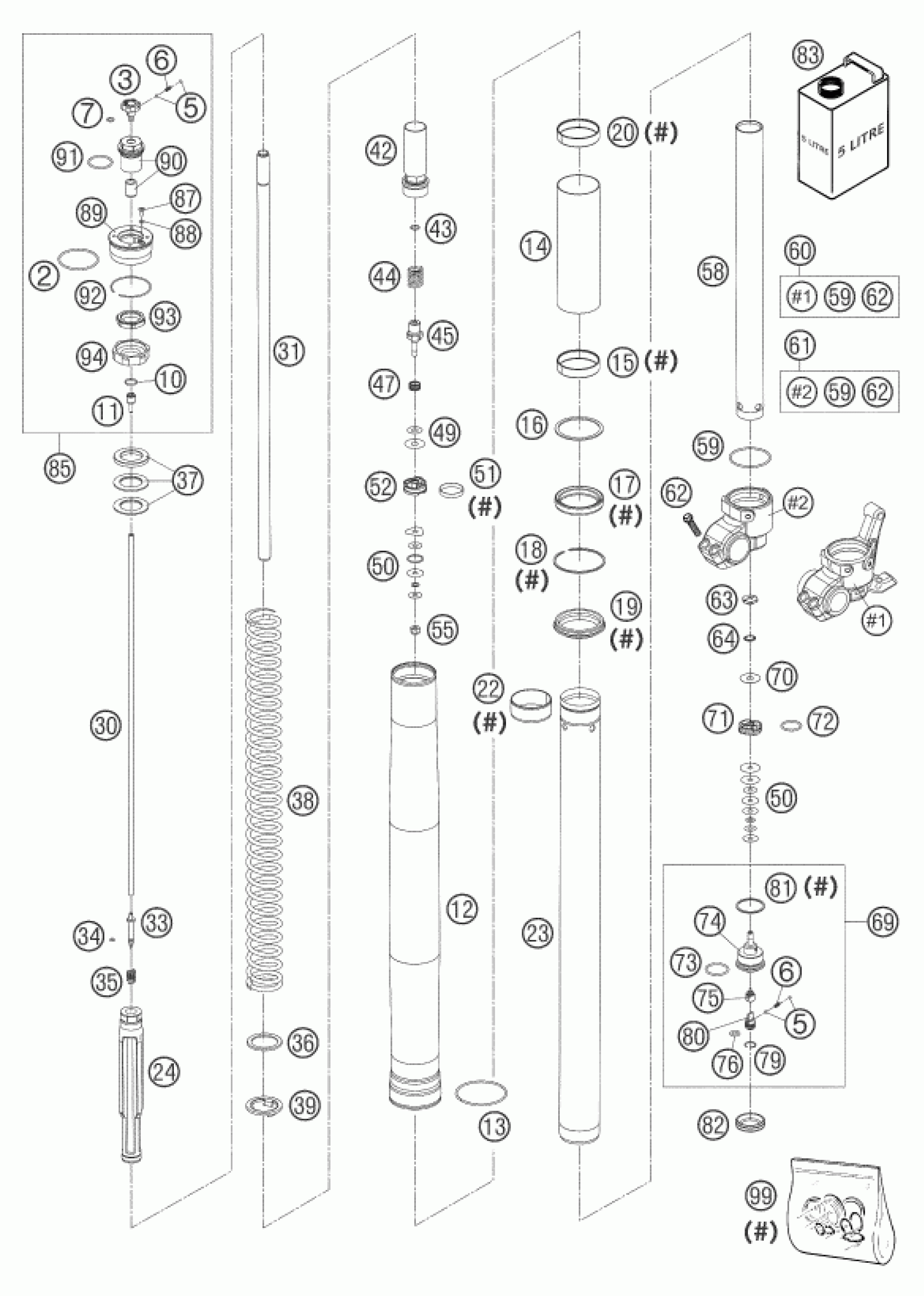

KTM 450 SMR 2004 FRONT FORK DISASSEMBLED Diagram
#
2
O-ring 45x2 NBR70 siliconized
46810340
$1.49
3
Adjuster rebound
48600018
$4.11
5
Steel ball d3
40540603
$1.49
6
Spring (1,7) l7,9
48600028
$3.08
7
O-ring 6x1,5 NBR70
48600044
$1.49
10
O-ring 12x1,5 NBR70
48600043
$2.05
11
Tube tap d4x25
48600019
$3.08
12
OUTER TUBE L=577MM D=54/60MM
48600244
$461.82
13
Round-wire snap ring 48x2
48600016
$3.08
14
SPACER 50,95X0,85X161,5
48600245
$26.22
15
DU-BUSH 48X52X12
48600205
$32.25
16
Supportwasher 50x57,6x1,5
48600013
$3.08
17
OIL SEAL RING 48X57,8X9,5 03
48600347
$13.64
18
Snap ring SB58x1,5 acc drawing
48600070
$2.05
19
DUST STRIPPER D=48
48600348
$12.80
20
Guide bushing 48x51x12
48600236
$22.99
22
DU-BUS 47X49X20
48600204
$12.05
23
INNER TUBE D=48 L=595 2003
48600240
$276.38
24
HYDR.STOP L=200MM D=31,9 CPL
48600241S
$65.03
30
ADJUSTMENT TUBE L=492MM
48600094
$15.01
31
PISTONROD 14X11X1 L=526
48600254
$63.06
33
Needle 6x42,6 rebound
48600189
$34.68
34
O-ring 3x1,5 NBR70
48600046
$1.49
35
Spring (7,2) 4-23 needle
48600033
$5.23
36
Washer 32x42x2,5 plastic
48600113
$11.12
37
Preload bush 42x26,5x2,5
48600036
$2.05
37
Preload bush 26,5x42x5
48600037
$4.11
37
Preload bush 26,5x42x1,5
48600053
$4.11
38
SPRING 3,6N/MM SET
91410011S
Unavailable
38
SPRING 3,8N/MM SET D=4,9MM
91410012S
Unavailable
38
SPRING 4,0N/MM SET D=5,0MM
91410013S
Unavailable
38
SPRING 4,2N/MM SET D=5,0MM
91410014S
Unavailable
38
SPRING 4,4N/MM SET D=5,1MM
91410015S
Unavailable
38
SPRING 4,6N/MM SET
91410016S
$145.85
38
SPRING 4,8N/MM SET
91410017S
Unavailable
39
Spring retainer 33,5x43x3
48600021
$16.73
42
SCREW SLEEVE M29,3X1 L=65 CPL.
48600200S
$122.17
43
O-ring 8x1,25 NBR70 siliconize
48600239
$1.49
44
REBOUND SPRING 34,5X15X11
48600261
$38.50
45
Tap 6x45 rebound
48600203
$8.37
47
SPRING CHECK VALVE C=0,25
48600356
Unavailable
49
CHECK VALVE 8X24X0,1
48600062
Unavailable
49
CHECK VALVE 8X18X0,1
48600068
Unavailable
49
Shim 8x20x0,10
48600215
Unavailable
49
Shim 8x22x0,10
48600216
Unavailable
50
Shim 6x16x0,10
40540402
Unavailable
50
Shim 6x18x0,10
40540403
Unavailable
50
SHIM 6X14X0,15
40540405
Unavailable
50
SHIM 6X16X0,15
40540406
Unavailable
50
SHIM 6X16X0,25
40540414
Unavailable
50
SHIM 6X18X0,25
40540415
Unavailable
50
Shim 6x11x0,30
40541391
Unavailable
50
Shim 6x24x0,10
48600063
Unavailable
50
Shim 6x22x0,10
48600064
Unavailable
50
Shim 6x20x0,10
48600065
Unavailable
50
SHIM 6X20X0,15
48600069
Unavailable
50
Shim 6x24x0,10 delta
48600116
Unavailable
50
pessure ring 20X16,25X0,20
48600212
Unavailable
51
Pistonring 26x28x5
48600060
$5.23
52
Piston 6,05x27,65x12 rebound
48600042
$11.78
55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
$4.11
58
TUBE 29,3X1X390 D=8,5MM
48600081
$155.20
59
O-ring 46x2 NBR70 siliconized
48600048
$3.08
60
AXLE CLAMP L/S CPL. USD48 04
48600237S
$297.75
61
AXLE CLAMP R/S CPL. USD48 04
48600238S
$289.59
62
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
63
Nut valve M6x0,5 h6,5 WAF17
48600163
$3.08
64
Spring (8,5) l6,5 valve
48600202
$2.05
69
TAP COMPRESSION CPL. 03
48600152S1
$37.67
70
Shim 8x24x0,40
48600061
$2.05
71
Piston 6x27,8x9 compression
48600047
$9.81
72
O-ring 21x2 NBR70
46811499
$1.49
73
O-ring 24x2 NBR70
35480320
$1.49
74
TAP COMPRESSION
48600152
$37.67
75
Needle 10x11,6 compression
48600190
$13.64
76
O-ring 8x2 NBR70
48600049
$1.49
79
Round-wire snap ring 12x1 DIN7
48600051
$3.08
80
Adjustment screw slot compress
48600034
$7.35
81
Copper disc 29,5x33,5x1
48600004
$4.11
82
Rubber cap 35x10 NBR80
48600141
$4.11
83
FORK OIL SAE 5
48600211S1
Unavailable
85
PRE-LOAD ADJUSTER CPL.(1 PC.)
48600075S
$497.96
87
VENT SCREW M4X8
48600076
$2.05
88
O-ring 3x1,5 NBR70
48600046
$1.49
89
SCREW CAP M51X1,5
48600075
$124.95
90
ADAPTER ADJUST. KNOB + BUSHING
48600073S
$154.12
91
O-ring 26x2 NBR90
48600077
$1.49
92
Round-wire snap ring 49x1,5
46810010
$3.08
93
Locking nut M25x1 LH h7 WAF32
48600072
$16.11
94
Carrier ring spring fork
48600071
$38.54
99
REPAIR-KIT GASKET 4860 MXMA 03
R14007
$106.21
