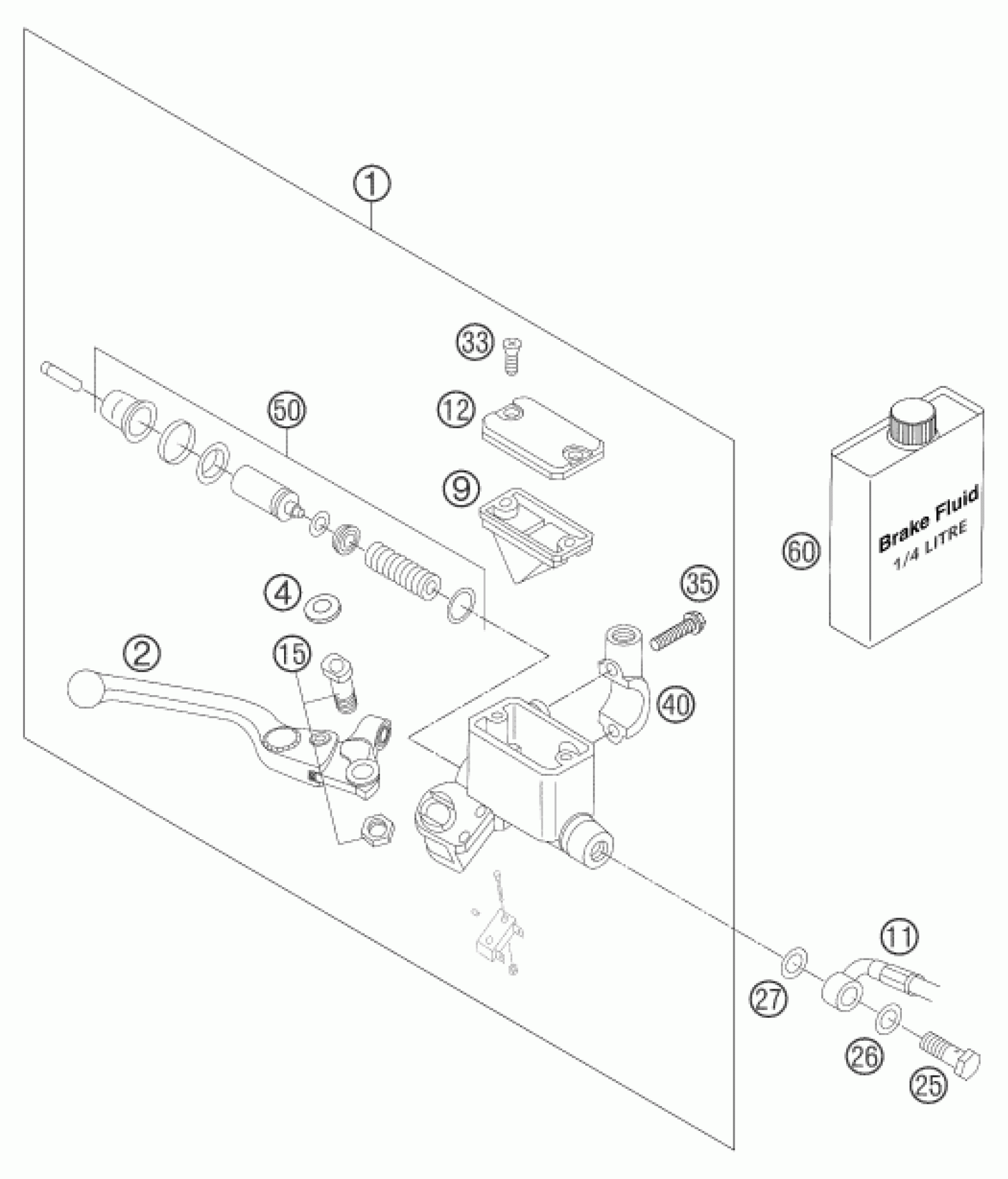

KTM 450 SMR 2004 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HANDBRAKE CYL.DUKE ADJUST.2000

58713001000

Unavailable

2

HAND BRAKE LEVER LOOSE ADJUST.

58713002000

Unavailable

4

COVERING CAP FOR LEVER SCREW

58713004000

Unavailable

9

RUBBER BOOT DUKE

58313009000

Unavailable

11

BRAKE HOSE FR. SMR L=1130MM 04

59413011000

Unavailable

12

COVER BREMBO DUKE '94

58313012000

Unavailable

15

LEVER SCREW CPL.

54413015000

Unavailable

25

HOLLOW SCREW M10X1X19

50213025000

Unavailable

26

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable

27

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

33

FLAT HEAD SCREW DIN0965-M 5X16

0965050163

Unavailable

35

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

40

CLAMP MIRROW M10X1,25

58012040050

Unavailable

50

REPAIR KIT CPL. D=13MM

58313050100

Unavailable

60

BRAKE FLUID DOT 4.0

306054

Unavailable
