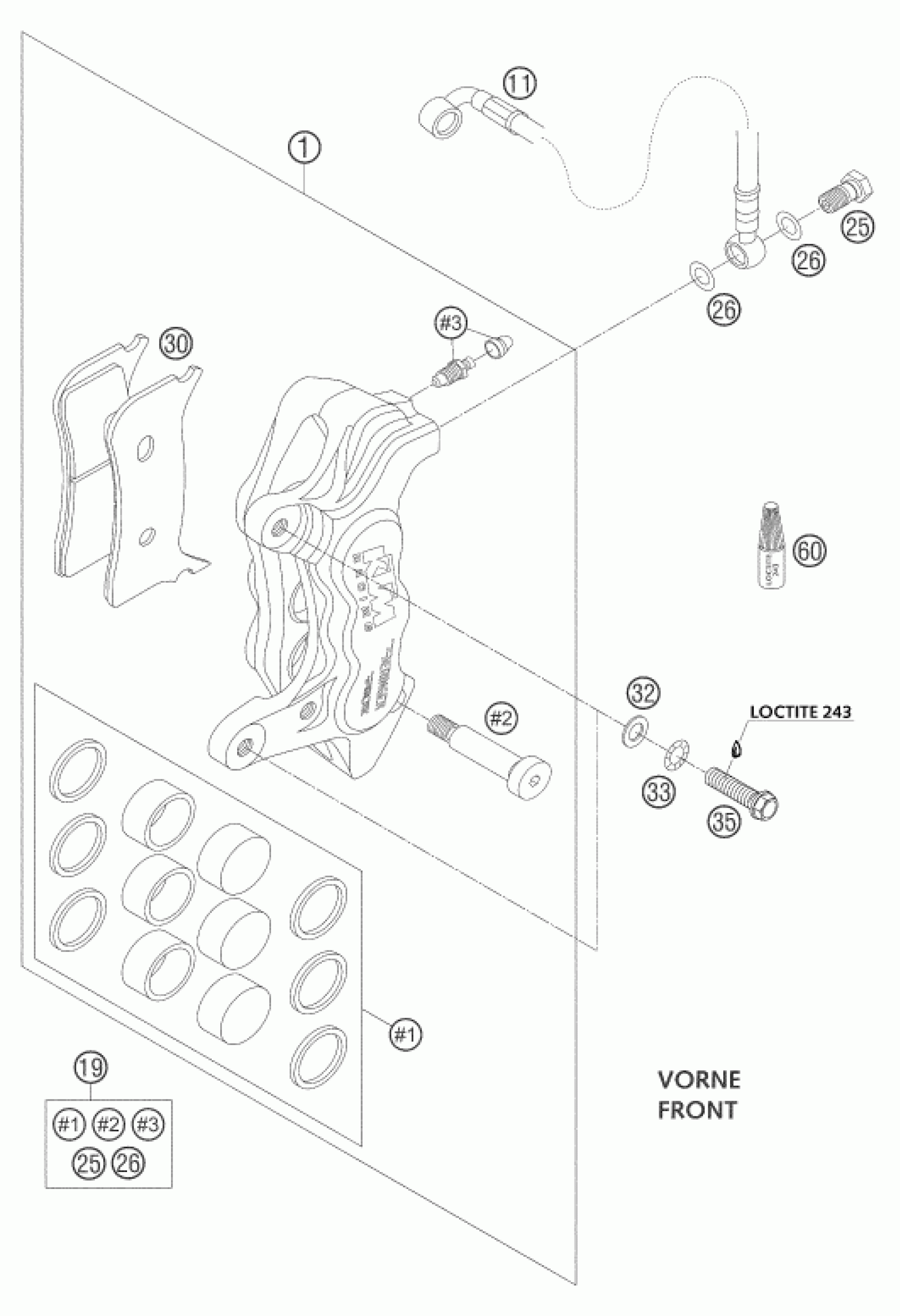

KTM 450 SMR 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

%BR.CALIPER FR. CPL. 6-PIST.04

59413015044

Unavailable

11

BRAKE HOSE FR. SMR L=1130MM 04

59413011000

Unavailable

19

REPAIR KIT CPL. 6-PISTONS 04

80013019000

Unavailable

25

HOLLOW SCREW M10X1X19

50213025000

Unavailable

26

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

30

BRAKE PAD SET FR. SINTER 1100S

80013030000

Unavailable

30

BRAKE PAD SET FR.SINTER 1100R2

80013030100

Unavailable

32

washer DIN 125 A -8.4

0125080003

Unavailable

33

LOCK WASHER 8MM

36003014000

Unavailable

35

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

60

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
