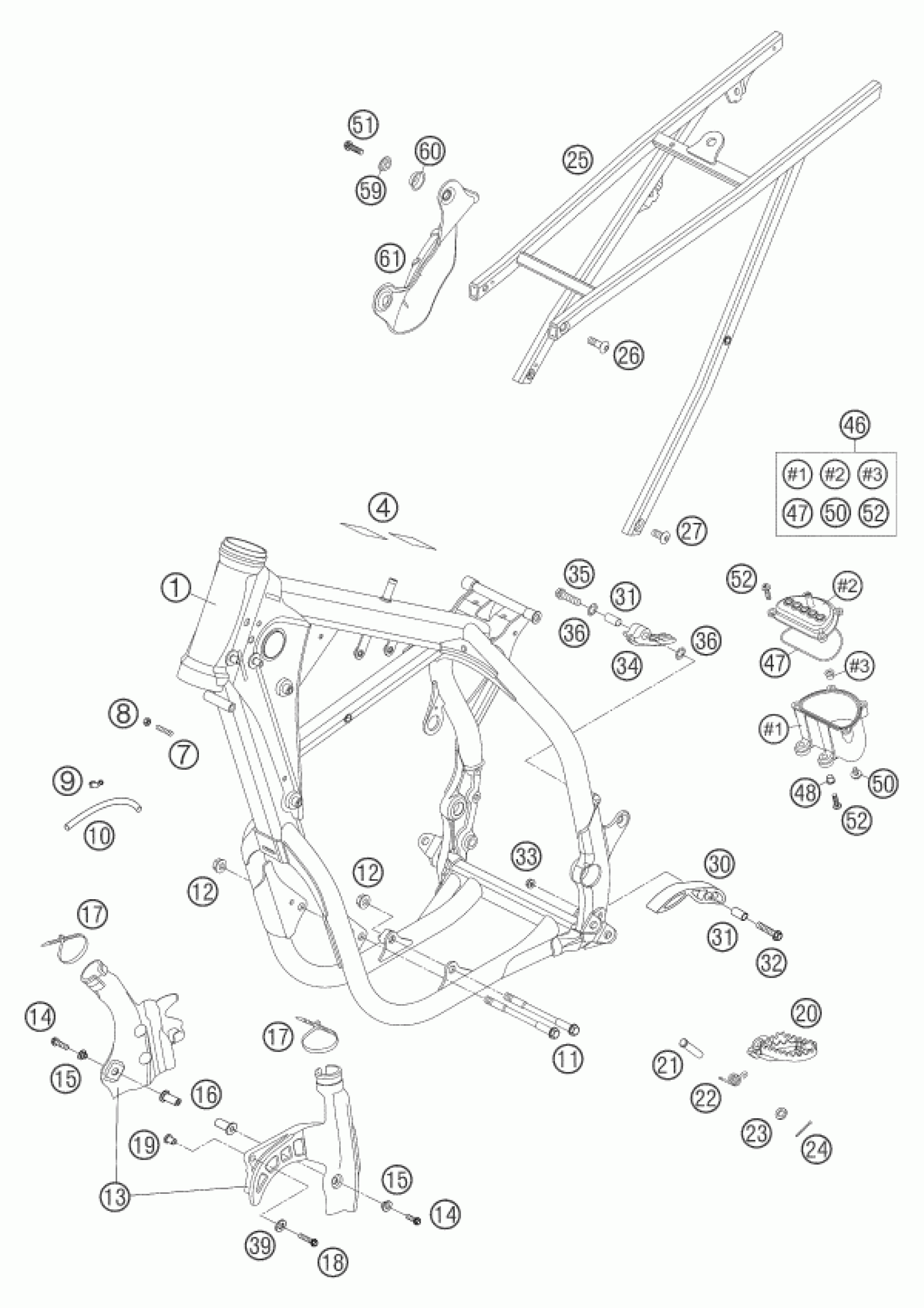

KTM 450 SMR 2004 FRAME Diagram

FRAME 450/525 SMR

5940300140096

Unavailable

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

Hexagon nut DIN934 M8

0934080003

$2.05

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 7X10 PER METER

55007016001

$6.07

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

FRAME PROTECTION SET 03

54803094000

$14.10

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

Bush f. frame protection 03

54803092060

$4.11

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

FOOT PEG L/S SILVER 02

59003040250

$43.66

FOOT PEG R/S SILVER 02

59003041250

$43.66

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

washer DIN 125 A 10.5

0125100003

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

SUB FRAME CPL. ALU RAC.(G3) 03

59403002044

$286.09

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

BUSHING 8,2X10X20

51103053051

$4.11

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

Self locking nut M8 10.9

54310086200

$3.08

CHAIN SLIDING PIECE 03

54804067000

$5.23

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

LOCK WASHER 8MM

36003014000

$2.05

WASHER DIN0125-A 6,4

0125060003

$1.49

EXPANSION TANK CPL. 2004

59431096000

$63.95

O-RING 79,00X2,00 SILICONE

0770790021

Unavailable

spacer bushing for speedometer

58314060050

$5.23

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

BUCKET

72210079000

$3.00

HEAT SHIELD 04

59405011000

$19.51
