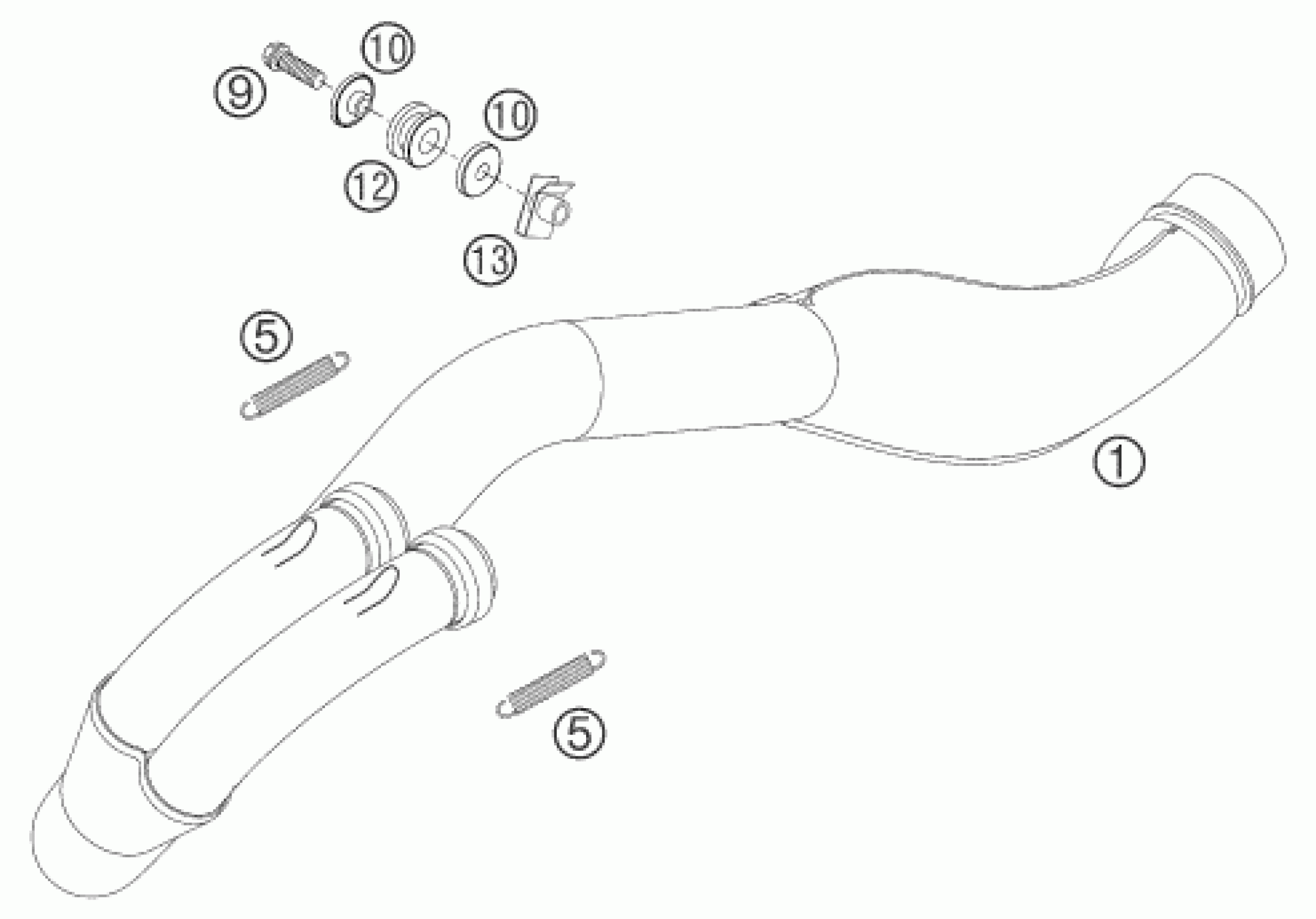

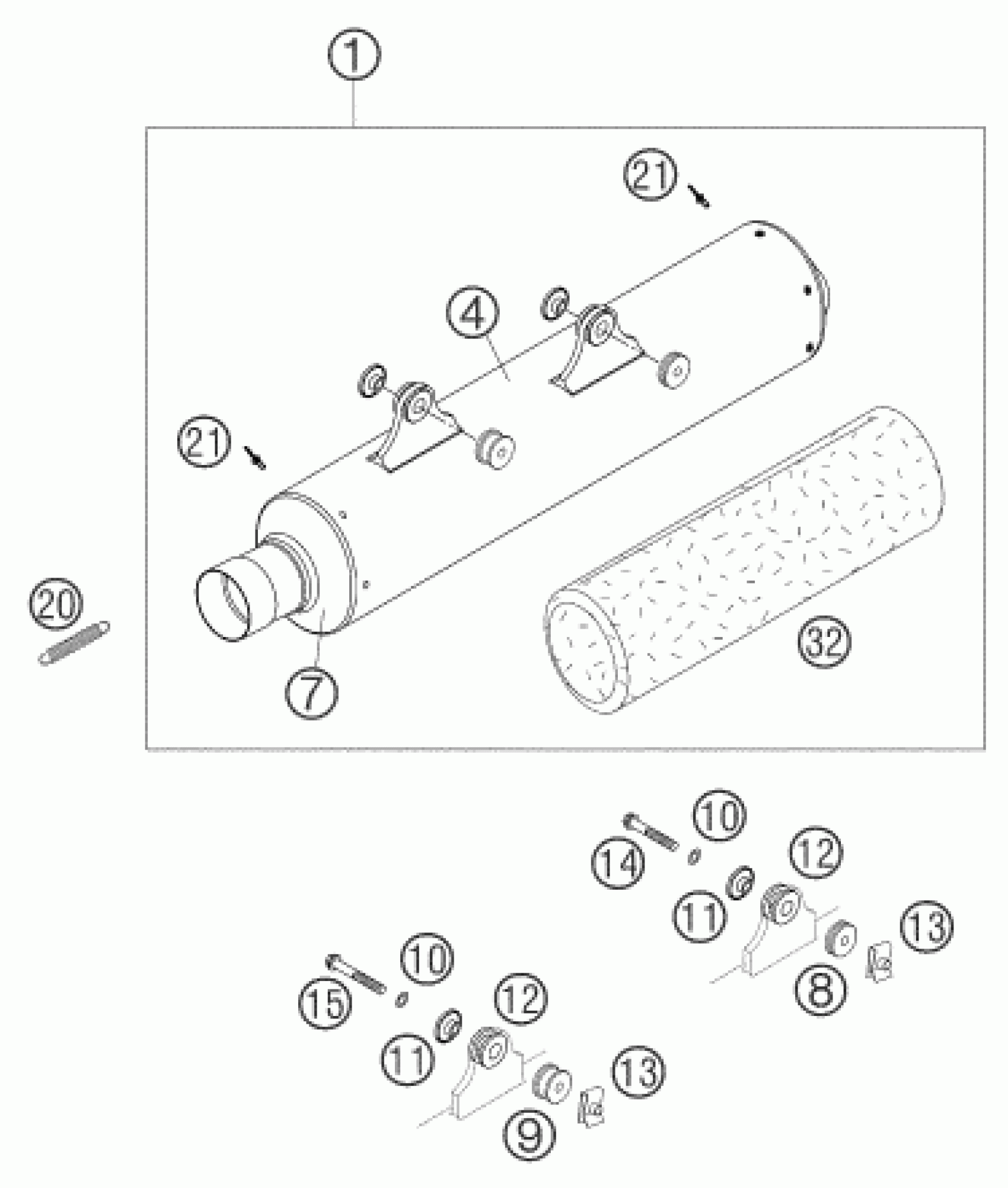

KTM 450 SMR 2004 EXHAUST SYSTEM Diagram

#

Description
Price

1

SILENCER SMR 04

59405079100

Unavailable

4

SILENCER HOUSING CPL. SX 03

59405079050

Unavailable

7

SILENCENER CONNECT. CAP CPL.03

59405079009

Unavailable

8

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

9

BUSHING SIL.-SMR FRONT 2004

59405269000

Unavailable

10

spring washer DIN 137 B - 6

0137060003

Unavailable

11

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

13

clip nut M6

54603048100

Unavailable

14

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

15

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

20

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

21

DUMMY RIVET 4,8X 8,0 NIRO

0011480802

Unavailable

32

STUFF.YARN 550GRAM L=550MM SX

59005078550

Unavailable
