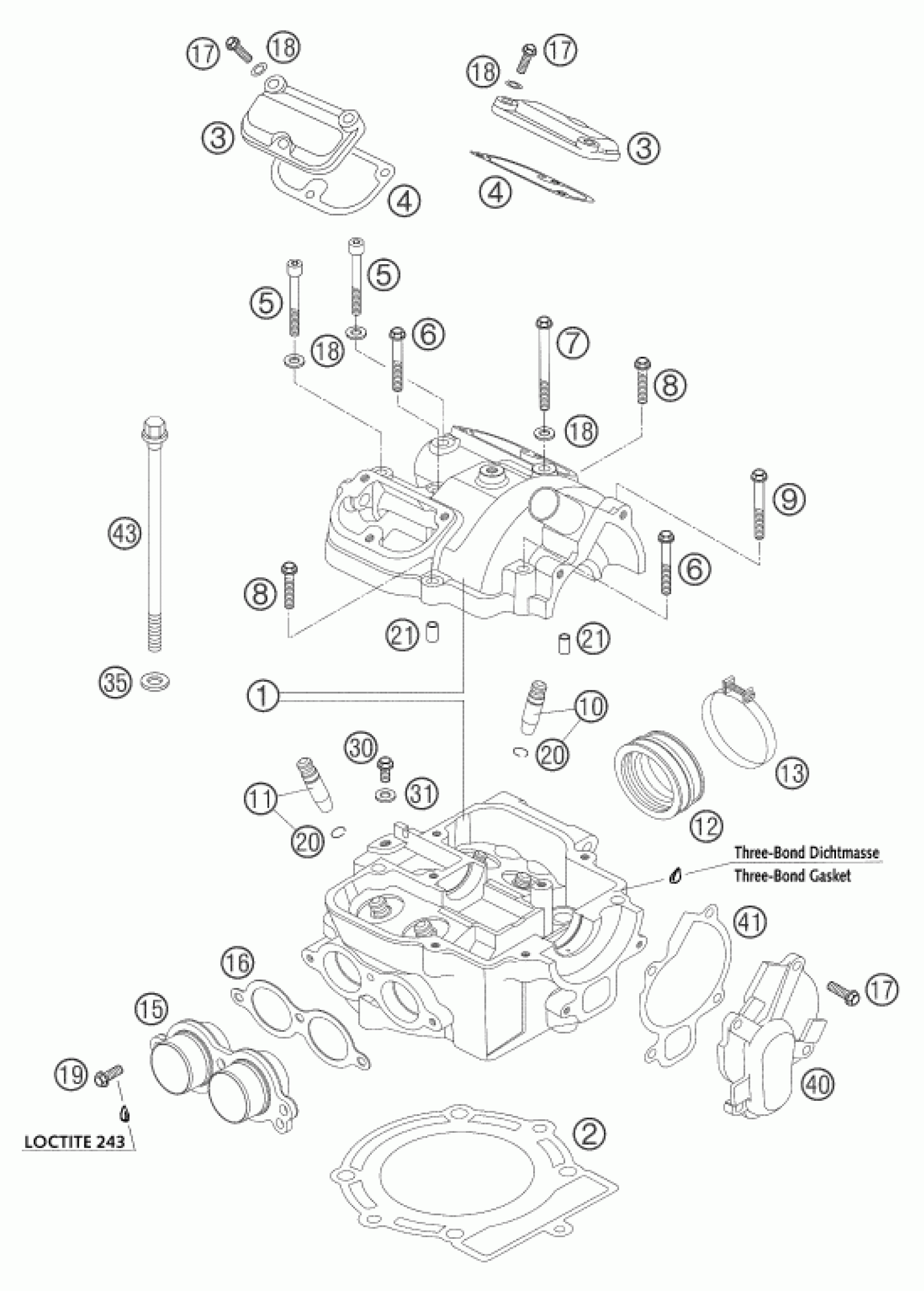

KTM 450 SMR 2004 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

CYL.HEAD CPL.450/525 SX+SMR

59436020144

Unavailable

2

CYLINDER HEAD GASKET 95,3 MM

59030036000

Unavailable

3

VALVE COVER REAR

58036052000

Unavailable

4

VALVE COVER GASKET

58036053000

Unavailable

5

AH SCREW DIN0912-M 6X55 12.9

0912060551

Unavailable

6

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

7

HH COLLAR SCREW M 6X75 WS=8

0015060753

Unavailable

8

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

9

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

10

VALVE GUIDE INTAKE CPL.

59036025144

Unavailable

11

VALVE GUIDE EXHAUST CPL.

59036026144

Unavailable

12

INTAKE BOOT 03

59036044100

Unavailable

13

HOSE CLAMP GEMI 56MM 03

59030061100

Unavailable

15

EXHAUST FLANGE CPL. 450/525 03

59436039000

Unavailable

16

GASKET EXHAUST FLANGE

59036041000

Unavailable

17

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

18

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

19

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

20

CIRCLIP DIN7993-RW12

0993012000

Unavailable

21

dowel sleeve 6x8x11.5

59030023000

Unavailable

30

VENT SCREW M6X10 CPL.

59036006090

Unavailable

31

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

35

WASHER 10,8X18,8X1,5

59036090000

Unavailable

40

WATER PUMP COVER RACING 2000

59035052000

Unavailable

41

WATER PUMP COVER GASKET 0,8MM

59035053000

Unavailable

43

CYLINDER HEAD SCREW M10X142

59436079000

Unavailable

43

CYL.HEAD SCREW M10X158 WS=13

59036079000

Unavailable
