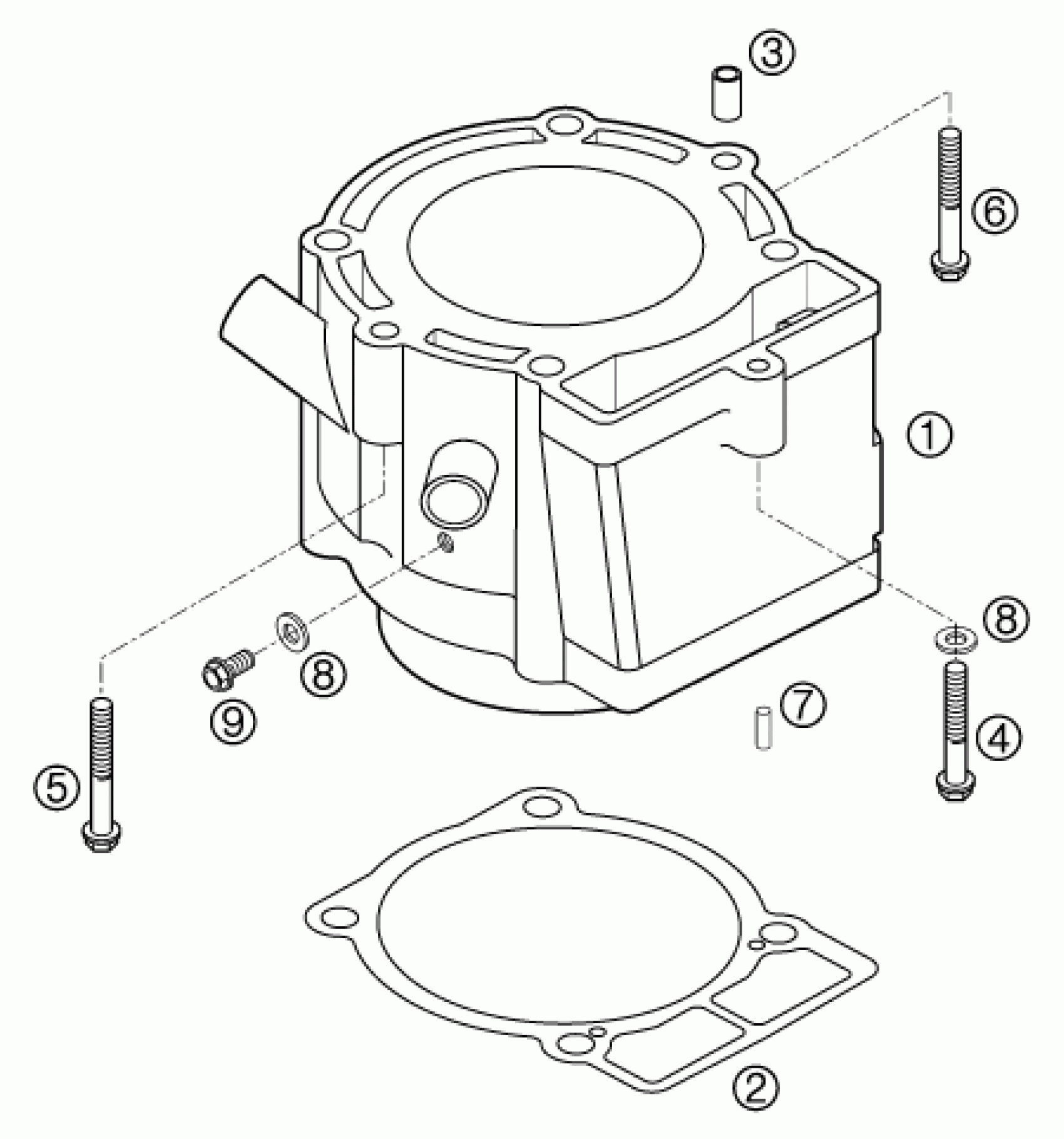

KTM 450 SMR 2004 CYLINDER Diagram

#

Description
Price

1

CYLINDER 450 SX D=95/L=68 03

59430005000

$479.20

1

CYLINDER 95MM 520 RACING 00

59030005000

$427.53

2

CYLINDER BASE GASKET 0,5MM

59030035050

$6.72

3

dowel sleeve 6x8x11.5

59030023000

$1.49

4

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

4

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

5

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

7

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

5

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

6

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

6

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05
