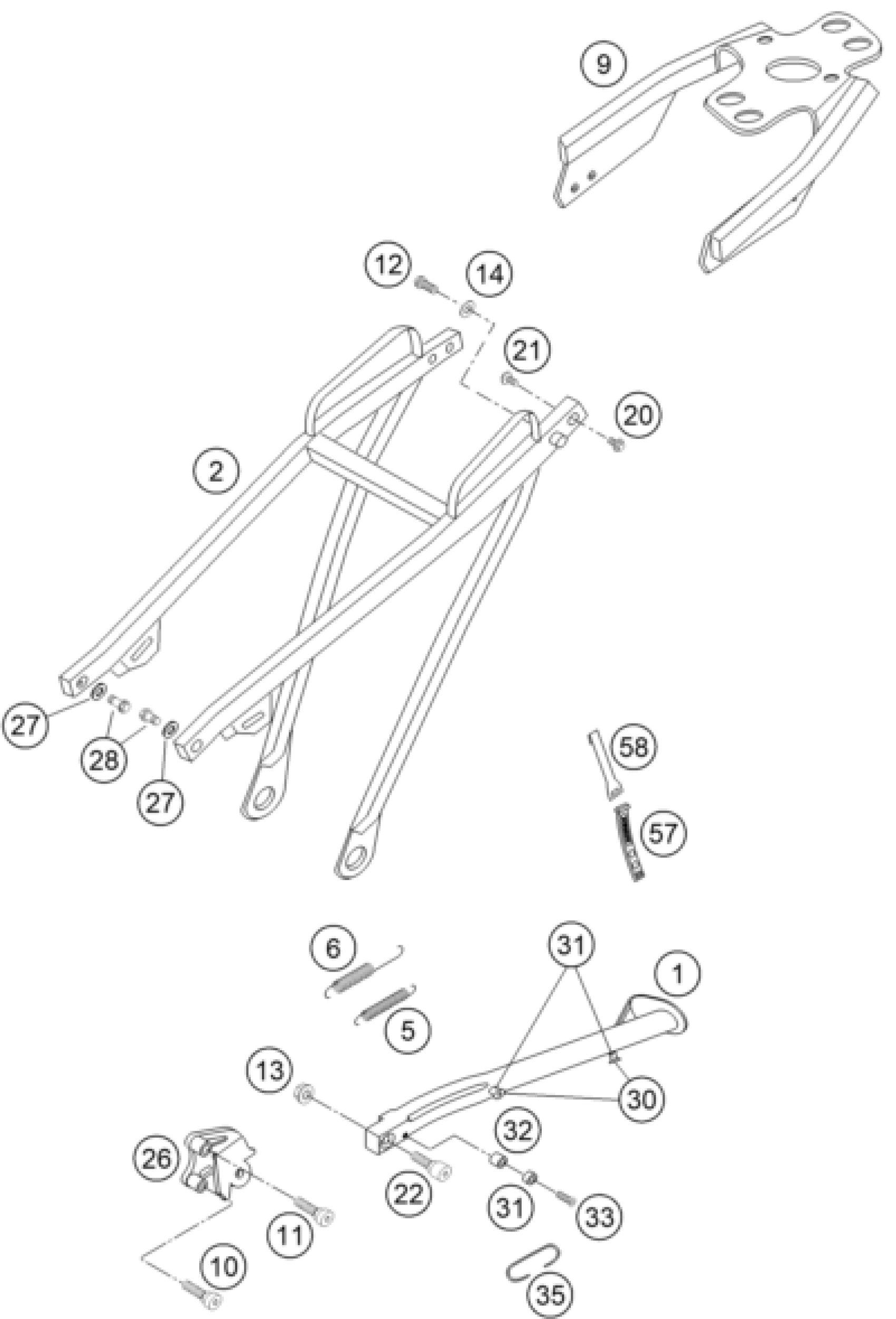

KTM 450 RALLYE FACTORY REPL. 2005 SUBFRAME Diagram

#

Description
Price

1

SIDE STAND RALLYE L=430 01

58503023200

Unavailable

2

SUB FRAME STEEL RALLY 2001

58503002300

Unavailable

5

SIDE STAND SPRING D=7,7MM '97

58403030000

$3.85

6

SIDESTAND SPRING LONG

51003021000

$7.00

9

SUB FRAME EXTENSION 2001

58503002340

Unavailable

10

AH SCREW DIN7984 M10x35

0984100356

Unavailable

11

AH SCREW DIN6912 M10X45

0984100456

Unavailable

12

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

13

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

14

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

20

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

21

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

22

STAND SCREW RALLY 2001

58503023060

Unavailable

26

SIDE STANDING BRACKET CPL.

58503026250

Unavailable

27

LOCK WASHER 8MM

36003014000

$2.05

28

HH COLLAR SCREW S.FRAME RAL.01

58503002001

Unavailable

30

FLAT HEAD SCREW DIN7991 M6X15

0991060153

Unavailable

31

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.05

32

BUSHING 6,5X8X11

54613038150

$4.11

33

FLAT HEAD SCREW DIN7991-M 6X25

0991060253

$1.49

35

SPRING CLIP SIDE STAND 05

58503031000

Unavailable

57

RUBBER BAND

54611186000

$5.23

58

SIDE STAND RUBBER-RET.PANEL 01

58503023170

Unavailable
