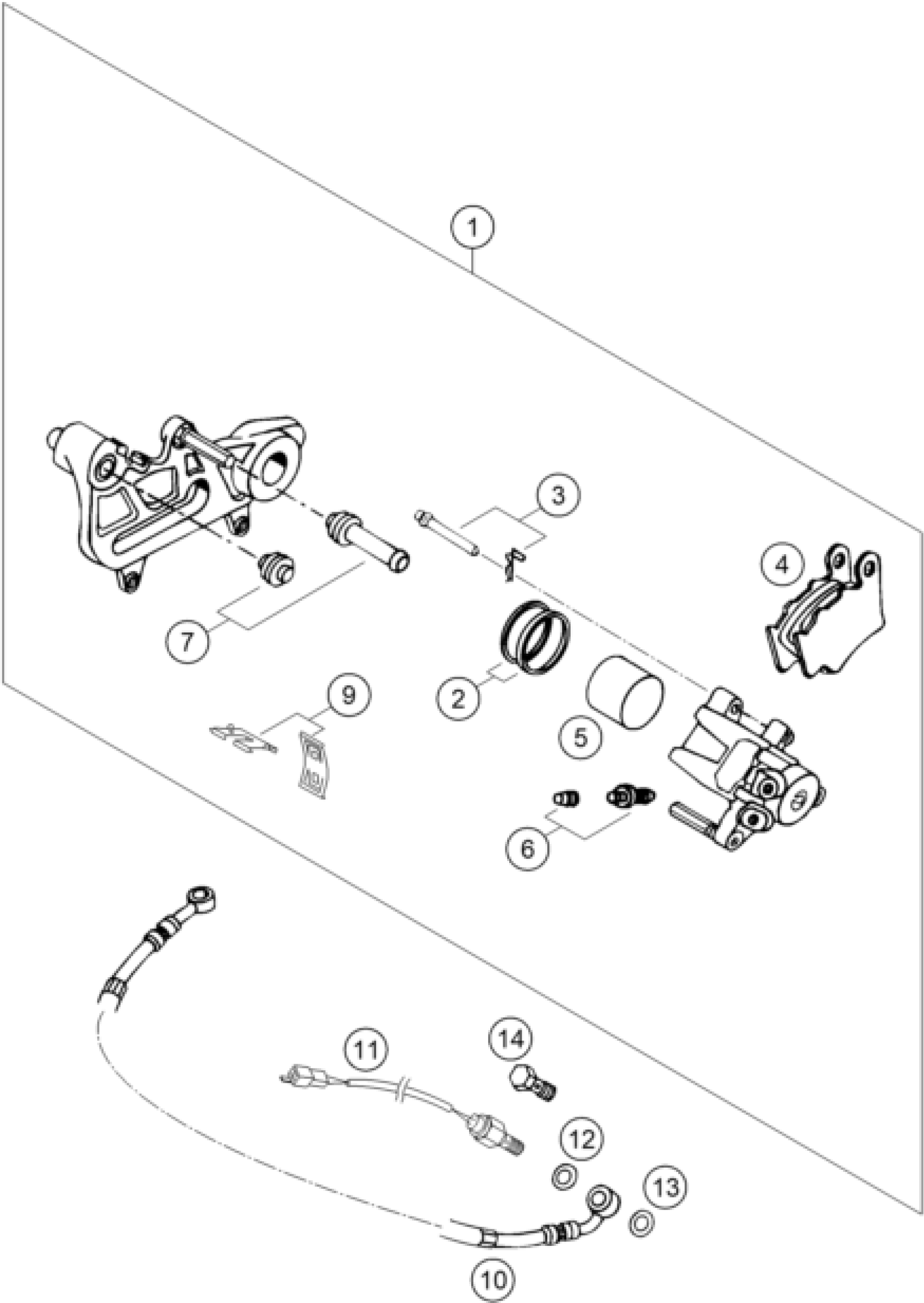

KTM 450 RALLYE FACTORY REPL. 2005 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER CPL. REAR L/S

50213301644

$234.72

2

REPAIR KIT SEALING RINGS 34MM

54613318200

$21.31

3

BOLT SET

54613310200

$22.71

4

BRAKE PAD SET FERIT ID450FF

54613309200

$41.88

5

BRAKE PISTON 34MM

54613305200

$51.14

6

BLEEDER SCREW M10X1

54513214000

$7.38

7

CUP SET SHORT

54613218000

$23.55

9

RETAINING SPRING SET

54613311200

$15.61

10

BRAKE HOSE REAR 790MM '97

58313070000

$43.48

11

BRAKE LIGHT SWITCH LONG

58511051100

Unavailable

12

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

13

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

14

HOLLOW SCREW M10X1X19

50213025000

Unavailable
