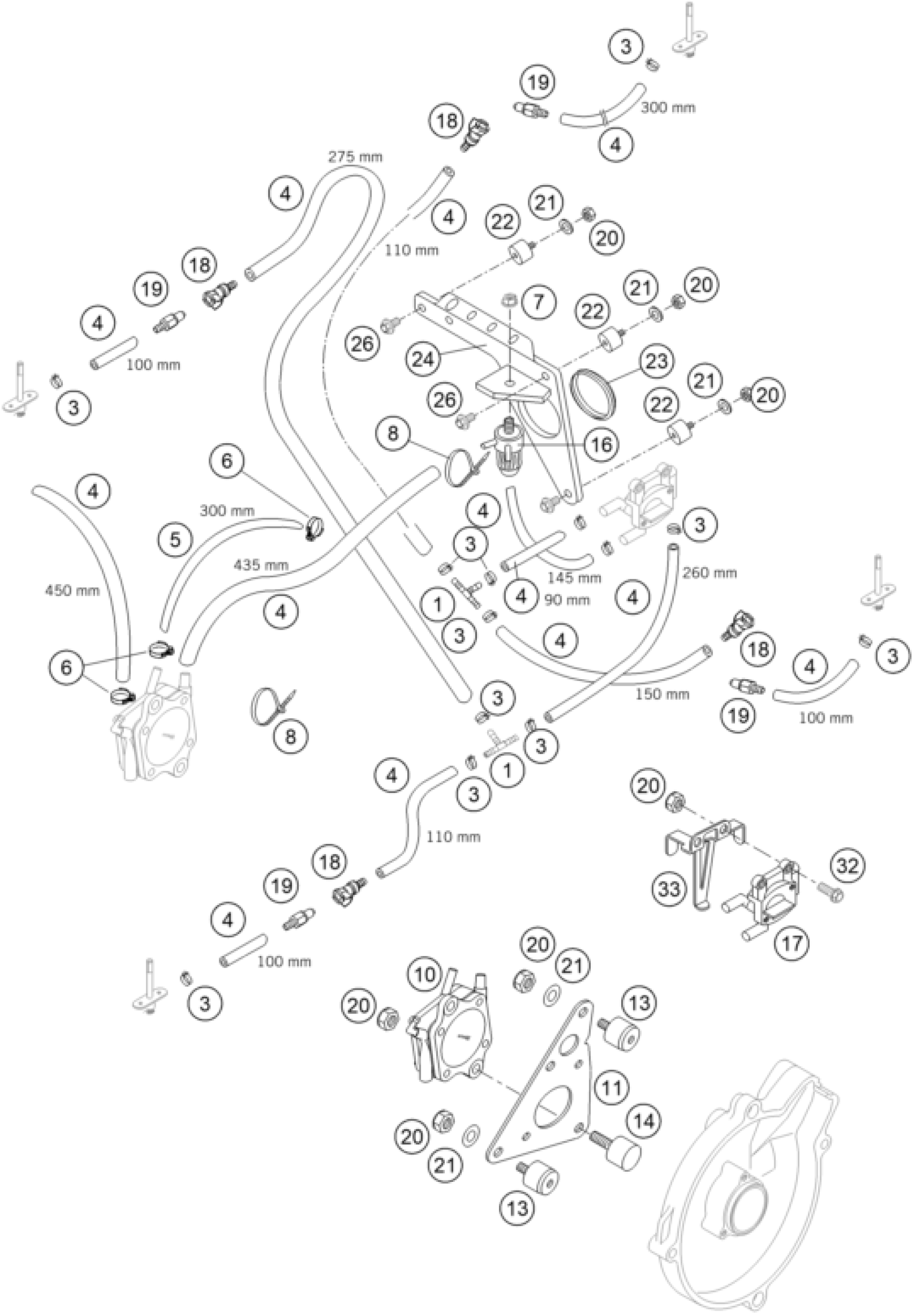

KTM 450 RALLYE FACTORY REPL. 2005 FUEL PUMP Diagram

#

Description
Price

1

T-CONNECTOR FOR FUEL LINE

58007015000

$1.49

3

CLAMP YDNAC 10128 12MM

58031005000

$3.08

4

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

5

FUEL HOSE DIN 73379 5,3X11,3

58507016100

Unavailable

6

CLAMP MINI 1

42013037000

$3.08

7

Hexagon nut DIN934 M8

0934080003

$2.05

8

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

10

FUEL PUMP MIKUNI DF52-601 01

58512087000

$136.97

11

HOLDING SHEET F. FUEL PUMP 01

58512088000

Unavailable

13

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

14

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

16

FUEL FILTER 01

58507009000

Unavailable

17

COLLECTOR FUEL TAP RALLYE 2001

58507003100

Unavailable

18

CLUTCH F. FUEL HOSE CPC 03

58507010500

Unavailable

19

PLUG F. FUEL HOSE CPC 2003

58507010300

Unavailable

20

Self lock. nut DIN985-M6-A2

0985060003

$2.05

21

Washer DIN9021-A 6.4

0021060003

$2.05

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

SLEEVE FOR STEERING HEAD

54635022000

$1.54

24

SUPPORT FOR FUEL FILTER 01

58507019000

Unavailable

26

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

33

LOCKING PLATE F. COLL.FUEL TAP

58507003050

Unavailable
