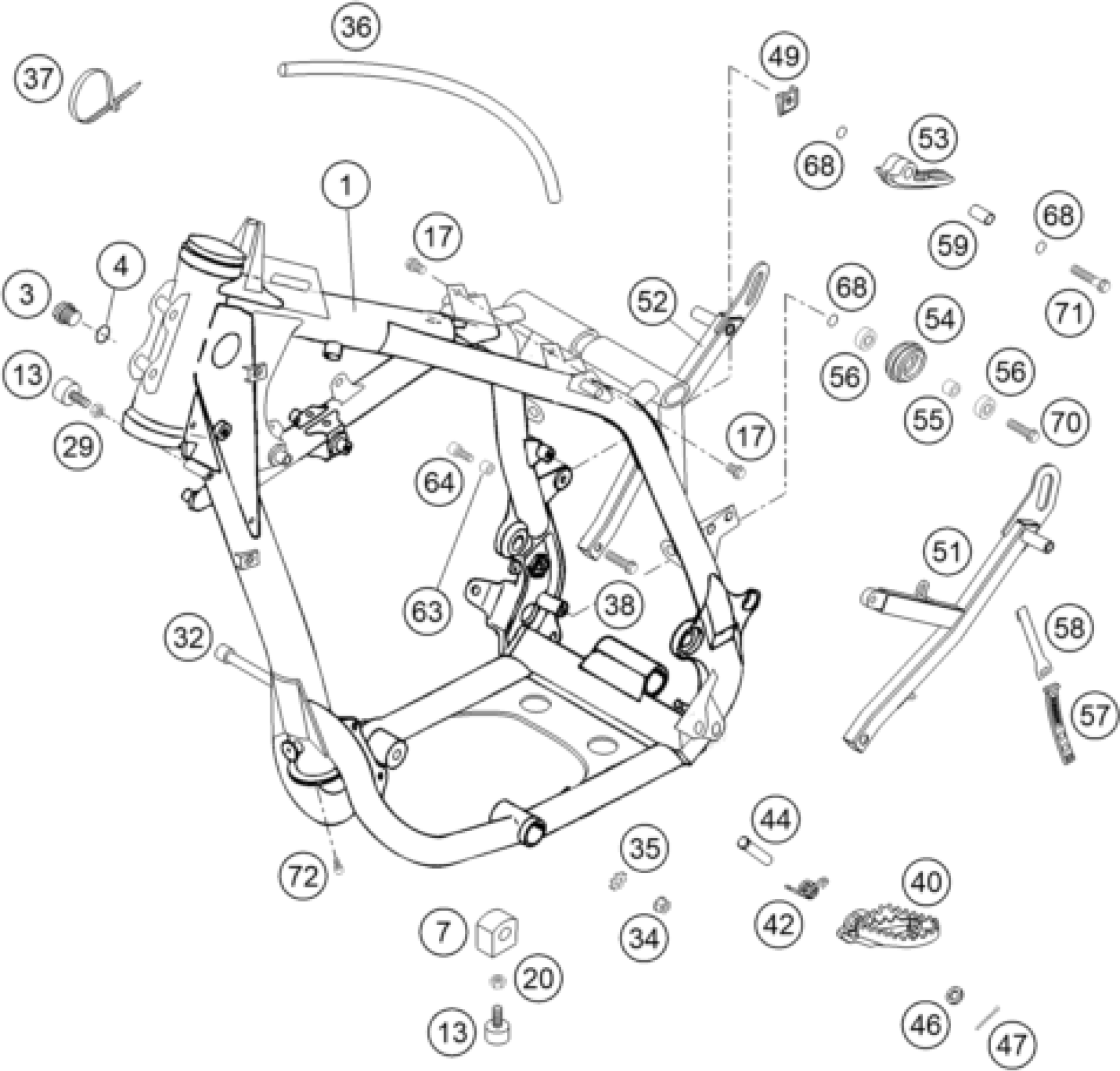

KTM 450 RALLYE FACTORY REPL. 2005 FRAME Diagram

#

Description
Price

1

5850300144490

Unavailable

3

PLUG DIN0910-M16X1,5

0910160153

$4.87

4

CU-SEAL RING 16X22X2

0603162220

$2.05

7

ENGINE PROT. BRACKET 22 2005

58503012100

Unavailable

13

STOP RUBBER M8

58303070000

$7.28

17

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

20

Hexagon nut DIN934 M8

0934080003

$2.05

29

Hexagon nut DIN934 M8

0934080003

$2.05

32

AH SCREW DIN0912-M10X160

0912101603

$6.72

34

COLLAR NUT M10 WS=13

54630044000

$1.49

35

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

36

HOSE ID 7,5 PER METER

54435024001

Unavailable

37

CABLE TIE 100/2,5MM BLACK

44011076100

$1.49

38

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

40

FOOT PEG R/S SILVER 02

59003041250

$43.66

42

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

46

washer DIN 125 A 10.5

0125100003

$2.05

47

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

49

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

51

TANK HOLDER DOWN L/S 04

58503002410

Unavailable

52

TANK HOLDER DOWN R/S 04

58503002430

Unavailable

53

CHAIN SLIDING PIECE 03

54804067000

$5.23

54

CHAIN ROLL D=35MM 125-380 '99

52303053100

$5.54

55

BUSHING 8.2 X 12 X 6

74003021000

$3.08

56

Grooved ball bearing 608 2RS C

0625006087

$21.40

57

RUBBER BAND

54611186000

$5.23

58

SIDE STAND RUBBER-RET.PANEL 01

58503023170

Unavailable

59

BUSHING 8,2X10X20

51103053051

$4.11

63

BUSHING 7X12X15,4

54305069000

$4.11

64

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

71

HH COLLAR SCREW M 8X60 WS=10

0015080603

$3.08

72

AH SCREW DIN7984-M 6X10

0984060103

$1.49
