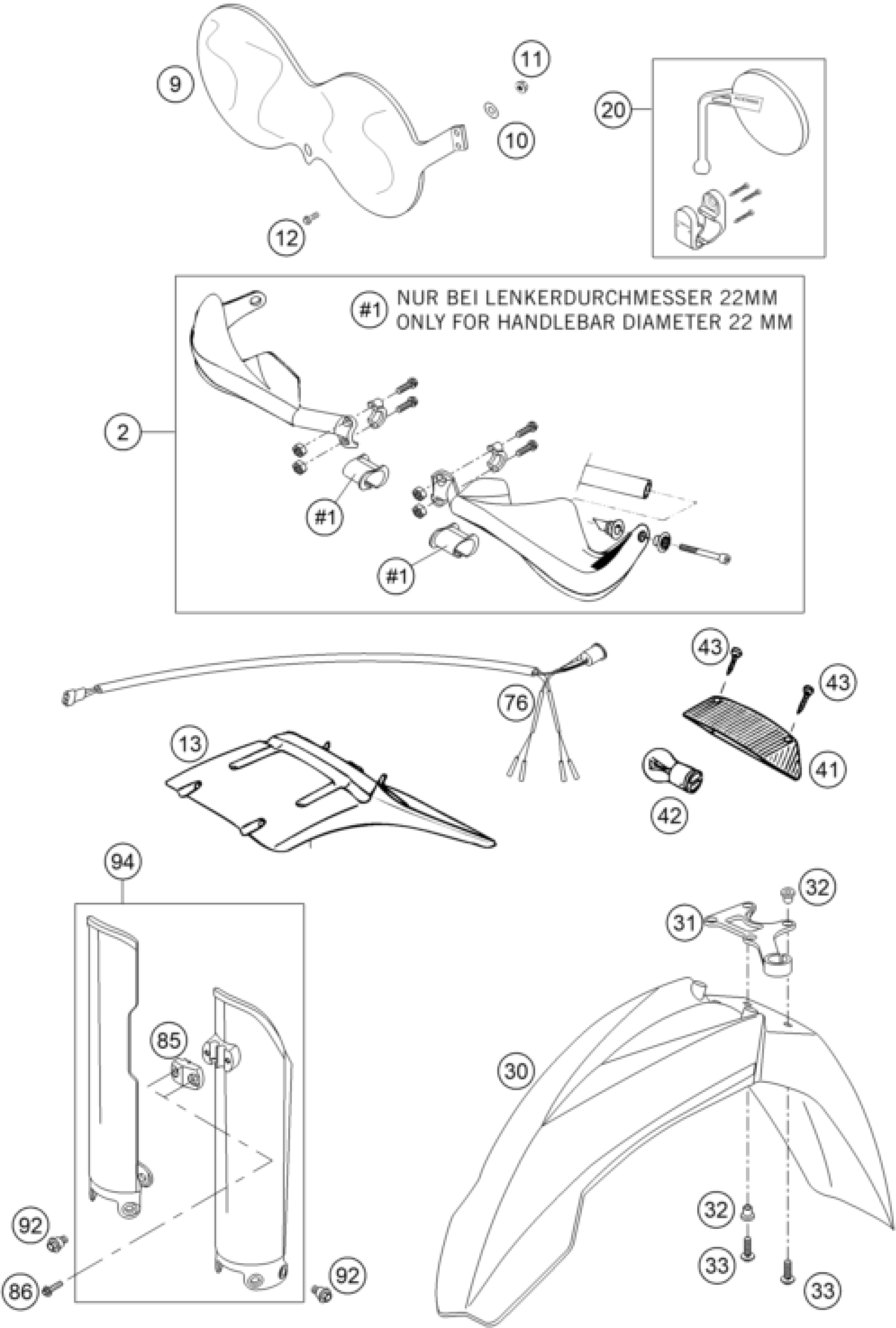

KTM 450 RALLYE FACTORY REPL. 2005 ACCESSORIES Diagram

#

Description
Price

2

HANDGUARD L/S+R/S CPL.BLCK

6000207910030

$64.59

2

HANDGUARD L/S+R/S CPL.ORANGE

6000207910004

Unavailable

9

HEAD LIGHT PROTECTOR RALLYE 01

58511009000

Unavailable

10

washer DIN 9021 A - 5.3

0021050003

$1.49

11

Self locking nut DIN 985 M5

0985050003

$2.05

12

HH SCREW DIN0933-M 5X16

0933050163

$1.49

13

NUMBER PLATE CARRIER EXC '93

58308113051

$23.26

20

MIRROR L/S BLACK ACERBIS '97

5021204000030

$22.94

20

MIRROR R/S BLACK ACERBIS '97

5021214000030

Unavailable

30

FENDER FRONT BROAD BLACK 03

5030801030030

$26.55

31

BRAKE HOSE GUIDE 2000

59008019000

$4.11

32

SPACER BUSHING FRONT FENDER

58408009050

$3.08

33

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

41

REAR LIGHT LENS ACERBIS '93

58311241000

$24.83

42

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

43

SHEET MET.SCR.DIN7981 2,9x19

0981290193

Unavailable

76

WIRING HARNESS REAR RALLYE '97

58511076000

Unavailable

85

CLAMP F.SPEED CABLE D=8MM 2001

58201085000

$1.82

86

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

92

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

94

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20
