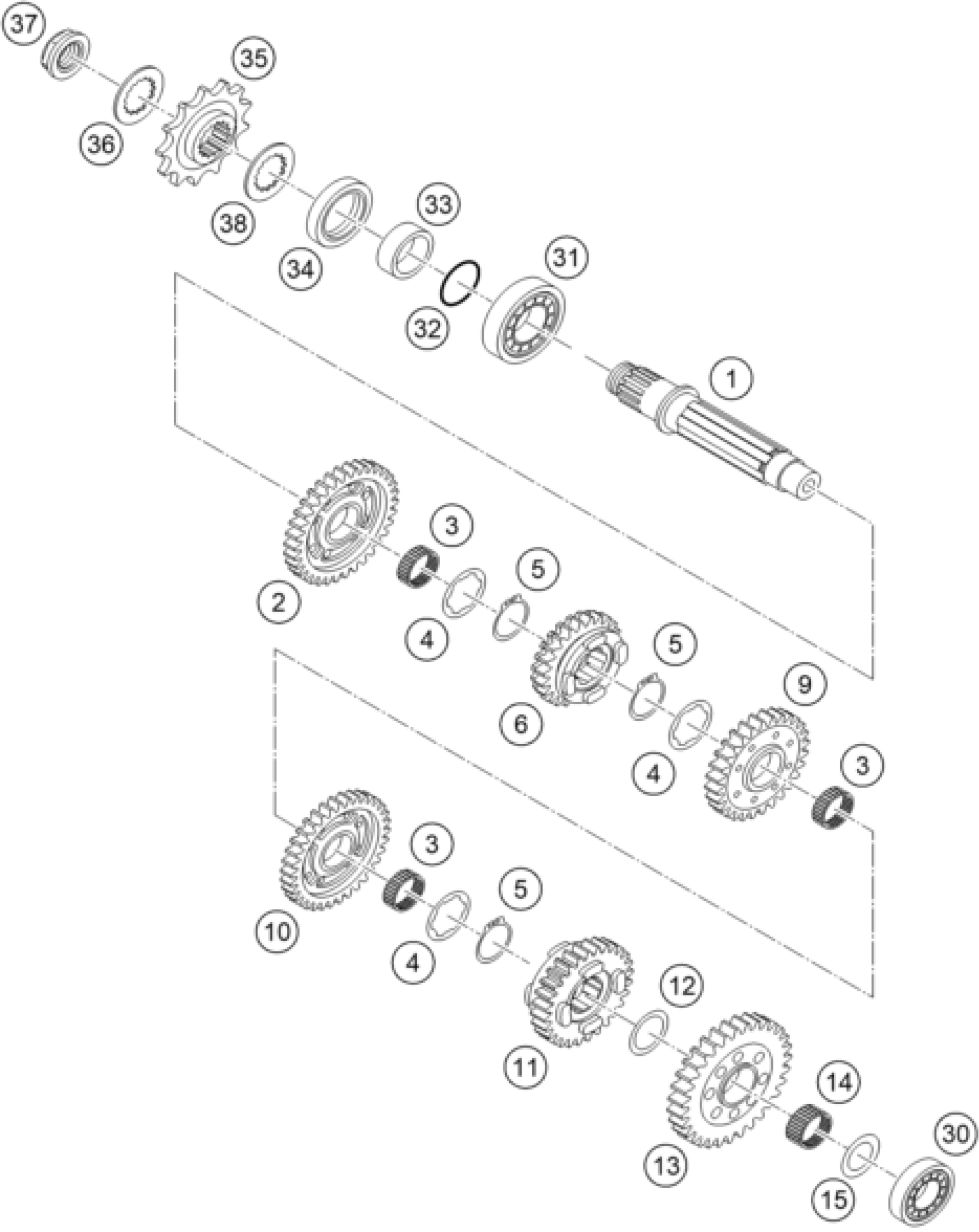

KTM 450 RALLYE FACTORY REPL. 2004 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT 05

58833010000

Unavailable

2

IDLER GEAR 2.G T=27 05

58833012000

Unavailable

3

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

4

STOP DISC 25,2X32X1,5

59033030000

$3.08

5

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

6

SLIDING GEAR 6.G T=18 05

58833016000

Unavailable

9

IDLER GEAR 4.G T=25 05

58833014000

Unavailable

10

IDLER GEAR 3.G T=24 05

58833013000

Unavailable

11

SLIDING GEAR 5.G T=19 05

58833015000

Unavailable

12

Shim 20x31.9x1

59033080000

$2.05

13

IDLER GEAR 1.G T=30 05

58833011000

Unavailable

14

NEEDLE BEARING K 20X26X12

0405202612

$10.93

15

STOP DISC 17,2X30X1

56033030000

$4.11

30

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

$53.15

31

cylindrical roller bearing NJ2

49030023000

$74.42

32

O-RING 25,00X2,00 SILICONE

0770250021

$3.08

33

SPACER BUSHING

58033017000

$28.83

34

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

35

ENGINE SPROCKET 14 T

58033029014

Unavailable

35

ENGINE SPROCKET 15 T

58033029015

Unavailable

35

ENGINE SPROCKET 16 T

58033029016

$28.79

36

locking plate

51033031000

$5.23

37

sprocket nut M20x1.5

58033032200

$15.42

38

STOP DISK 22,7 X 32 X 1,5

56533016300

$5.98
