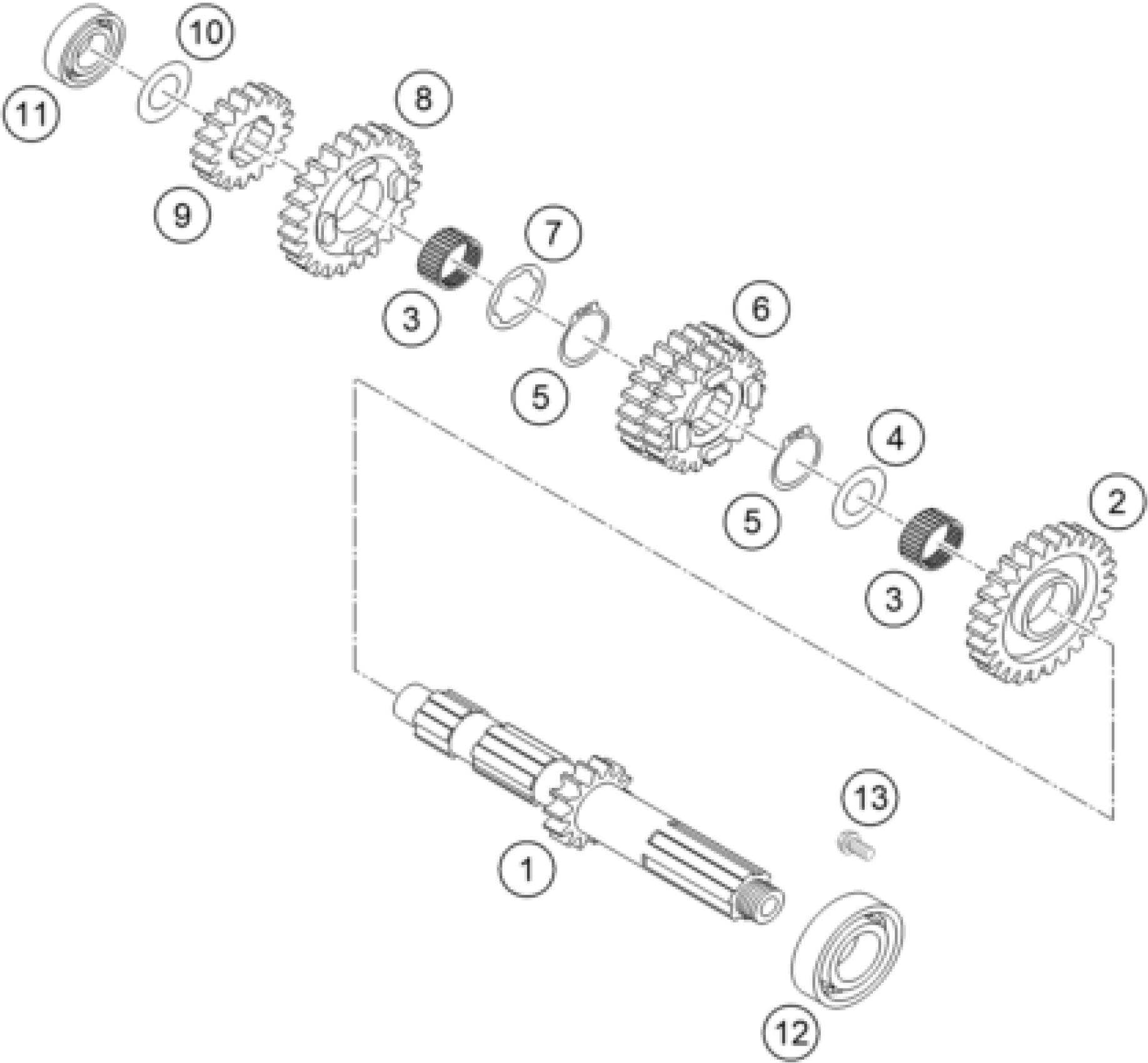

KTM 450 RALLYE FACTORY REPL. 2004 TRANSMISSION I - MAIN SHAFT Diagram

MAIN SHAFT 15T 05

58833001000

Unavailable

IDLER GEAR 5.G T=21 05

58833005000

Unavailable

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

STOP DISC 25,2X32X1,5

59033031000

$1.49

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

SLIDING GEAR 3/4G T=20/25 05

58833034000

Unavailable

STOP DISC 25,2X32X1,5

59033030000

$3.08

IDLER GEAR 6.G T=21 05

58833006000

Unavailable

SOLID GEAR 2.G T=17 05

58833002000

Unavailable

STOP DISC 17,2X30X1

56033030000

$4.11

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

$53.15

CYL.ROLL BEARING BC1-0076A

58533025000

$144.26

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
