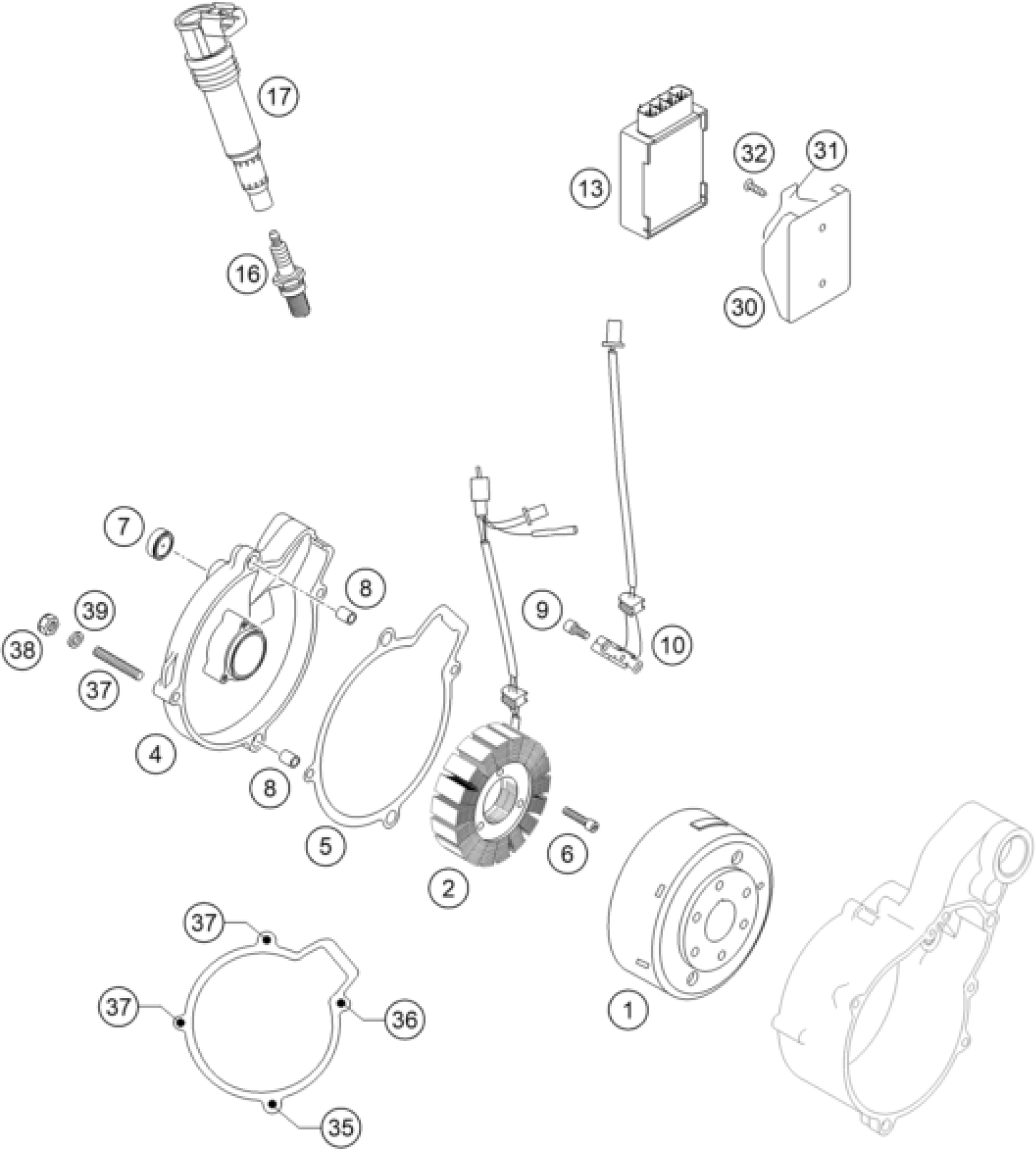

KTM 450 RALLYE FACTORY REPL. 2004 IGNITION SYSTEM Diagram

FLYWHEEL KOKUSAN GP9128 '97

58439005100

$340.33

STATOR KOKUSAN LOOSE '96

58439004000

$202.68

IGNITION COVER CPL. BLACK 04

5843000214430

$62.66

IGNITION COVER GASKET FORMED

58530040100

Unavailable

AH SCREW DIN0912-M 5X25

0912050253

$1.49

INSPECT.GLASS GW 20-7 MINERAL

58430095100

$25.05

DOWEL 9,8 X 7 X 10

49030090000

$2.05

SHCS DIN 912 M5x8

0912050083

$1.49

PULSER COIL

58439034000

$103.78

CDI-BOX 450 RALLYE 05

58839031000

Unavailable

SPARK PLUG DENSO X27ETR 05

R0539093000

Unavailable

STICK COIL (IGN.C./SPA.P.C.)01

58539006000

$296.88

RUBBER BRACKET FOR DIGI-BOX 03

58439030200

$7.25

SUPPORT FOR RUBBER BRACKET 03

58439030250

$15.51

FLAT HEAD SCREW DIN7991 M6X10

0991060103

Unavailable

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

HH COLLAR SCREW M 6X80 WS=8

0015060803

$2.05

THREAD PIN WITH SLOT M6x40

0766060400

Unavailable

Hex. nut DIN 934 M6

0934060003

$1.49

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05
