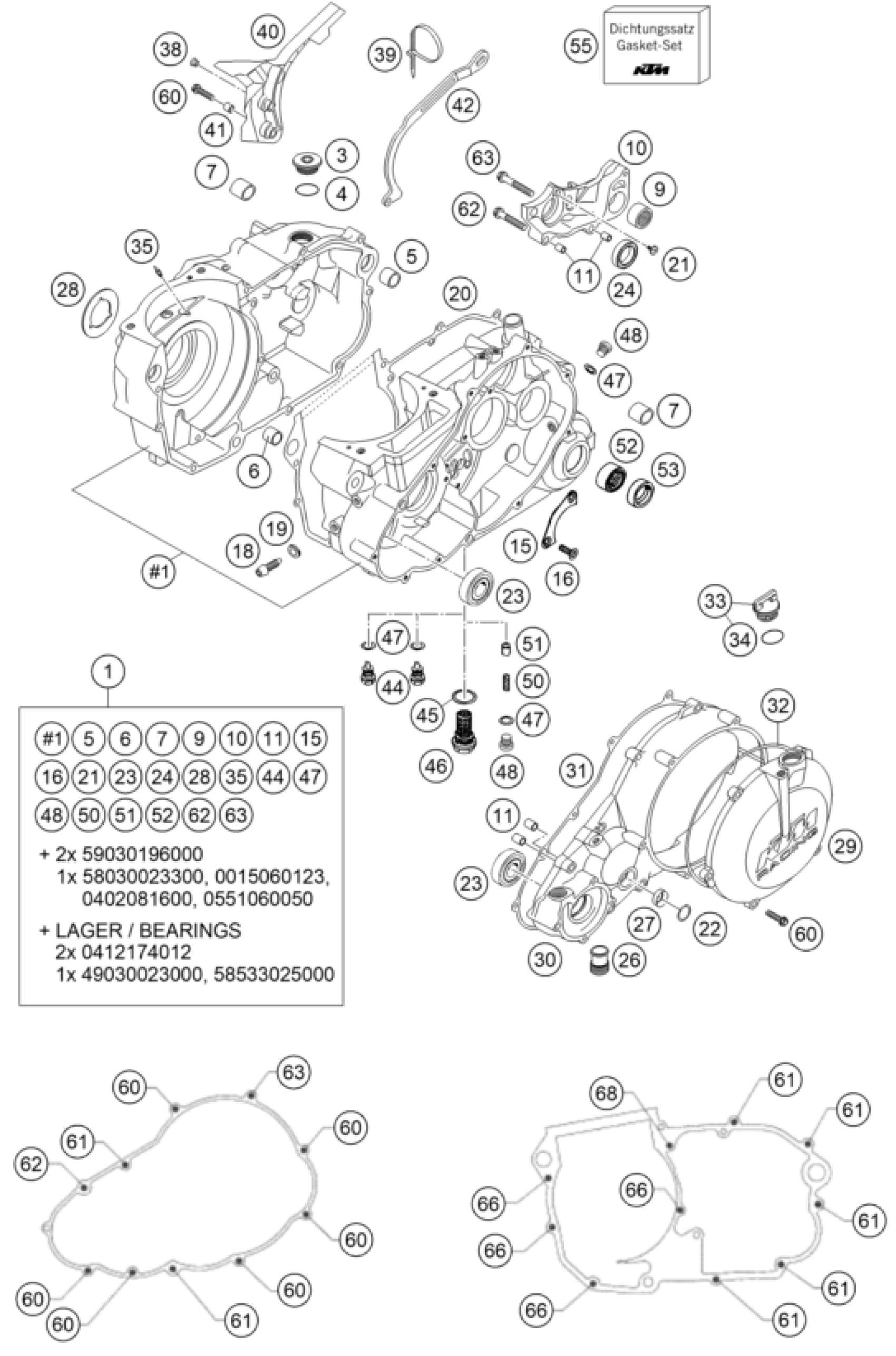

KTM 450 RALLYE FACTORY REPL. 2004 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL. W. BEAR. 05

5883000004430

Unavailable

3

PLUG VISUAL CHECK TRANSMISSION

58530088000

Unavailable

4

O-RING 20X2 VITON

0770020020

$4.11

5

DOWEL 19 X15,1X12

50130027000

$5.30

6

DOWEL 17 X 13 X 12

51030026100

$6.44

7

CRANK SHAFT BUSH RALLYE 2001

58530010000

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

$14.02

10

SHIFT MECHANISM SUPPORT 450 6G

58830011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

$2.05

15

RETAINING PLATE

56530017000

$12.03

16

FL.HEAD SCR.DIN7991-M6X16

0991060166

$1.49

18

LOCATING SCREW

58530080000

Unavailable

19

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

20

ENGI.CASE GASKET SIL C-4400

58530039200

$23.93

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49

22

LOCKRING DIN 472 20X1MM

0472200010

Unavailable

23

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

$53.15

24

BALL BEARING 61805 C3

0625618050

$43.94

26

HOSE CONNECTOR M20X1,5 SPLICE

58030010100

$8.87

27

INSPECT.GLASS GW 20-7 MINERAL

58430095100

$25.05

28

STOP DISK 33 X 58 X 1,5

58440091000

$3.73

29

CLUTCH COVER OUTS.CPL.BLACK 04

5853002600030

Unavailable

30

CLUTCH COVER BLACK 2003

5853000100030

Unavailable

31

CLUTCH COVER GASKET 2001

58530025000

$21.96

32

O-RING 165X2,4 2001

0770165024

Unavailable

33

oil plug cpl. M24x3

58030020100

$5.23

34

O-RING 19,00X3,00 NBR

0770191015

$2.05

35

OIL JET 70 M6X0,75 WS8 03

60030064070

$11.49

38

PLASTIC CAP SFL10

54403135000

$2.05

39

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

40

SPROCKET COVER RALLYE 2001

58530060000

Unavailable

41

BUSHING 6,5X8X11

54613038150

$4.11

42

CHAIN DAMPERSHEET 16/17T RAL.

58530047000

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

45

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

46

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

47

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

48

threaded plug DIN 908 M12x1.5

0908120153

$4.11

50

OIL PRES.SPRING 5 BAR RED 2001

58538023000

$7.94

51

VALVE PISTON D=10MM

58038028000

$37.77

52

NEEDLE BEARING RNA 4903

58033090000

$27.18

53

SHAFT SEAL RING 22X32X7 BSL

0760223270

$8.50

55

GASKET SET 660 RALLYE 03

58530399100

Unavailable

60

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

61

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

62

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

63

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

66

HH COLLAR SCREW M 6X55 WS=8

0015060553

$1.49

68

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.05
