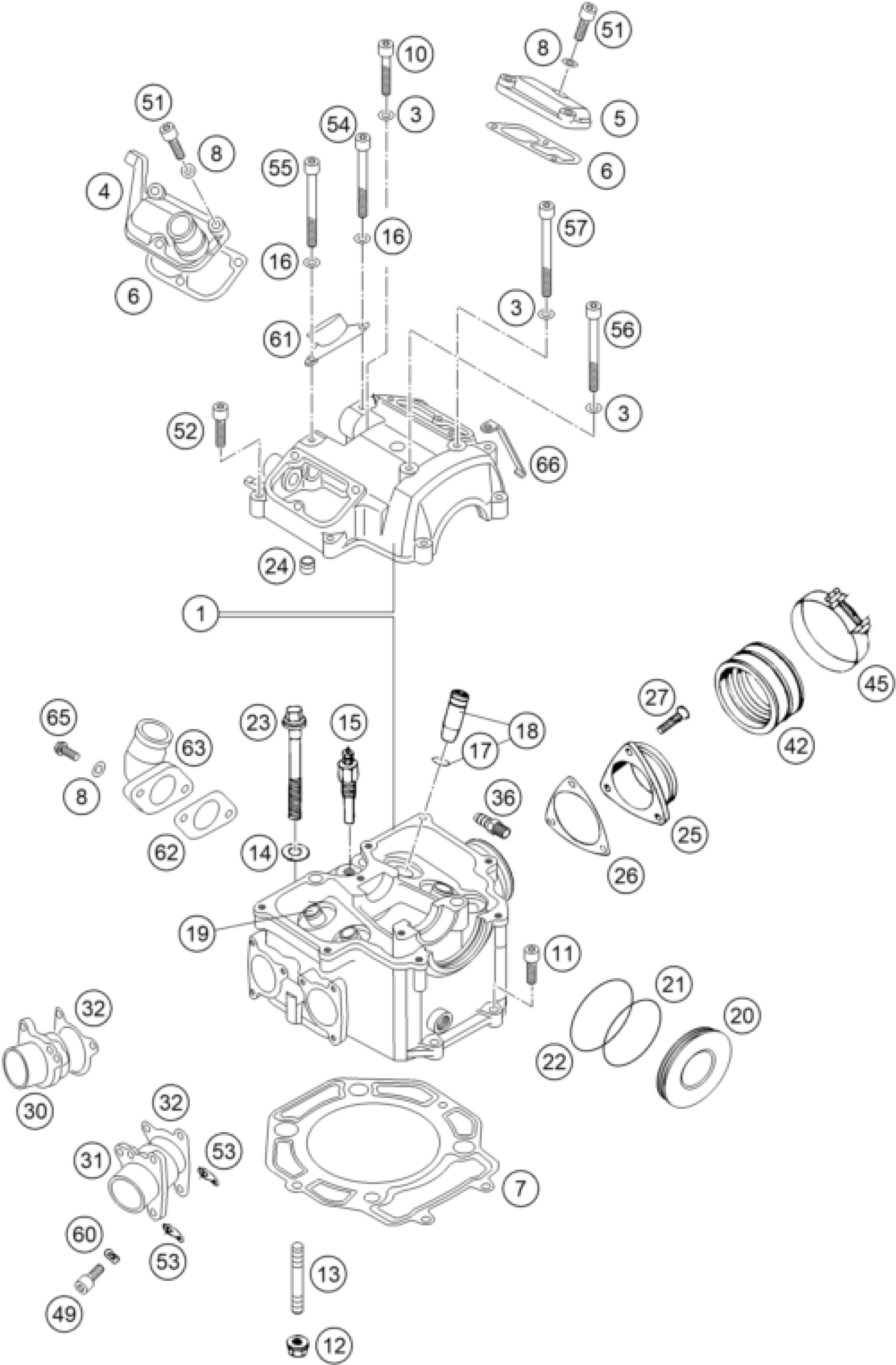

KTM 450 RALLYE FACTORY REPL. 2004 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL. BLACK 05

5883602000030

Unavailable

3

CU-SEAL RING 6 X 10 X 2

58036065100

$2.05

4

VALVE COVER FRONT '99

58036152600

$27.38

5

VALVE COVER REAR

58036052000

$36.15

6

VALVE COVER GASKET

58036053000

$4.11

7

CYLINDER HEAD GASKET D=89

58830036000

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

10

AH SCREW DIN0912-M 6X35

0912060353

$2.05

11

AH SCREW DIN0912-M 6X25

0912060253

$2.05

12

COLLAR NUT M8

49030028000

$3.08

13

STUD DIN0835-M 8X40

54330043000

$4.35

14

washer DIN 125 A 10.5

0125100003

$2.05

15

TEMPERATURE SWITCH VDO

42011252000

$84.53

16

CU-SEAL RING DIN7603- 7X12X2

0603070122

$2.05

17

CIRCLIP DIN7993-RW12

0993012000

$3.08

18

VALVE GUIDE INTAKE CPL.

58036026644

$13.94

19

VALVE GUIDE EXHAUST CPL.

58036126644

$22.15

20

PLUG COVER 2001

58536065000

Unavailable

21

O-RING 47,00X1,50 NBR 70

0770047015

$1.49

22

O-RING 49,00X2,50 NBR

0770049025

$3.08

23

COLLAR SCREW M10X80 WS=13 10.9

58036099100

$10.46

24

DOWEL BUSHING 9,8X7,2X10

58530090000

$2.05

25

INTAKE FLANGE D=40MM

58136042040

Unavailable

26

INTAKE FLANGE GASKET

58136043000

$3.08

27

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

30

EXHST FLANGE TITAN R/S 03

57305007002

Unavailable

31

EXHST FLANGE TITAN L/S 03

57305007001

Unavailable

32

EXHAUST FLANGE GASKET

58036041000

$4.11

36

VACUUM CONNECTION M 6X1

58336020090

$6.63

42

INTAKE BOOT RALLYE 2001

58536044000

$37.11

45

CLAMP D=56MM B=9MM M4X25

59030061000

$5.23

49

AH SCREW DIN0912-M 6X16

0912060163

$1.49

51

AH SCREW DIN0912-M 6X20

0912060203

$2.05

52

AH SCREW DIN0912-M 6X25

0912060253

$2.05

53

RETAINING PLATE

51005074000

$3.08

54

AH SCREW DIN0912-M 7X55 12.9

0912070553

$7.38

55

AH SCREW DIN0912-M 7X60 12.9

0912070603

$5.80

56

SHCS DIN 912 M6x65

0912060653

$2.05

57

AH SCREW DIN0912-M 6X70

0912060703

$1.49

60

spring washer DIN 137 B - 6

0137060003

$2.05

61

STICK COIL HOLDER 2001

58539010000

Unavailable

62

GASKET FOR CONNECTING ANGLE

56535106000

Unavailable

63

CONNECTING ANGLE

56535006000

$28.38

65

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

66

RETAINING PLATE

58530005050

Unavailable
