Description

Price

1

CRANKSHAFT CPL. 450 RALLYE 05

58830018000

Unavailable

2

58830015044

Unavailable

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

9

CYL.ROLLER BEAR. NJ 207 ECP C3

56530123000

$90.13

10

SHAFT SEAL RING 30X40X7 BSL

0760304071

Unavailable

15

STEEL WASHER 16 X 30 X 3

58330095000

$2.73

16

HEX NUT M16x1,25 L/S

58430028000

$7.48

21

LOCKING RING VSK 20

58030019000

$1.73

22

HH NUT M20X1,5 WS=27 RIGHT

59030029000

$8.87

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

30

PISTON D=89 05

58830007000

Unavailable

40

RECTANGULAR RING 89MM

57530032000

$45.99

41

OIL SCRAPER RING 89/81,5X3

59530031000

$24.77

44

58830033000

Unavailable

45

58830074000

Unavailable

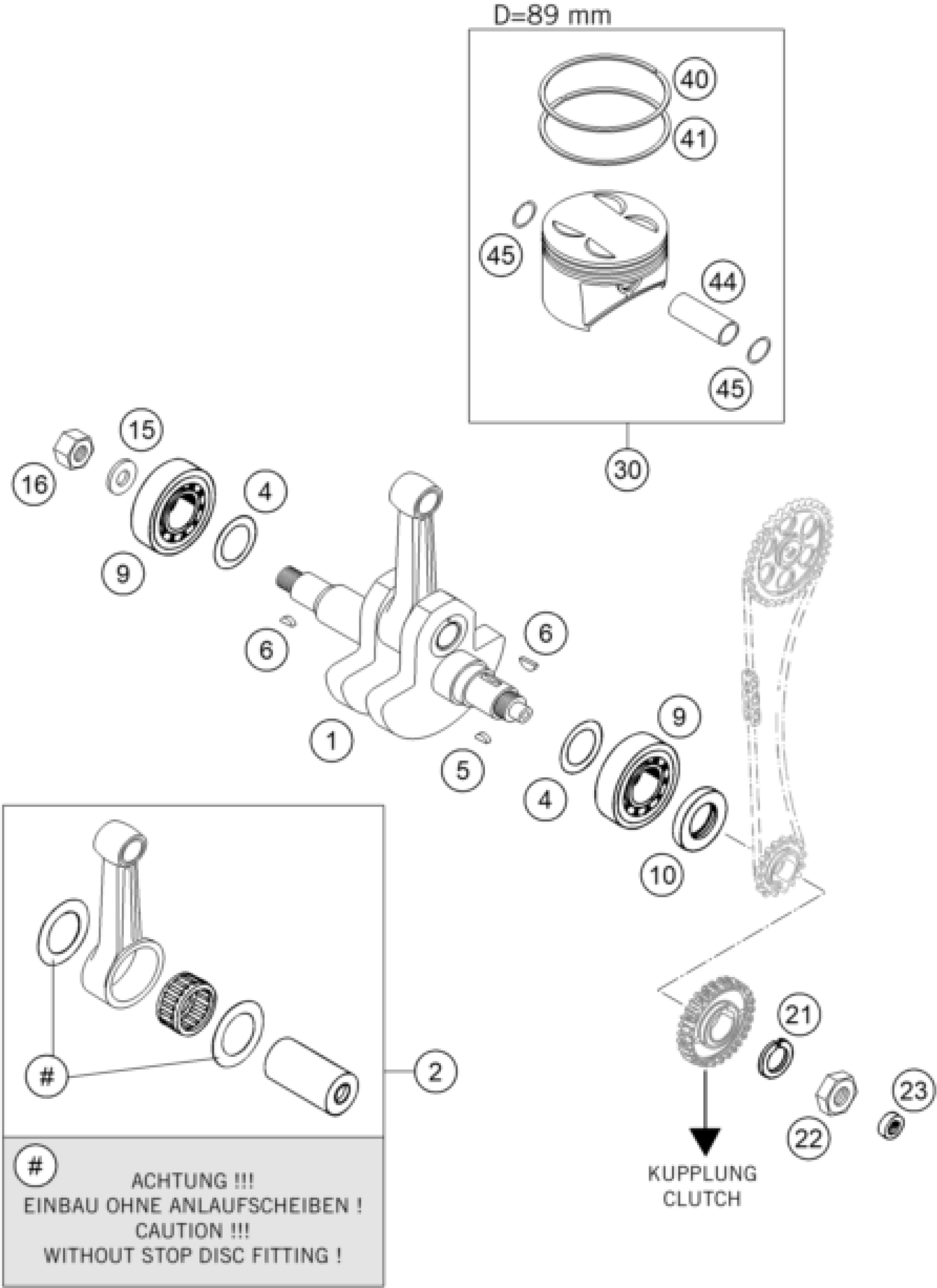

KTM 450 RALLYE FACTORY REPL. 2004 CRANKSHAFT, PISTON Diagram

CRANKSHAFT CPL. 450 RALLYE 05

SHIM WASHER 36X48X0,10

SHIM WASHER 36X48X0,15

SHIM WASHER 36X48X0,30

WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY 5X6,5 HARDED

CYL.ROLLER BEAR. NJ 207 ECP C3

SHAFT SEAL RING 30X40X7 BSL

STEEL WASHER 16 X 30 X 3

HEX NUT M16x1,25 L/S

LOCKING RING VSK 20

HH NUT M20X1,5 WS=27 RIGHT

SHAFT SEAL RING 12 X 22 X 7 B

PISTON D=89 05

RECTANGULAR RING 89MM

OIL SCRAPER RING 89/81,5X3
