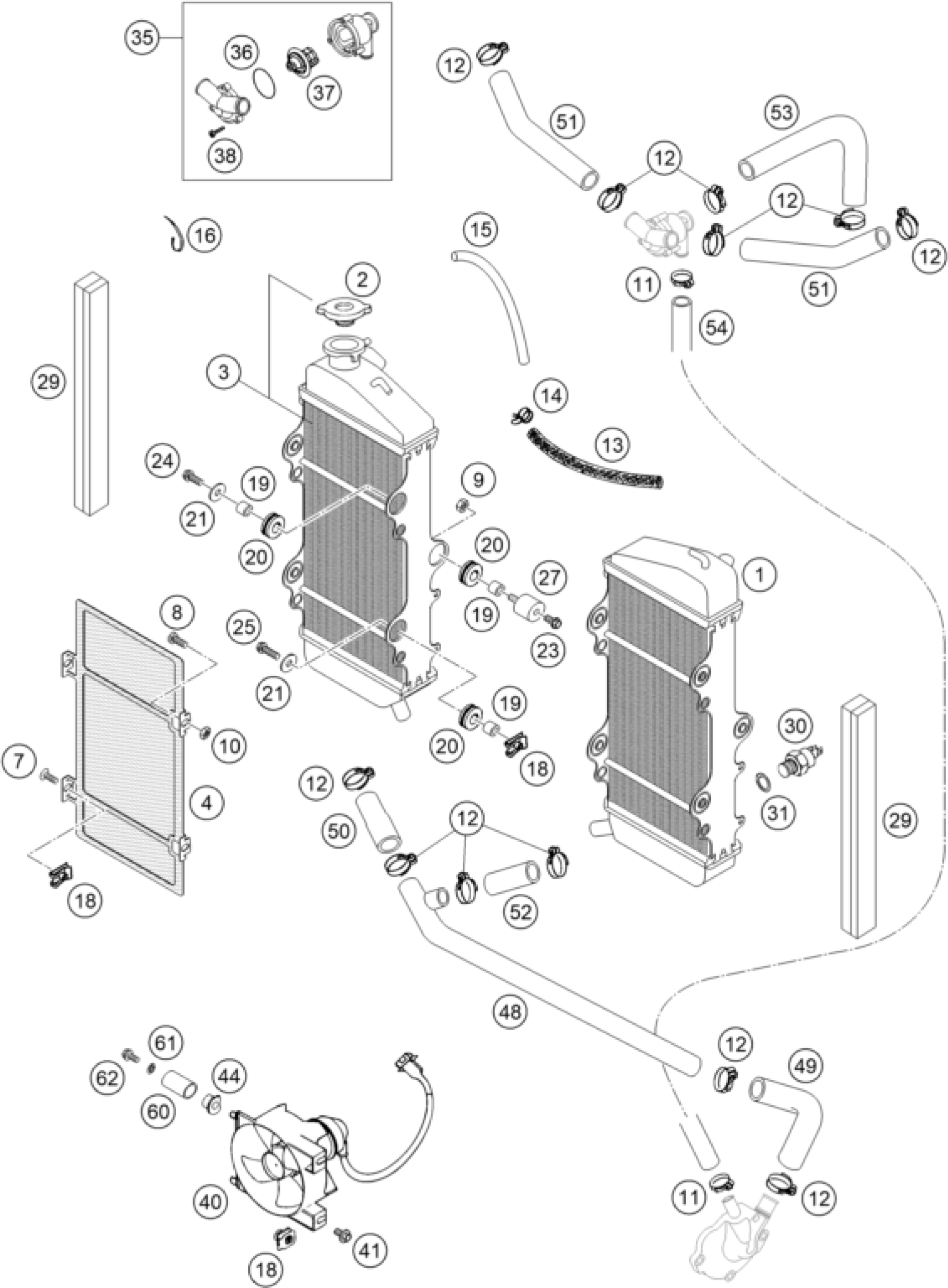

KTM 450 RALLYE FACTORY REPL. 2004 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S RALLYE 2001

58535007000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

$25.70

3

RADIATOR R/S RALLYE 2001

58535008000

Unavailable

4

RADIATOR PROTECTOR CPL. R/S 01

58503008000

Unavailable

4

RADIATOR PROTECTOR CPL. L/S 01

58503007000

Unavailable

7

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

8

PLASTIC-SCREW M6X16 MM

0085060160

Unavailable

9

Self lock. nut DIN985-M6-A2

0985060003

$2.05

10

Hex. nut DIN 934 M6

0934060003

$1.49

11

HOSE CLAMP GEMI 10-16

58335099000

$4.11

12

HOSE CLAMP GEMI 18-29

10001020000

$2.05

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

$3.08

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

18

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

19

BUSHING 6,5X11,2X10

58011039100

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

$4.11

21

Washer DIN9021-A 6.4

0021060003

$2.05

23

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

24

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

27

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

29

FOAM RUBBER STRIP

58107011000

$5.63

30

THERMOSWITCH 80-85 DG

58035045000

$37.95

31

ALU SEALRING DIN7603-14X20X1,5

0603142015

$2.05

35

THERMO.CASE CPL.55 DEGREES 05

58535013044

Unavailable

36

O-RING 32,00X2,00

0770320020

$2.05

37

THERMOSTAT 55 DEGREES '94

54635017000

$51.00

38

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

40

FAN CPL. WITH HOUSING L/S 05

58535041044

$127.65

40

FAN CPL. WITH HOUSING R/S 05

58535141044

Unavailable

41

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

44

PLASTIC CAP

44106018000

$1.49

48

ALU TUBE 18X22 RADIA.D./WAPU

58535020008

Unavailable

49

PREFORMED H.90°CURVE TUBE/WAPU

58535020007

Unavailable

50

PREFORMED H. 18X25/21X28 50MM

58535020005

Unavailable

51

PREFORMED HOSE 30°CURVE 18X25

58535020004

Unavailable

52

PREFORMED H.18X25/50 RAD.D-ALU

58535020006

Unavailable

53

PREFORMED H. 90°CURVE 18X26 01

58535020002

Unavailable

54

RADIATOR HOSE 12 X 3 MM

58035024001

Unavailable

60

RADIATOR BUSHING 2001

58535050000

Unavailable

61

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

62

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08
