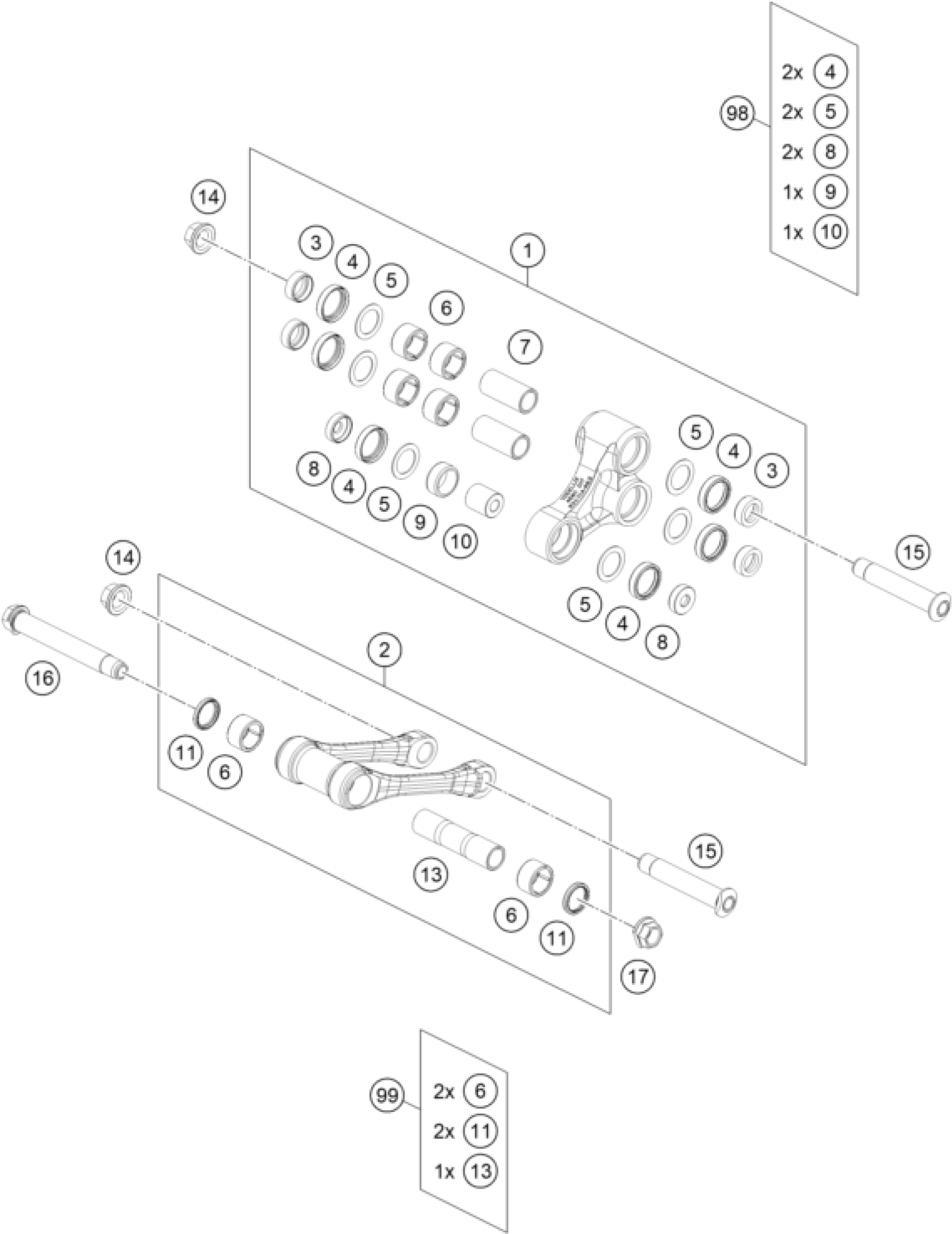

KTM 450 RALLY REPLICA `Sanders Edition` 2026 PRO LEVER LINKING Diagram

#

Description
Price

1

Triangle lever cpl.

A58004080144

Unavailable

2

Pull rod preass.

A36004083044

Unavailable

3

Support f. shaft seal ring 16

77704034000

$13.46

4

radial shaft seal 25x32x7

0760253270

$6.63

5

STOP DISK 22,2X31,7X1

54603036000

$3.08

6

NEEDLE BEARING HK 2216

58033097000

$14.02

7

Bearing sleeve 17x22x48

0800001704800

$6.35

8

Bucket for shaft seal ring

A46004134000

$5.23

9

Needle bushing HK2212V 22/28/1

0618222812

$9.81

10

Bearing sleeve 10x22x24.5

0800001002501

$5.51

11

Radial shaft seal G22x28x4

0760222841

$4.11

13

Bearing sleeve for pull rod

0800001708900

$12.80

14

Nut with flange M16X1,5 WS=19

54804038000

$2.05

15

Triangle cantilever pin M16x1.

A46004085100

$40.66

16

pin pull rod M16x1,5

A46004084000

$58.90

17

Hex nut flange M16x1.5 SW19

0910001601300

$2.05

98

repair kit triangular cenitlev

A46004080010

Unavailable

99

repair kit pull rod

A46004083010

Unavailable
