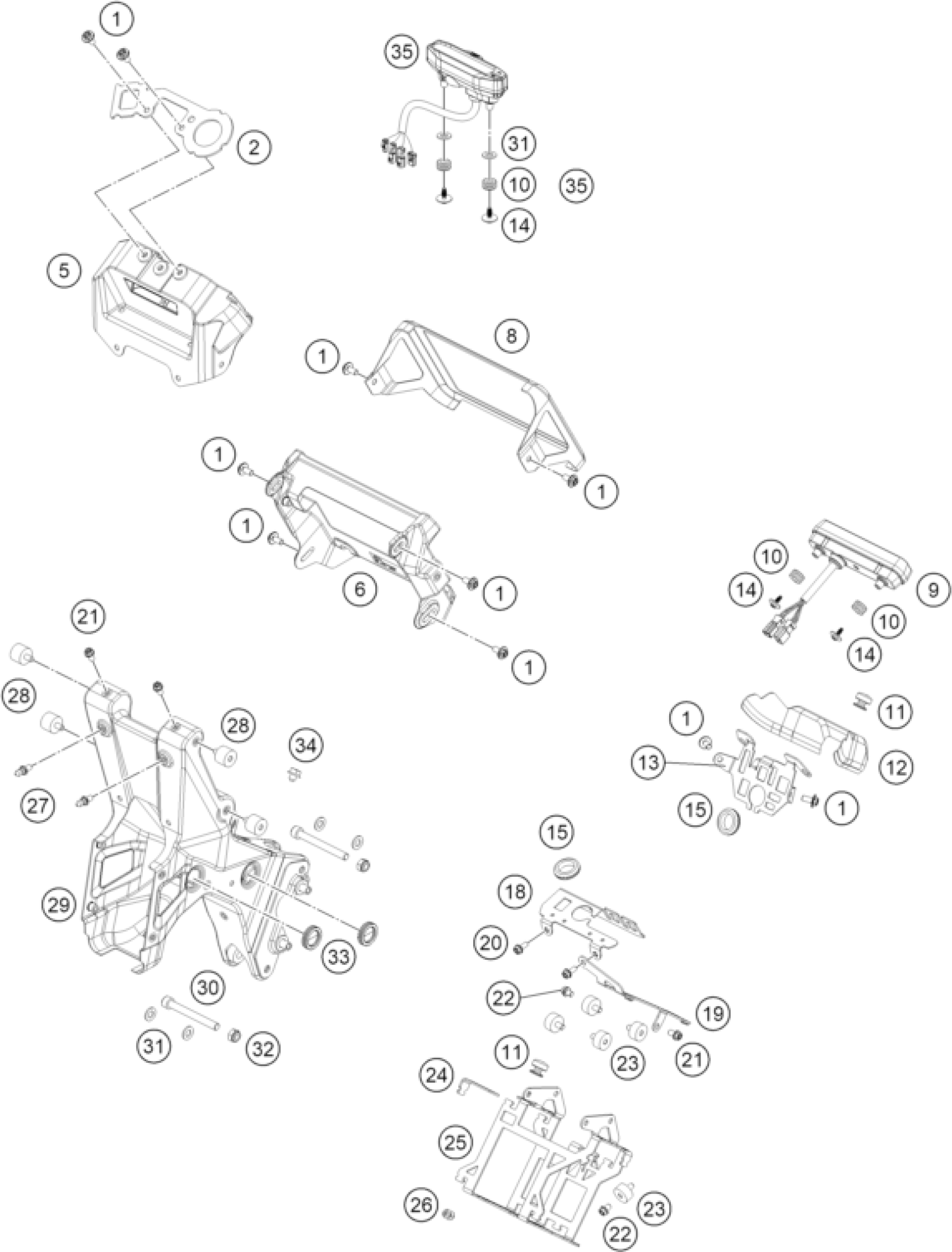

KTM 450 RALLY REPLICA `Sanders Edition` 2026 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

HH collar screw M6x13 TX30

0024060136

$3.08

2

Antenna bracket

A58012090760

Unavailable

5

Antenna bracket cmpl.

A58012090750

Unavailable

6

Carrier for roadbook bracket

A58012090700

Unavailable

8

Carrier for roadbook bracket u

A58012091500

Unavailable

9

Combination LED display

A58012060000

Unavailable

10

rubber grommet D=8mm open

31008060000

$2.05

11

Knurled handle

76406006001

Unavailable

12

Cover connector support

A58011084500

Unavailable

13

Connector support cmpl.

A58011083500

Unavailable

14

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

15

Rubber grommet D30x7.2

0650003002500

Unavailable

18

Connector support cmpl.

A58011083550

Unavailable

19

Iritrack remote control bracke

A58012084550

Unavailable

20

HH collar screw M5x12 TX30

0025050126

$3.08

21

HH collar screw M6x10 TX30

0025060106

$3.08

22

HH collar screw M6x8 TX30

0025060086

$2.05

23

Silent block 20x10 M6x10

63503090017

Unavailable

24

Iritrack closure bracket

A58012084130M01

Unavailable

25

Iritrack bracket cmpl.

A58012084500

Unavailable

26

O-ring 6x4

0036010640000

Unavailable

27

Quick lock pin M6

A58007058030

Unavailable

28

RUB. GROM. 25X15XTYP B CPL.

76212092031

Unavailable

29

dashboard support

A58014060700

Unavailable

30

Cap head screw DIN912 M8X75 10

0912080756

Unavailable

31

washer DIN 125 A -8.4

0125080003

$1.49

32

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

33

Rubber grommet d24

76712069090

Unavailable

34

Plug-in base

76711094010

Unavailable

35

Speedometer digital km/h f. 21

77714069600

$254.31
