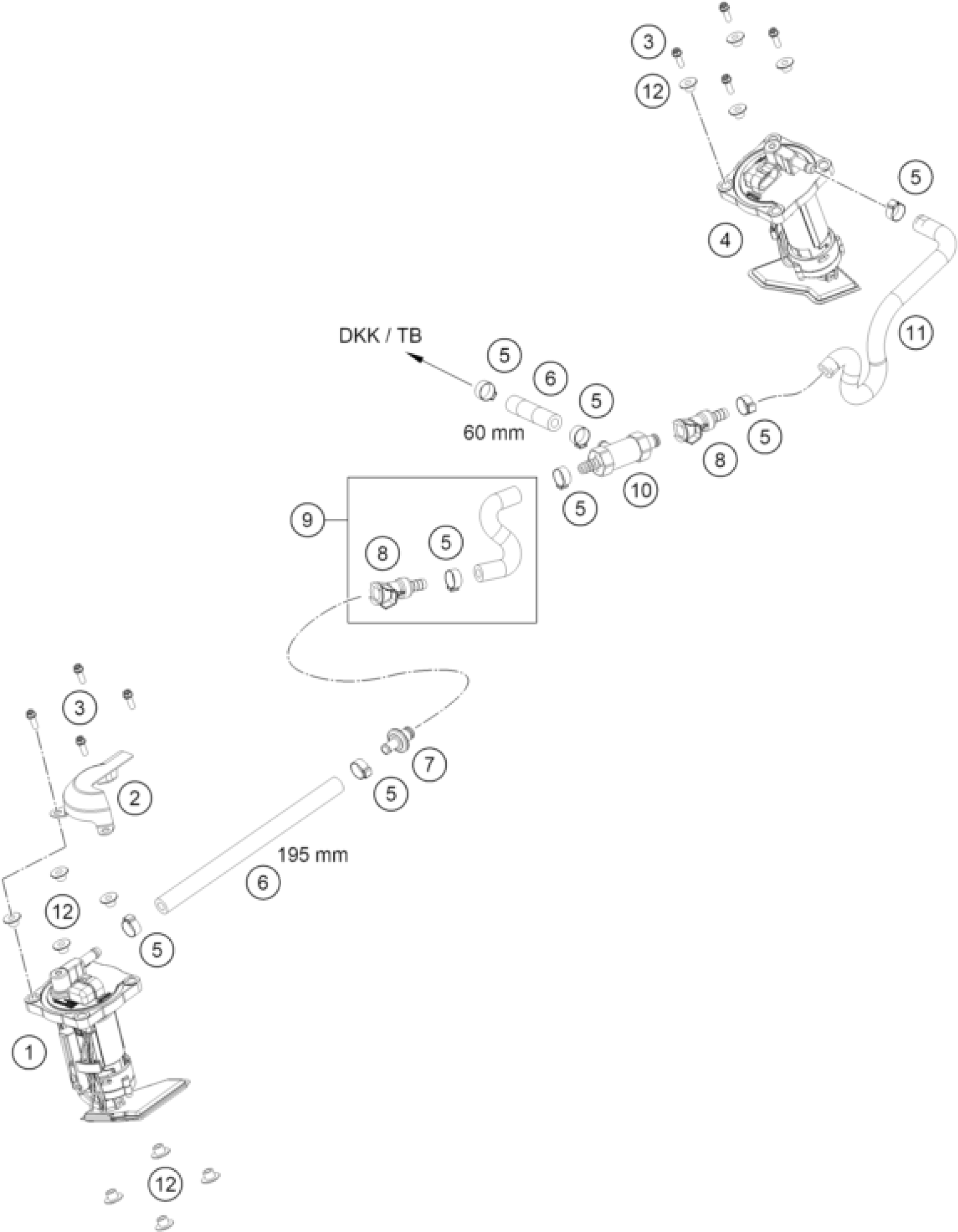

KTM 450 RALLY REPLICA `Sanders Edition` 2026 FUEL PUMP Diagram

#

Description
Price

1

Fuel pump front

A58007089000

Unavailable

2

Protection cap, fuel pump

A58007088010

Unavailable

3

Hex collar screw, M5x20 ISA30

0025050206S

$1.49

4

Fuelpump rear

A58007088000

Unavailable

5

Variable one-ear clamp 15.7mm

00050157706

$5.23

6

Fuel hose 7.5x3.5 per m.

60007316001

Unavailable

7

Fuel connection

77707010000

$15.14

8

Clutch CPC PLCD17005, black

5850701050030

$55.90

9

FUEL HOSE CPL.

62607016044

$54.13

10

Fuel valve

A58007031000

Unavailable

11

Pre-formed fuel hose, fuel tan

A58007016010

Unavailable

12

BUSHING

76408001004

Unavailable
