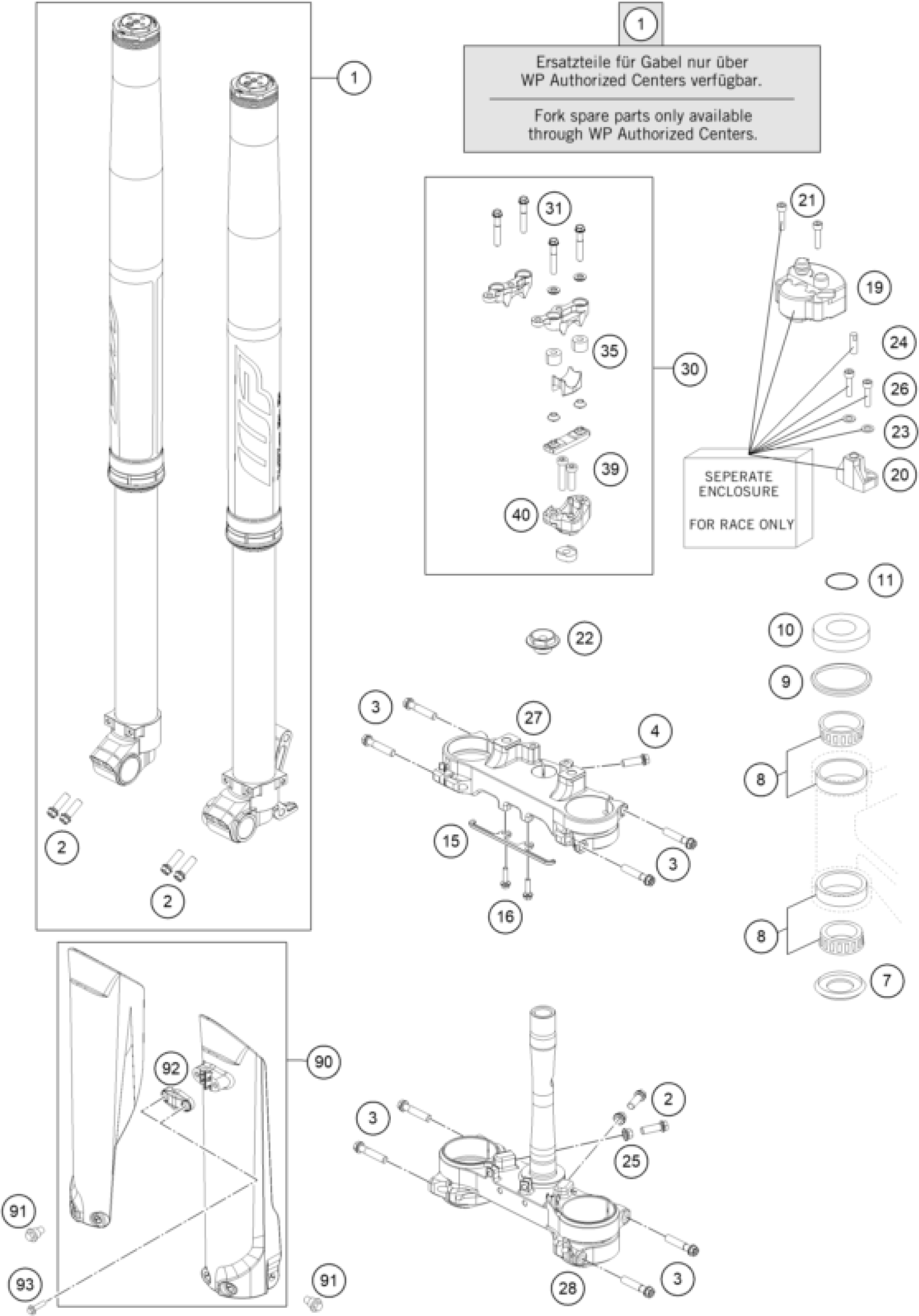

KTM 450 RALLY FACTORY REPLICA 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

fork 450 Rally-Replica Factory

14182S4001

$3,354.32

2

HH collar screw M8x25

0025080256

$2.05

3

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

4

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

7

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

8

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

9

STEARING HEAD GASKET TOP

54601184000

$7.10

10

STEER HEAD COV SHORTENED BLK

7620108600030

$17.85

11

O-RING 25X3,55 NBR70 05

0770025035

$1.49

15

Cable holder

76701045000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

$3.08

19

STEERING DAMPER

58512050100

$473.44

20

STEERING DAMPER BRACKET CPL 07

76203001079

Unavailable

21

AH SCREW DIN0912-M 6X25

0912060253

$2.05

22

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

23

Pair of washers M6 NORDLOCK

50233041000

$4.11

24

PIN F.STEERING STAB. 8MM 05

58502006100

Unavailable

25

flanged nut M8 WS10

46030045000

$7.85

26

AH SCREW DIN0912-M 6X12

0912060123

$3.08

27

Fork bridge above x= 22mm

7670103402204

Unavailable

28

Bottom triple clamp X=22 mm cp

7670103202204

Unavailable

30

Handlebar mount Rally cmpl.

76702004033

Unavailable

31

HH COLLAR SCREW M 8X45 WS=10

0015080453

$2.05

35

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

35

ELASTOMER YELLOW/MEDIUM

SXS05125204

$32.29

35

ELASTOMER RED/HARD

SXS05125205

Unavailable

39

AH SCREW DIN0912-M10X25 10.9

0912100256

$4.11

39

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

40

BASE SUPPORT

SXS07125206

$34.85

90

FORK PROTECTION SET

7770109410028

$28.13

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

CLAMP BRAKE HOSE

7770108510028

$5.23

93

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08
