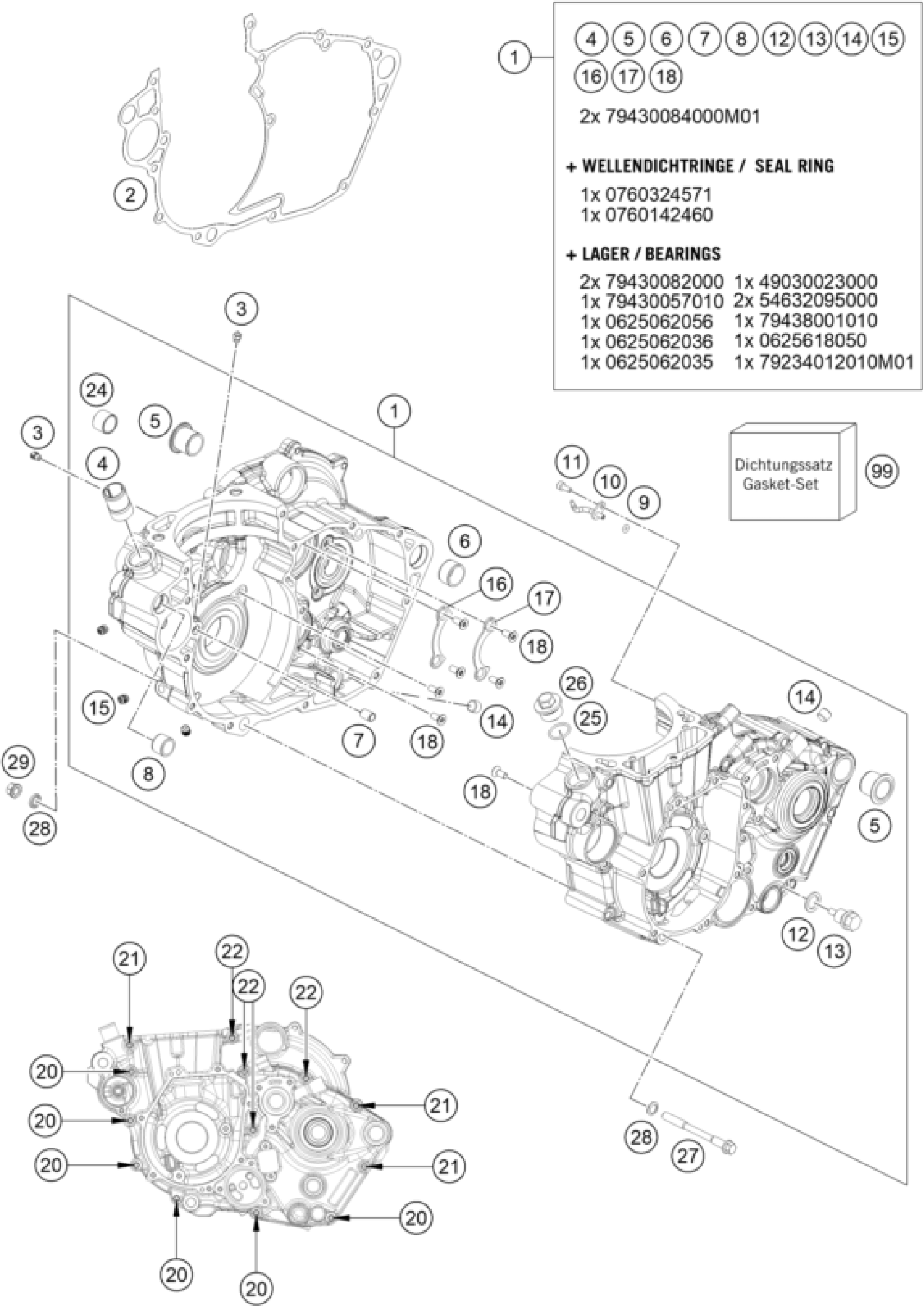

KTM 450 RALLY FACTORY REPLICA 2022 ENGINE CASE Diagram

#

Description
Price

1

engine case cpl.

76730000133

Unavailable

2

Gasket

79430039000M02

Unavailable

3

oil jet 70 M5

60030063070

$8.59

4

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

5

bushing

75030010100M01

Unavailable

6

DOWEL 21X12 03

54830027000

$5.23

7

Dowel, 6x8x11.5

59030023100

$1.49

8

DOWEL 17 X 13 X 12

51030026100

$6.44

9

O-RING 3,5X2,00 NBR

0770035020

$1.49

10

OIL JET ANGLED 70

81230064000

$12.15

11

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

12

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

13

oildrain plug with magnet

58030021100

$11.30

14

pipe plug DIN 906 M10x1

0906100100

$4.11

15

SCREW PLUG

59030296000

$6.26

16

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

17

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

20

HH collar screw M6x60 TX30

0025060606

$3.08

21

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

22

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

24

NEEDLE BEARING INNER RING

79438001010

$8.78

25

O-RING 17,17X1,78 GLO

0770020170

$2.05

26

PLUG M20X1,5 WS=13

59038017100

$7.85

99

GASKET SET 450 SX-F

79430099000

Unavailable

27

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

28

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

29

COLLAR NUT M10 WS=13

54630044000

$1.49
