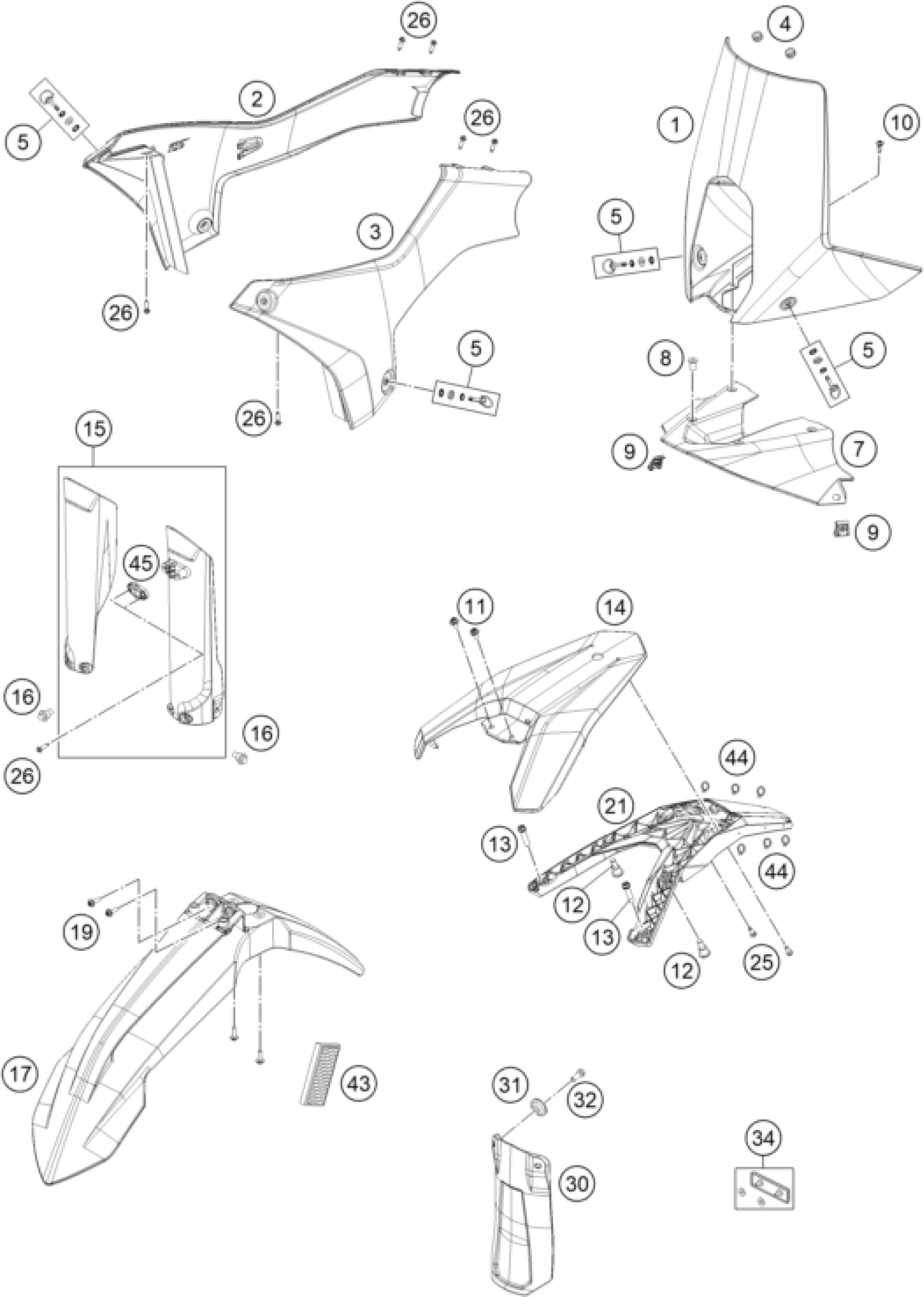

KTM 450 RALLY FACTORY REPLICA 2021 MASK, FENDERS Diagram

#

Description
Price

1

Windshield

76708008000

$300.03

2

Spoiler, right, painted white

7670805100028A

Unavailable

3

Spoiler, left, painted white

7670805000028A

Unavailable

4

rubber grommet D=8mm open

31008060000

$2.05

5

QUICK RELEASE CONNECTOR CPL.

76408008030

$18.13

7

Air inlet

76708011000

Unavailable

8

blind plug nut M5 WN16A

60008008050

$3.73

9

Clip

45007040052

Unavailable

10

special screw M5x17

69008021060

$3.08

11

HH collar screw M6x13 TX30

0024060136

$3.08

12

special screw M8

76707061000

Unavailable

13

HH collar screw M8x30

0025080306

$3.08

14

Rear fender AKF, painted white

7670801310028A

Unavailable

15

FORK PROTECTION SET

7770109410028

$28.13

16

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

17

FRONT FENDER

7900801000028

$31.44

19

HH collar screw M6x16 TX30

0025060166

$3.08

21

Number plate carrier

76708016100

Unavailable

25

EJOT PT SCREW K60X25-Z SW6

0017060255

$3.08

26

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

30

Splash protection

76506010100

$10.46

31

BUCKET

72210079000

$3.00

32

HH collar screw M6x12 TX30

0025060126

$3.08

34

Rear reflector red

58412080400

$5.23

43

REFLECTOR YELLOW ''CEV''

58412080300

$7.75

44

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

44

CABLE TIE 200MM

76311093200

Unavailable

45

CLAMP BRAKE HOSE

7770108510028

$5.23
