WIRING HARNESS

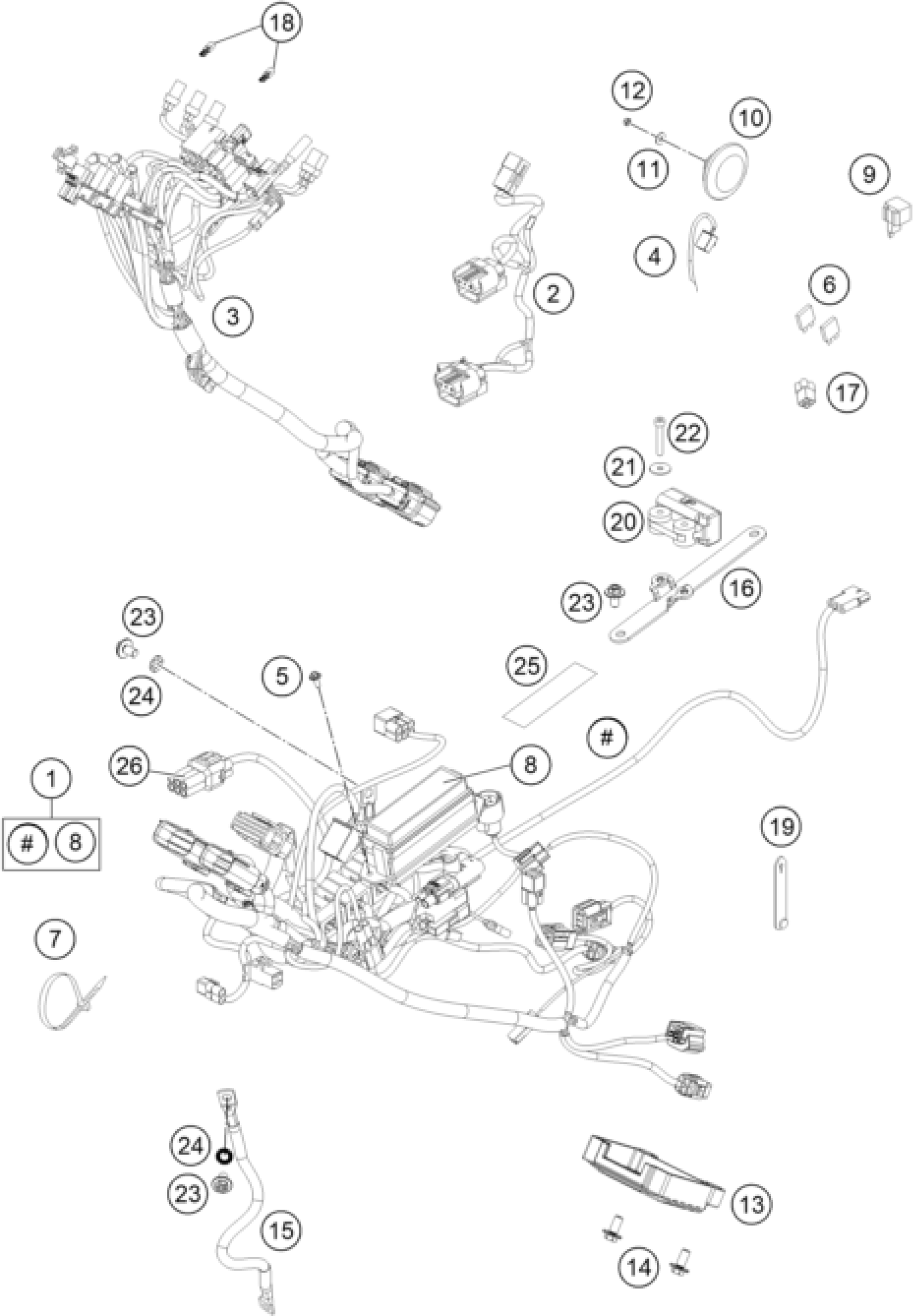

KTM 450 RALLY Factory Replica 2019 WIRING HARNESS Diagram
#
Description
Price
1
main loom
76711075000
Unavailable
2
loom light
76711082000
Unavailable
3
loom cockpit tower
76711081000
Unavailable
5
HH collar screw M5x10 TX30
0025050106
$1.49
6
Plug-in fuse, big 10A
58011109110
$2.05
6
FUSE 15 A
58011109115
$1.49
7
CABLE TIE 140/2,5MM BLACK
44011076140
Unavailable
7
Cable tie 200/4.6mm black
44011076200
Unavailable
7
CABLE TIE 200MM
76311093200
Unavailable
7
CABLE TIE 280MM
76311093280
Unavailable
8
FUSE-BOX COVER
58511075510
$12.61
9
FLASHER UNIT
76511030000
$23.18
10
DC HORN L.E.B. 03
50311060100
$32.44
11
washer DIN 9021 A - 5.3
0021050003
$1.49
12
Self locking nut DIN 985 M5
0985050003
$2.05
13
VOLTAGE REGULATOR
79611034000
$192.32
14
HH collar screw M6x13 TX30
0024060136
$3.08
18
BULB 12V 2,3W (W2X4,6D)
49111425200
$2.05
15
Ground wire, starter frame
76711097050
Unavailable
16
Bracket, rollover sensor
76711155000
Unavailable
20
ROLLOVER SENSOR 05
61041088000
$67.69
21
SHIM 4,3X15X1,25MM GALVANIZED
61041088050
$1.49
22
AH SCREW DIN0912-M 4X25
0912040253
$1.49
23
HH COLLAR SCREW M6X10 TX30
0024060106
$3.08
24
CONTACT WASHER M6 VSV-K6
58411098100
$2.05
4
Wiring harness horn
76711083000
Unavailable
17
Dummy plug 4-pins
000700000AN01
$8.87
6
FUSE 5 A 2003
58011109105
$2.05
19
RUBBER CABLE TIE 75MM 03
60011093075
$5.23
25
Sticker fuse box
76711087010
Unavailable
26
DUMMY PLUG 6-PIN
000700000BH01
$17.66
