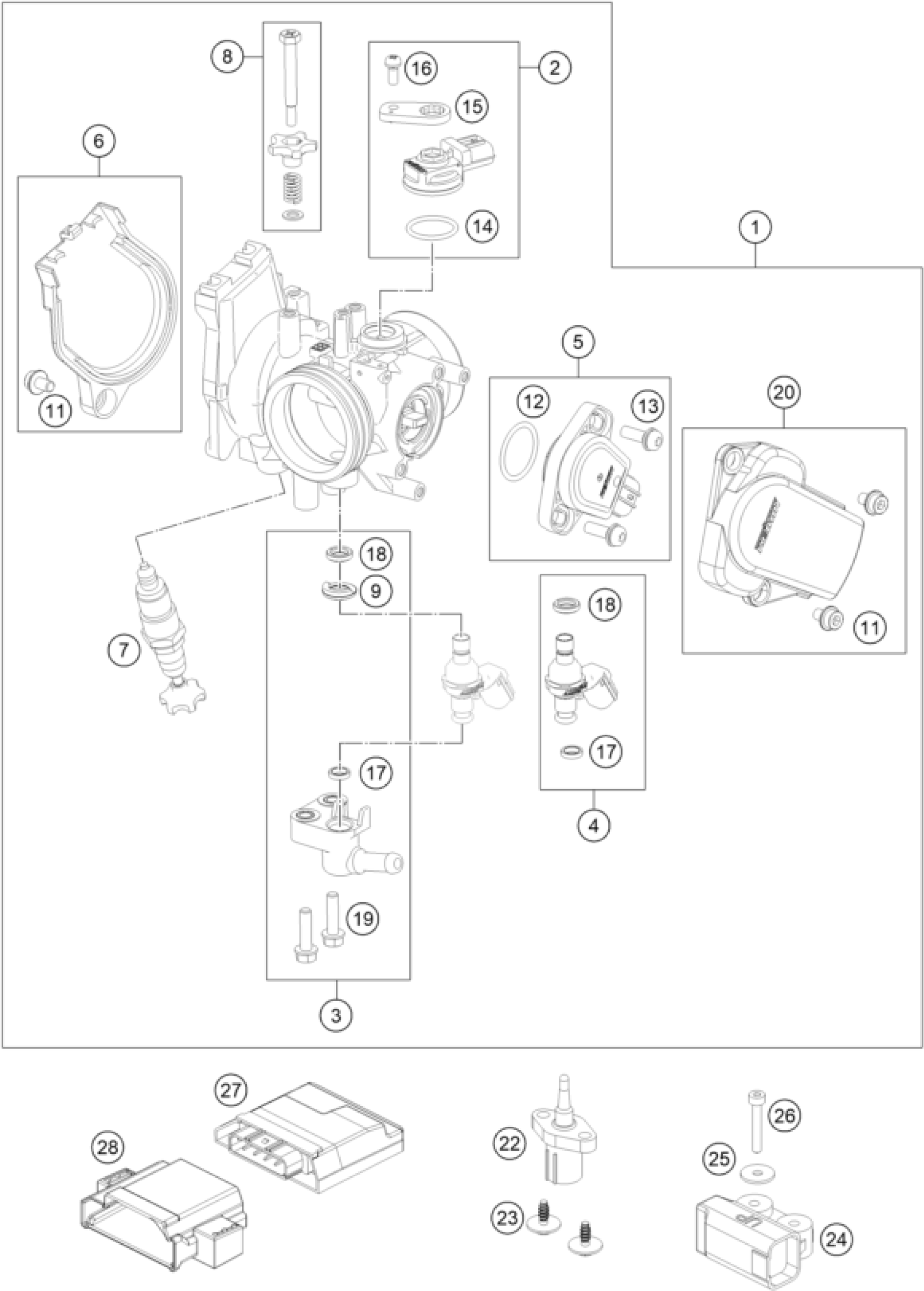

KTM 450 RALLY Factory Replica 2019 THROTTLE BODY Diagram

#

Description
Price

1

throttle body

79141001000

$482.73

2

MAP SENSOR CPL. 07

75041085044

$179.98

3

FUEL PIPE CPL.

79041013044

$84.80

4

INJECTOR CPL.

79041023044

$208.59

5

TPS CPL.

79041077044

$124.35

6

DKK Cover cpl.

79141056044

$22.99

7

STARTER VALVE CPL.

79041070000

$137.25

8

IDLING ADJUSTING SCREW CPL.

77741060044

$31.88

9

SEAL RING

79041023030

$16.35

11

SPECIAL SCREW

79041056020

$5.98

12

O-RING

75041077110

$8.13

13

SCREW THROTTLE POS. SENSOR

61041077020

$3.08

14

O-RING

75041085010

$6.07

15

PLATE

77741085020

$6.72

16

SPECIAL SCREW

81241085030

$5.23

17

O-RING

60341023020

$7.94

18

SEAL RING

75041023010

$11.49

19

SPECIAL SCREW M5X20

79041013060

$4.11

20

TPS Cover cpl.

79141078044

$23.46

22

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

23

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

24

ROLLOVER SENSOR 05

61041088000

$67.69

27

Engine control unit

79641031000

$530.32

28

RUBBER BRACKET ECU

77741031050

$16.54

25

SHIM 4,3X15X1,25MM GALVANIZED

61041088050

$1.49

26

AH SCREW DIN0912-M 4X25

0912040253

$1.49
