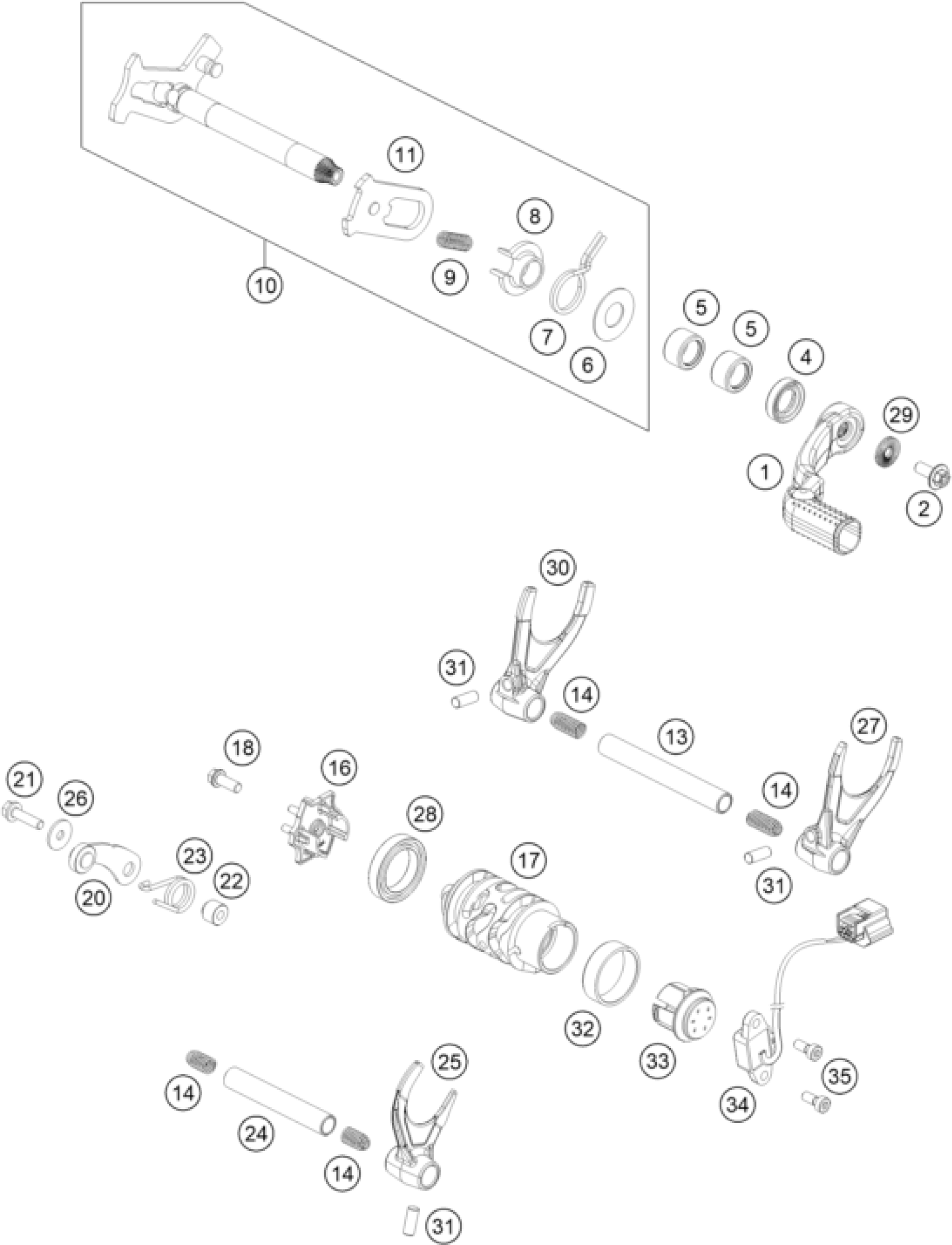

KTM 450 RALLY Factory Replica 2019 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER CPL.

79434031100

$99.38

2

HH collar screw M6x15 TX30

0024060156S

$2.05

4

radial shaft seal 14x24x6 B

0760142460

$9.25

5

needle sleeve HK 1412 14x20x12

54632095000

$7.00

6

STOP DISK 14X30X1,5

90134050000

$2.05

7

RETURN SPRING 2,2MM '95

54634014100

$6.63

8

SPRING GUIDE

54634020000

$6.44

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

Shift Shaft cpl.

79434005033M02

Unavailable

11

SLIDING PLATE

61234008044

$10.46

13

GEAR SHIFT RAIL 11,8X91,1MM

79434020000

$14.02

14

PRESSURE SPRING 0,9MM

58038023200

$4.11

16

shift drum locating

79434115000

$24.94

17

Shift roller 6 gear

79434512000

Unavailable

18

HH collar screw M6x16 TX30

0025060166

$3.08

20

LOCKING LEVER CPL.

78134024044

$14.58

21

HH collar screw M5x20 TX30

0025050206

$2.05

22

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

26

washer DIN 9021 A - 5.3

0021050003

$1.49

27

SHIFTING FORK 2ND-4TH GEAR

79434002100

$79.47

28

BALL BEARING 61805 C3

0625618050

$43.94

29

PAIR NORDLOCK WASHER M6

50233041500

$4.11

30

SHIFTING FORK 1ST-3RD GEAR

79434003100

$79.00

31

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

32

Slide Bearing

79234012010M01

Unavailable

33

Magnet bracket cmpl.

79234012020

$58.71

34

gear position sensor

79211023000

$121.35

35

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

24

GEAR SHIFT RAIL 11,8X74,5MM

79434019000

$11.77

25

SHIFTING FORK 5TH-6TH GEAR

79434001100

$79.28
