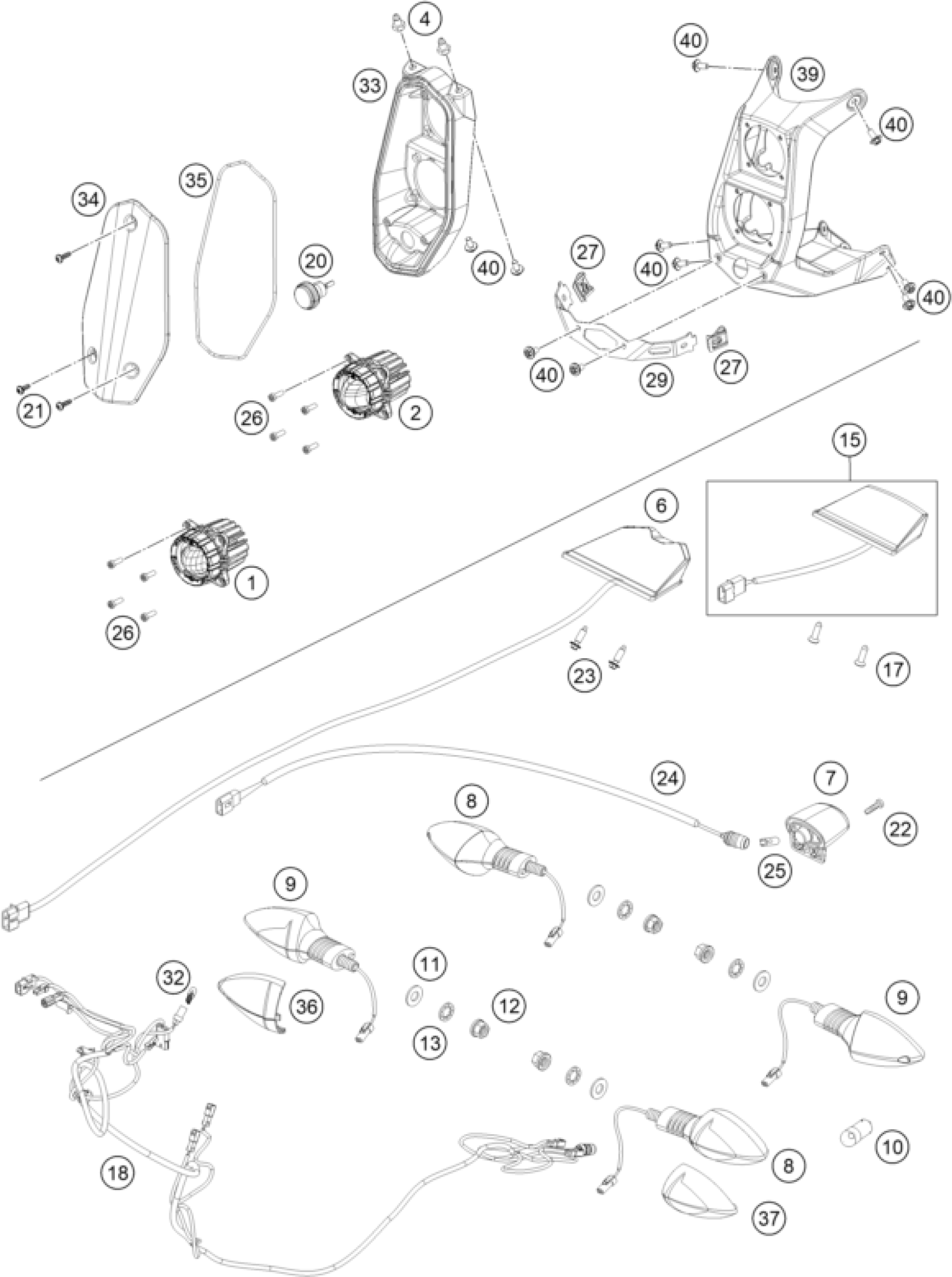

KTM 450 RALLY Factory Replica 2019 LIGHTING SYSTEM Diagram

#

Description
Price

1

Hella M60 LED, low beam

76714001000

Unavailable

2

Hella M60 LED, high beam

76714002000

Unavailable

4

Windshield positioning pin

76712089043

Unavailable

6

tail light

76714040000

Unavailable

7

Number plate light

75014047100

$10.37

8

FLASHER CPL.FRONT L/S REAR R/S

78114025000

$32.72

9

FLASHER CPL.FRONT R/S REAR L/S

78114026000

$32.72

10

BULB 12V ORANGE (RY10W)

60114027000

$6.63

11

washer DIN 125 A 10.5

0125100003

$2.05

12

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

15

Extra rear light

76714040050

Unavailable

18

Wiring harness turn signal

76711080000

Unavailable

20

Position light

76714004000

Unavailable

21

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

22

SCREW FOR PLASTIC 50X18 T20

0081250181

$1.49

23

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

24

WIRING HARN. LIC. PLATE ILLUM.

76511078000

$7.85

25

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

26

CYL. SCREW DIN6912 M5X16 8.8

0984050163S

$2.05

27

Clip

45007040052

Unavailable

29

Windshield retaining bracket

76708004010

Unavailable

32

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

33

Headlight mask

76708001000

Unavailable

34

Stone chip guard

76712079000

Unavailable

35

Rubber seal

76708001001

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

$8.50

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

$8.50

39

Light support structure

76708003044

Unavailable

40

HH collar screw M6x13 TX30

0024060136

$3.08

17

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49
