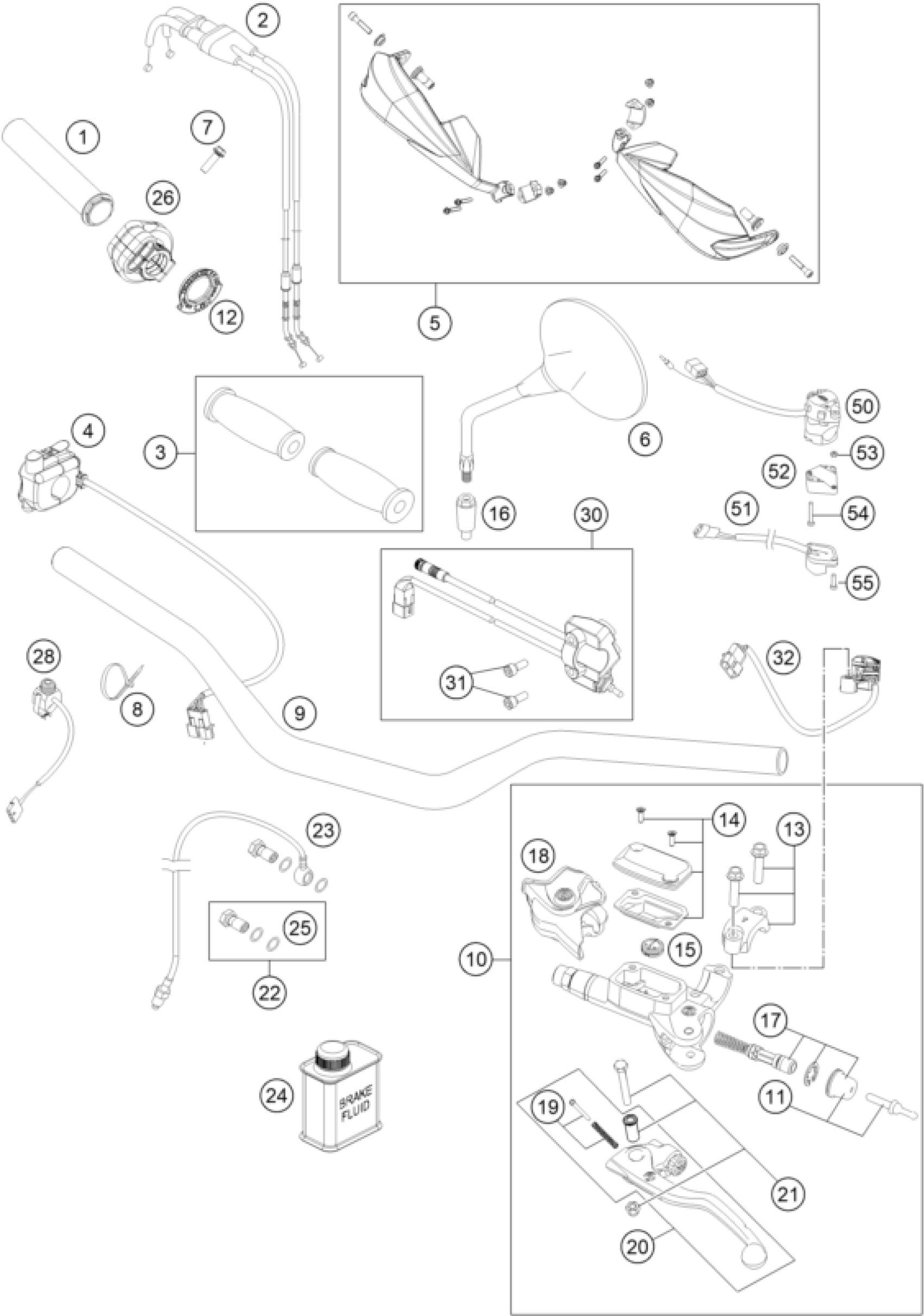

KTM 450 RALLY Factory Replica 2019 HANDLEBAR, CONTROLS Diagram

Throttle tube

76702013050

$21.24

Throttle cable wire

79102091000

$83.30

RUBBER GR. PRO GRIP 06

58502139044

$22.34

START-STOP SWITCH

77711074000

Unavailable

HANDGUARD CLOSED WHITE

7800207920028

$59.75

Rear view mirror, left/right

58412040100

$65.63

Cable tie 200/4.6mm black

44011076200

$1.49

HANDLEBAR BLACK

7640210100030

Unavailable

MASTER CYLINDER CPL.

54802030144

$240.57

Push rod cmpl.

54802046000

$23.46

CLAMP CPL. 06

54802005100

$25.80

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

VALVE

54802051000

$19.16

REP. KIT PISTON 06

54802032000

$49.92

PROTECTION CAP 06

54802037000

$20.94

BOLT KPL.

54802052000

$29.35

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

Lever screw cmpl. 06

54802038100

$39.82

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

CLUTCH PIPE

78132063000

$107.14

Brake fluid DOT5.1 0,25L

00062030000

$12.52

COPPER GASKET

59413013050

$6.63

Roadbook switch cmpl.

76712075044

Unavailable

AH SCREW DIN0912-M 6X16

0912060163

$1.49

Fuel pump switch cpl.

76711006044

Unavailable

Light switch

76711070000

$118.18

FLASHER SWITCH CEV '98

50311029000

$51.98

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

HH collar screw M6x20 TX30

0025060206

$3.08

CAM 4-T 36 MM

79002014000

$2.40

Throttle control casing cpl.

79002010125

$29.16

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

STARTER BUTTON 06

63011074000

$37.48
