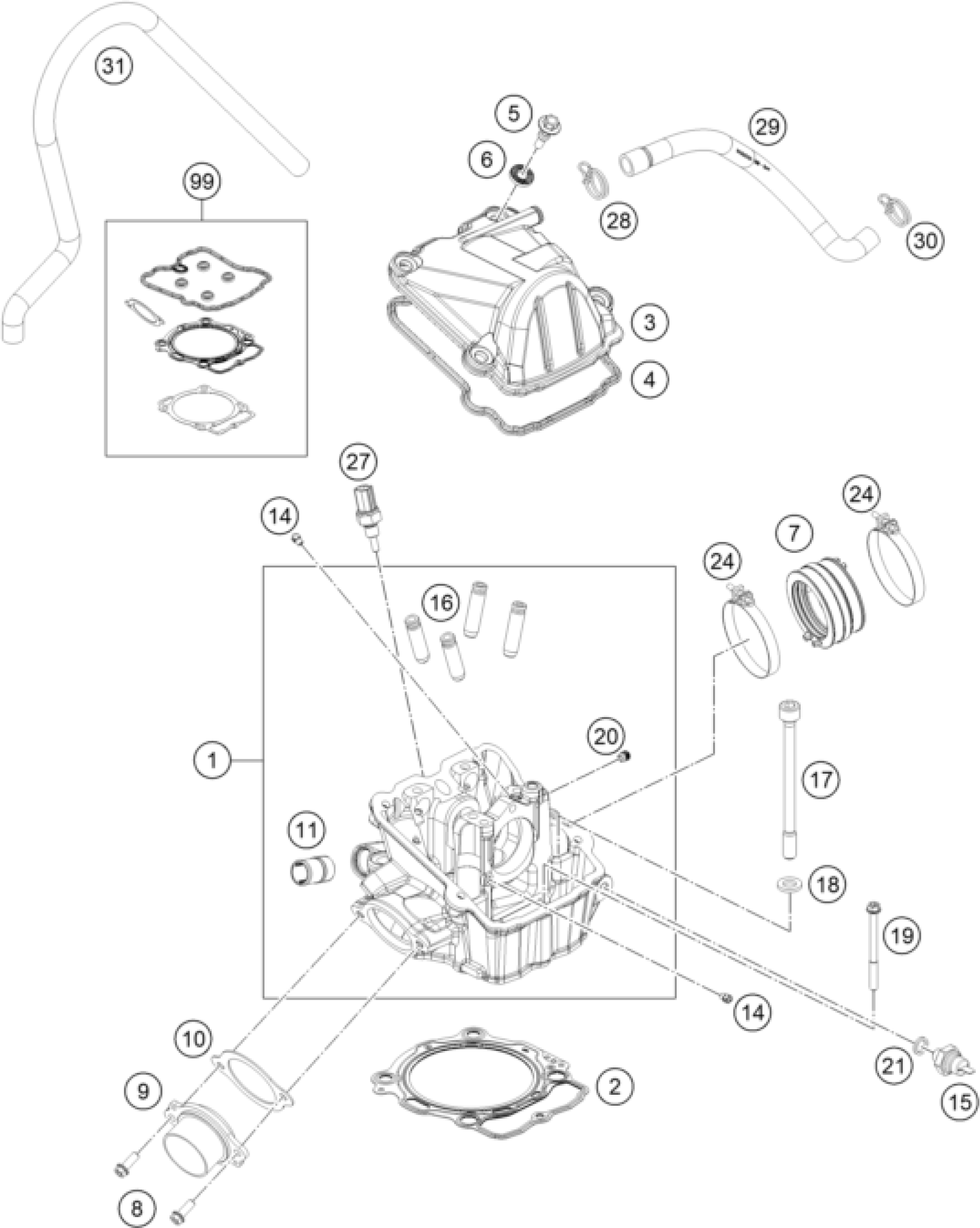

KTM 450 RALLY Factory Replica 2019 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

76736020300

Unavailable

2

CYLINDER HEAD GASKET (DN95)

79430036010

$76.19

3

VALVE COVER

7943605200033

$61.23

4

VALVE COVER GASKET

79436053000

$10.46

5

VALVE COVER SCREW

78036054100

$6.63

6

decoupling element

75036052010

$4.11

7

RUBBER CUP

79236044100

$38.70

8

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

9

Engine flange

76736039000

Unavailable

10

EXHAUST FLANGE GASKET

78036041000

$3.08

11

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

14

oil jet 70 M5

60030063070

$8.59

15

OIL-PRESSURE SWITCH LC8 04

60038091100

$20.66

16

VENTILFÜHRUNG EINLASS

78136025000M01

Unavailable

17

CYL. HEAD SCREW M10X1,25 L=125

78030044000

$6.35

18

washer 19x10.5x2.5

77336089010

$4.11

19

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

21

COPPER GASKET 10,2X14X2 MM 01

0603101420

$3.08

24

Hose clamp GEMI 63mm 05

61036047000

$7.56

27

water temperature sensor

79435047000

$23.74

28

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

29

Engine vent hose

76730087000

Unavailable

30

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

99

CYL. GASKET SET 450 SX-F 16

79430097000

Unavailable

20

SCREW PLUG

59030296000

$6.26

31

ENGINE BREATHER TUBE

77330086100

$31.88
