Description

Price

1

battery rack cpl.

76711054050

Unavailable

3

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

4

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

6

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

7

rubber f. battery

76711056000

Unavailable

8

Capacitor

77711035000

$87.32

9

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

12

Starter relay

76211058000

$79.19

13

Plug-in fuse, big 30A

58011109130

$2.05

16

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

17

HH collar screw M5x10 TX30

0025050106

$1.49

18

BATTERY 12V 4AH SXS-F

77311053200

$166.05

19

RUBBER BRACKET ECU

77741031050

$16.54

20

Engine control unit

79641031000

$530.32

21

Battery starter relay cable

76711059050

Unavailable

22

Starter cable

76711059000

Unavailable

23

Ground wire battery frame

76711097000

Unavailable

2

RUBBER SLEEVE D=12MM

41001052000

$4.11

5

Pole extension

76711053010

Unavailable

24

Edge protection 9.5x6.5x57

76003095057

Unavailable

25

Protection cap for starter eng

77240099000

$6.35

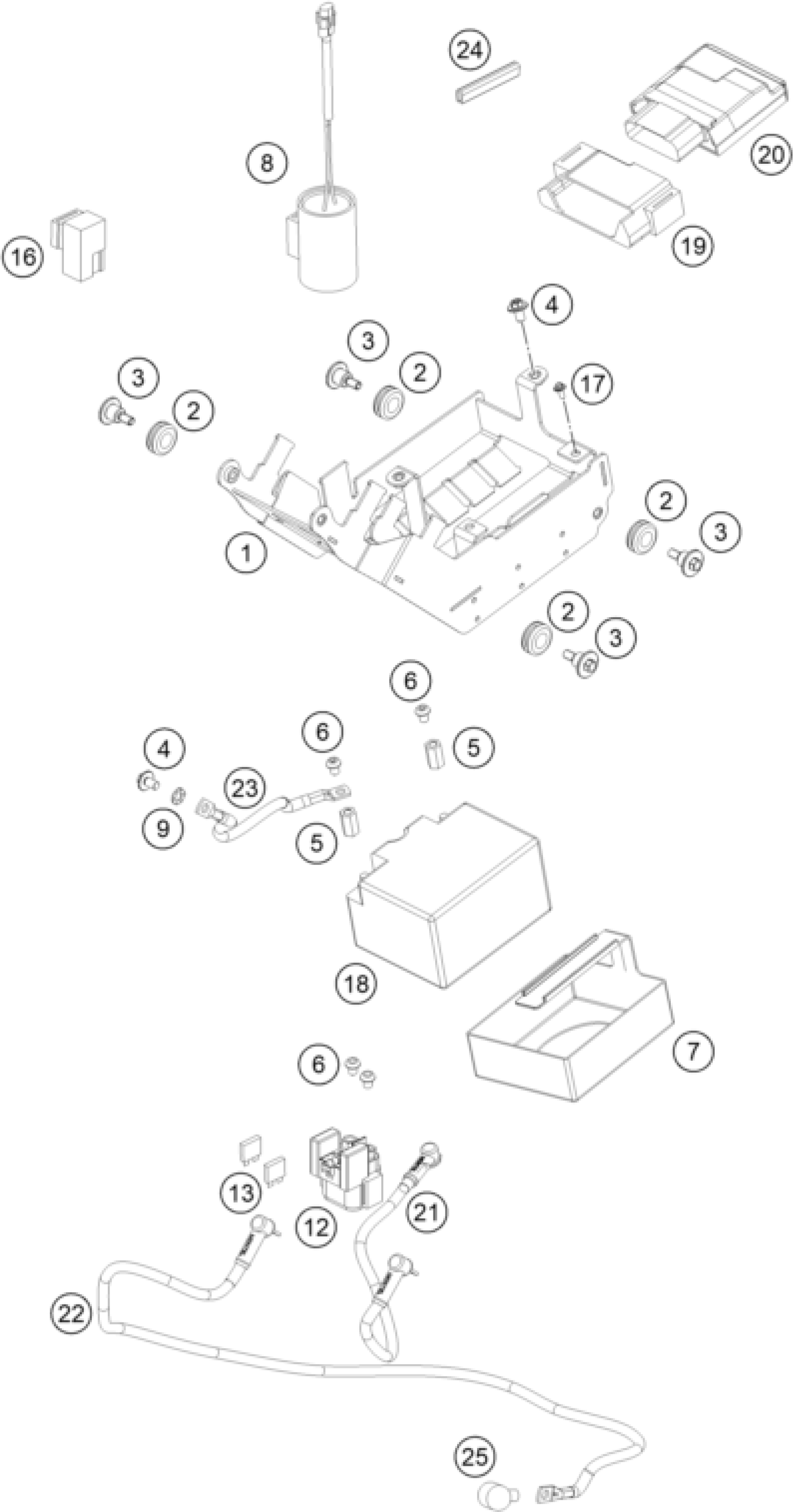

KTM 450 RALLY Factory Replica 2019 BATTERY Diagram

battery rack cpl.

SPECIAL SCREW M6X21 WS=8

HH COLLAR SCREW M6X10 TX30

Oval head screw ISO 7380 M 6X8

rubber f. battery

Capacitor

CONTACT WASHER M6 VSV-K6

Starter relay

Plug-in fuse, big 30A

RELAY CM1A-R-12V-H80 07

HH collar screw M5x10 TX30

BATTERY 12V 4AH SXS-F

RUBBER BRACKET ECU

Engine control unit

Battery starter relay cable

Starter cable

Ground wire battery frame

RUBBER SLEEVE D=12MM

Pole extension

Edge protection 9.5x6.5x57

Protection cap for starter eng
