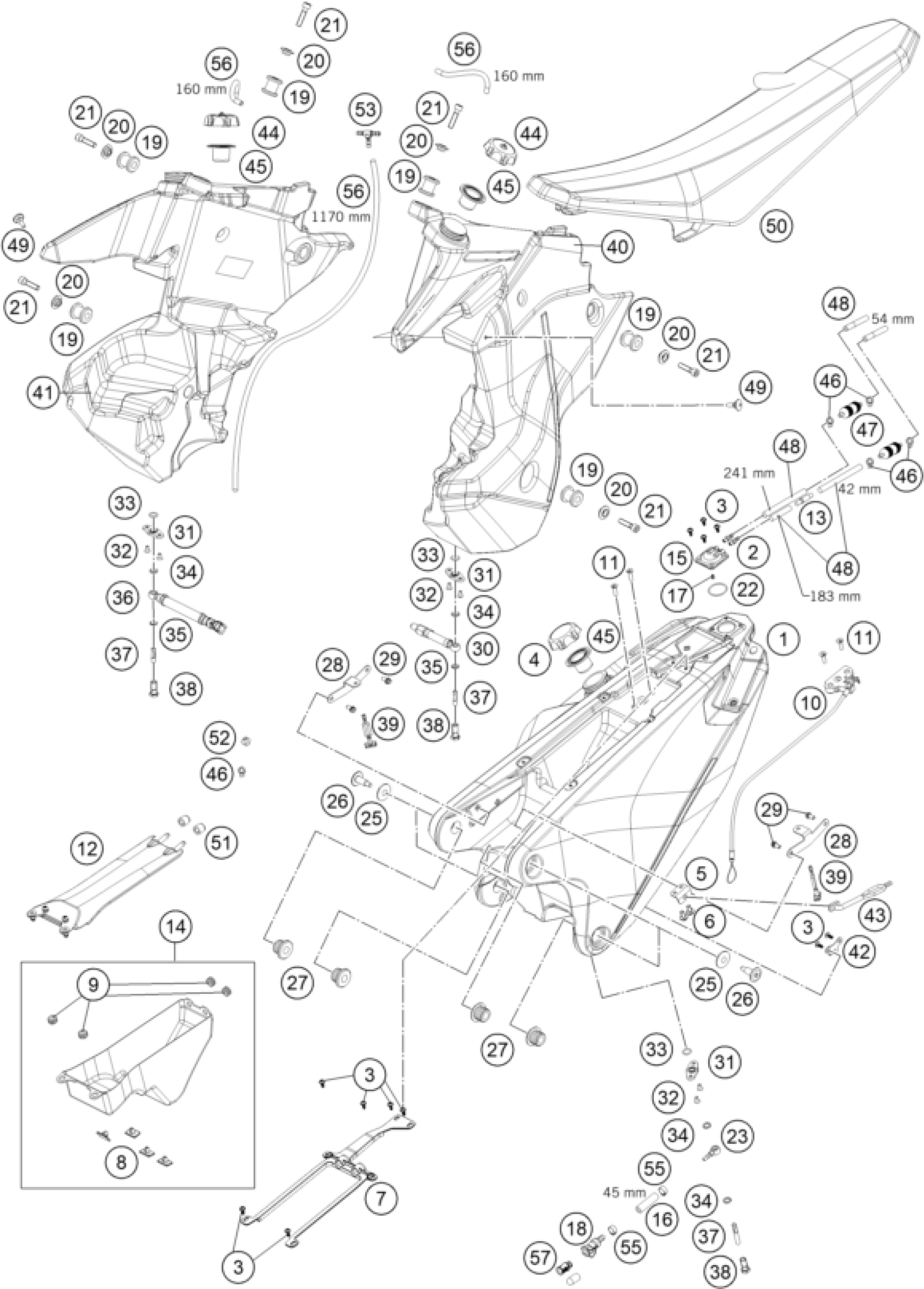

KTM 450 RALLY Factory Replica 2018 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank, painted white

7670701500028A

Unavailable

2

VACUUM CONECTION M6/3MM '97

58336020190

$5.23

4

FILLER CAP TANK RALLY

76307108000

Unavailable

5

STRAP SIDE STAND RUBBER

76407031000

Unavailable

6

HH collar screw M6x13 TX30

0024060136

$3.08

10

Seat look cmpl.

76707050033

Unavailable

11

Flat head screw DIN7991 M6X20

0991060202

$2.05

13

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

18

CLUTCH F. FUEL HOSE CPC 03

58507010500

Unavailable

19

RUBBER BUSHING

76407061000

$5.51

20

BUSHING SLEEVE

76407064000

$9.06

21

AH SCREW DIN0912-M 8X25

0912080253

$2.05

22

O-RING 25,30X2,40 NBR70

0770253240

$1.49

25

Rubber washer

76707067000

Unavailable

26

BEARING SKREW

76407060000

Unavailable

30

Connecting pipe

76707091033

Unavailable

31

FUEL FLANGE SHEET 01

58507008050

$10.84

32

Flat head screw DIN7991 M5X10

0991050102

$2.05

33

O-RING 12,00X2,00 NBR 70

0770120020

$2.05

34

COPPER GASKET 10,2X14X2 MM 01

0603101420

$3.08

35

sealing ring DIN 7603 10x14x1

0603100141

$2.05

36

Connecting pipe

76707092033

Unavailable

37

FUEL FLANGE-STRAINER 03

58507008010

$5.60

38

HOLLOW SCREW M10X1X24 RALLY 02

58507025000

Unavailable

40

Front tank, left, painted whit

7670701300028A

Unavailable

41

Front tank, right, painted whi

7670701400028A

Unavailable

44

TANK CAP

76407108000

$93.96

45

GASKET FOR FILLER CAP HIGH

59007009000

$8.03

50

Seat Asm

76707040000

$589.04

53

T-connector TS-6 03

60015022000

$5.98

55

OETIKER HOSE CLAMP 13,3MM

58007117200

$3.08

56

Hose 5x8mm

58507007001

Unavailable

57

WASH CAP SET

81212016100

Unavailable

27

Rubber bushing 14X24.5X35 L=21

76707066000

Unavailable

49

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

16

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

3

EJOT PT screw K50x14

0081050141

$1.49

15

Housing, tank air vent

76707030010

Unavailable

17

OIL JET ''60'' M4

80030058060

$11.87

28

Toolbox bracket

76707015020

Unavailable

29

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

39

BRACKET RUBBER FOR BATTERY

75011054005

$5.70

42

Bowden cable holder

76707015010

Unavailable

43

RUBBER SIDE STAND

76503025000

$7.00

7

Cable cover

76707027000

Unavailable

9

rubber grommet D=8mm open

31008060000

$2.05

14

Toolbox Case ZSB

76712062133

Unavailable

23

RING COMPONENT 10/6MM

49138493000

$10.74

46

CABLE TIE 200MM

76311093200

$1.49

47

Filter tank ventilation

76707031000

Unavailable

48

Hose 6x3 mm

76707016001

Unavailable

51

rubber grommet

76006014000

$1.49

52

Plug-in base

76711094010

Unavailable

12

Tool box lid ZSB

76712063133

Unavailable

8

Isolation pad

77307040041

$2.05
