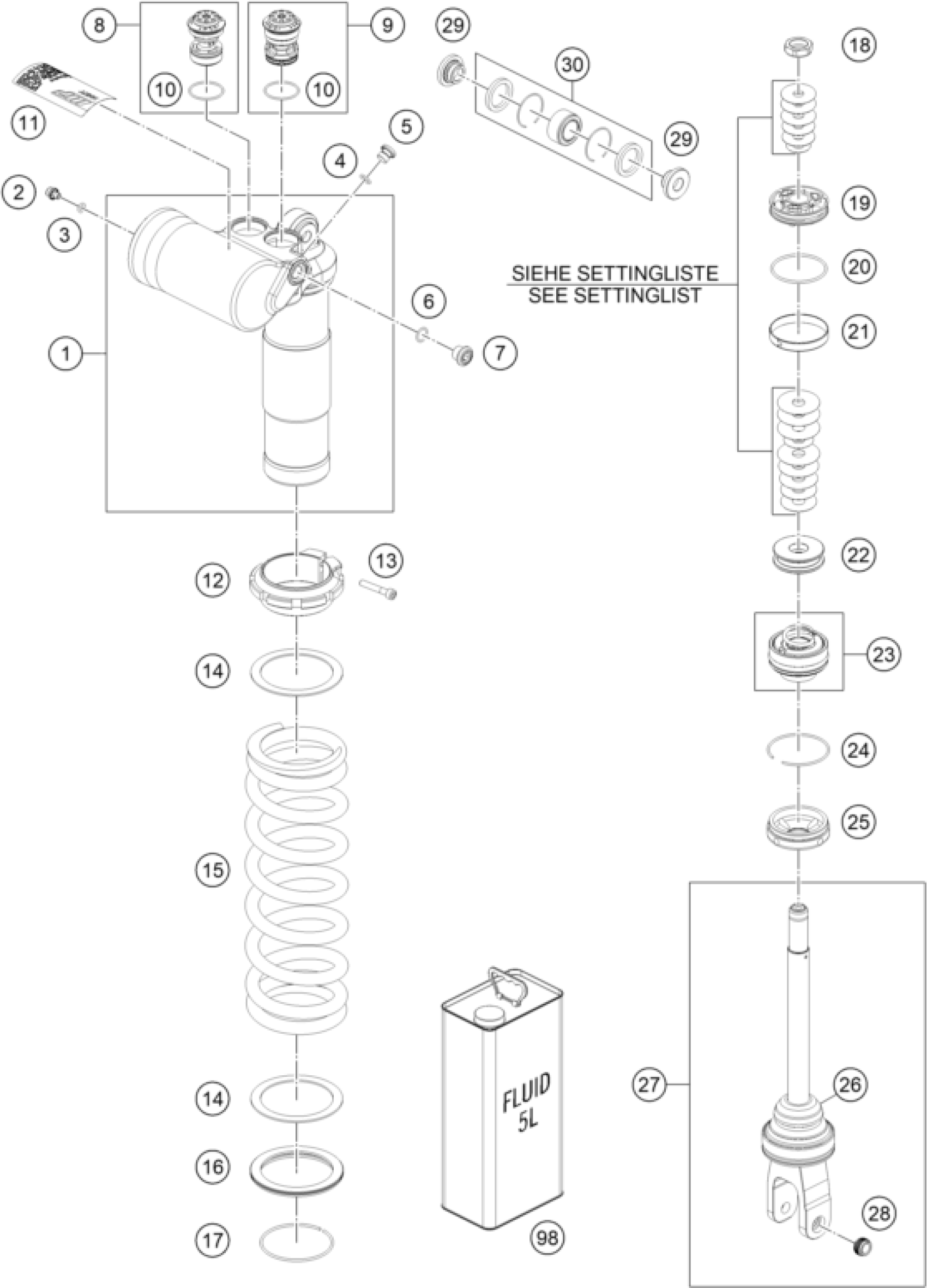

KTM 450 RALLY Factory Replica 2018 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

Sub-part mount. eye cmpl.w.tub

50181268S1

Unavailable

2

HS lock screw M5x6

36120151

$1.86

3

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

4

O-ring 8x1,5 Viton75 green

50180100

$1.49

5

HS screw G1/8x8

50181330

Unavailable

6

O-ring 10x1,5 NBR70

14460107

Unavailable

7

HS cylinder-head screw M12

50181276

Unavailable

8

Screw cap M29x1 DCC-LS cpl.

50181150S

Unavailable

9

Screw cap M29x1 DCC-HS cpl.

50181151S

Unavailable

10

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

12

Spring retainer M57,5

50181292

Unavailable

13

HS cylinder-head screw M5x30

50180327

$4.11

14

Intermediate washer spring 61,

50180114

$3.08

15

SPRING 260 54 N/MM

91210103S

$140.24

15

SPRING 260 48 N/MM

91210101S

Unavailable

15

SPRING 260 51 N/MM

91210102S

Unavailable

15

SPRING 260 57 N/MM

91210104S

Unavailable

15

SPRING 260 60 N/MM

91210105S

Unavailable

16

Spring retainer 61,5x79,1x7

50180824

$25.70

17

Round-wire snap ring 58,5x2

50180273

$2.05

18

PISTON ROD NUT M16X1

50180529

Unavailable

19

Piston 16x49,6x13,5

50181215

Unavailable

20

O-ring 44x2 Viton70 green

50180185

Unavailable

21

Piston ring 47,95x49,95x8

50180135

$17.76

22

Rebound disc 16x43x13 h4

50181279

Unavailable

23

Sealholder 50x28 cpl.

50180603SA

$63.10

24

Round-wire snap ring 53x1,75

50180126

$1.49

25

Cover 50x6x15 red

50181302

Unavailable

26

Rubber pad 18x58x46 black

50181100

$19.35

27

Mounting fork, cmpl.

18180S40TS

Unavailable

28

Bush M10x12/15/13x9,5

46811205

$6.72

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

11

Sticker, XPLOR PRO 75x40

52000196

Unavailable

29

Distance bush 10x15/18/24,5x10

46180010

$4.11

30

Ball joint bearing kit top 12m

R12012

$35.71
