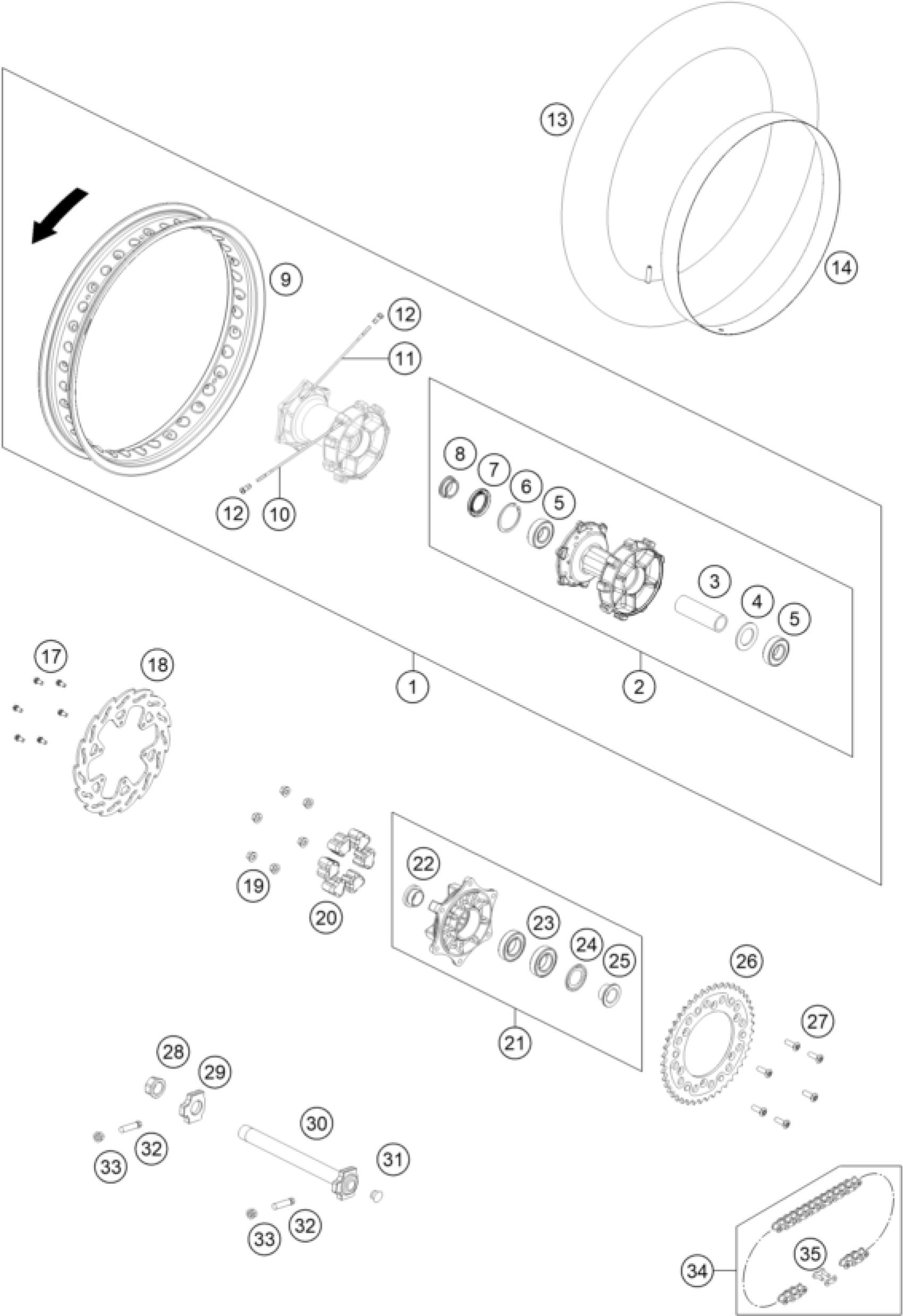

KTM 450 RALLY Factory Replica 2018 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel Rally cpl.

7671000103330

Unavailable

2

Rear hub dampened cpl.

76710010033

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

$14.58

4

Spacer ring 03

60010015000

$10.56

5

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

6

CIRCLIP DIN0472-52X2

0472052200

$3.08

7

Radial shaft seal 30X52X7

0760305271

$5.23

8

Bushing for hub, right

76710018000

Unavailable

9

RIM 2.50X18''

7621007000030

Unavailable

10

Spoke M5x213

76710071213

Unavailable

11

Spoke M5x206

76710071206

Unavailable

12

SPOKE NIPPLE QUADRAX M5

60310072100

$2.05

13

TUBE 110/100C-18

50310075100

$29.13

14

Tube protector 18" and 19"

50310073200

$13.27

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

18

REAR BRAKE DISK D=240X4MM

76510060100

$161.75

19

Self locking nut M8 10.9

54310086200

$3.08

20

Rubber damping block 91

54610459000

$8.03

21

Sprocket carrier cpl.

7671005013330

Unavailable

22

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

23

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

24

NILOS RING 6006AV

60110016000

$9.72

25

Spacer, rear sprkt. carrier

76710012000

Unavailable

26

REAR SPROCKET ORANGE 44-T

5841005104404

$101.14

26

REAR SPROCKET ORANGE 46 T.

5841005104604

Unavailable

26

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

26

REAR SPROCKET ORANGE 49-T

5841005104904

Unavailable

26

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

26

REAR SPROCKET ORANGE 51-T

5841005105104

$101.14

27

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

28

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

29

CHAIN TENSIONER R/S

77710084000

$19.72

30

WHEEL SPINDLE CPL. '13

77710085044

$94.80

32

screw M10x1.25x50 WS10

50304040100

$5.23

33

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

34

CHAIN DID 118 LINKS

78010167118

$125.66

35

RIVETING LINK FOR 78010167118

78010166100

$13.27

31

Plug SFL16

50210086000

$3.08
