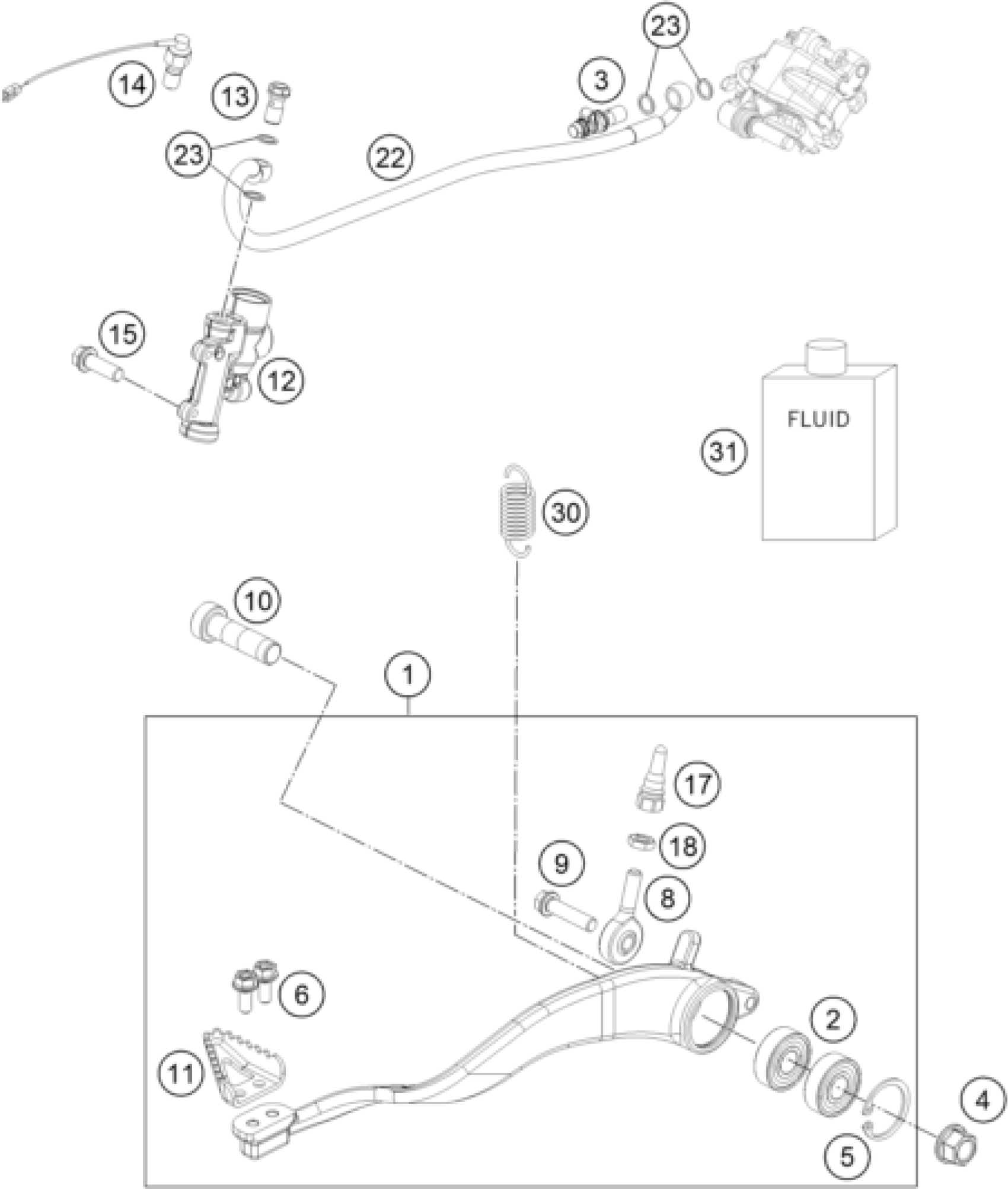

KTM 450 RALLY Factory Replica 2018 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Foot brake lever cpl.

76713050033

Unavailable

2

deep groove ball bearing SKF 6

0625060002

$12.33

4

COLLAR NUT M10 WS=13

54630044000

$1.49

6

HH collar screw M5x12 TX30

0025050126

$3.08

8

Joint head CMP6

54813055100

$19.91

9

HH collar screw M6x25 TX30

0025060256

$3.08

11

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

12

REAR BRAKE CYLINDER CPL.SX 09

77013060044

$306.11

13

banjo bolt M10x1x19 black

54813020100

$9.90

15

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

17

PUSH ROD L=28MM 03

54813056000

$15.89

18

Hex. nut DIN 934 M6

0934060003

$1.49

22

Rear brake hose

76713070000

$81.07

23

sealing ring DIN 7603 10x14x1

0603100141

$2.05

30

RETURN SPRING F. BRAKE LEVER

79003062000

$5.23

31

Brake fluid DOT5.1 0,25L

00062030000

$12.52

10

AH-COLLAR SCREW M10X40 ISA45

0032100406S

$4.11

3

BLEEDER SCREW CPL. 05

62513020000

$27.48

14

BRAKE LIGHT SWITCH LONG

58511051100

Unavailable

5

Lock ring J26x1.2

0472026120

Unavailable
