Description

Price

1

Triangular lever arm cpl.

76704080033

Unavailable

2

Pull rod cpl.

76704083033

Unavailable

4

Needle bushing HK 2016 / 20x26

54603097000

$15.04

5

Shim 20x31.9x1

59033080000

$2.05

6

radial shaft seal 25x32x7

0760253270

$6.63

7

Bucket f. shaft seal ring 25X1

77204080130

$10.93

8

SPHERICAL BEARING INA GE14BW

76203083050

Unavailable

9

COLLAR BUSHING

76403085000

Unavailable

10

O-RING 21,00X2,00 NBR70

0770021020

$2.05

11

SUPPORT FOR SEAL RING

76203032020

Unavailable

12

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

13

HH collar screw M10x52 WS13

77204089000

$5.23

14

CAP WITH LOOP RED

53003099000

$2.05

15

GREASE FITTING M6 STRAIGHT

72003035000

$2.05

16

Bushing sleeve 15x20x48

54603081000

$24.77

17

NEEDLE BEARING HK2220 22X28X20

0618222820

$11.30

18

Radial shaft seal G22x28x4

0760222841

$4.11

23

Bolt triangle lever arm M14x1.

77204085000

$48.99

25

Bearing sleeve for pull rod 16

79004084010

$22.15

24

hex nut M14x1.5 WS17

77204087000

$2.05

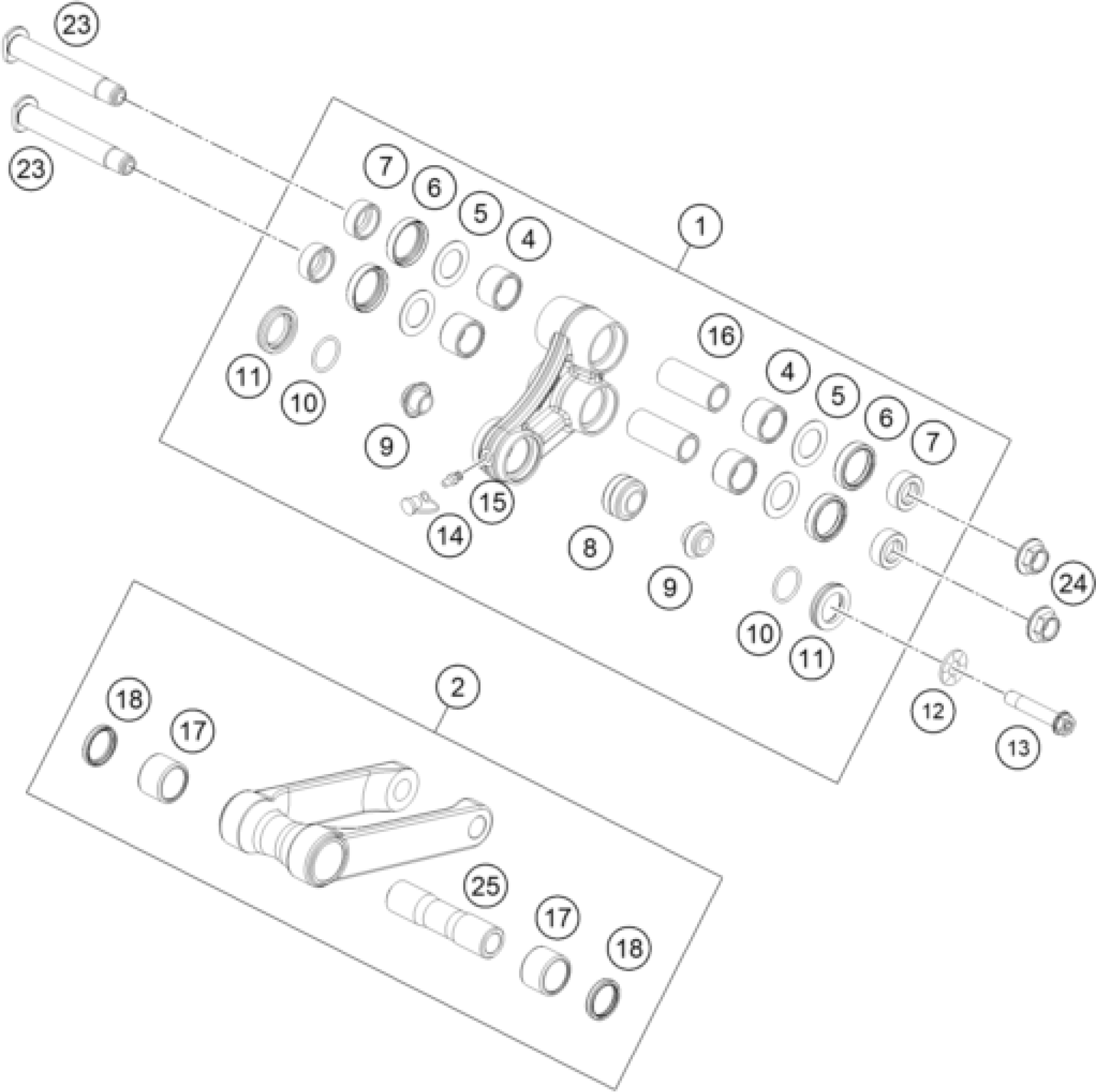

KTM 450 RALLY Factory Replica 2018 PRO LEVER LINKING Diagram

Triangular lever arm cpl.

Pull rod cpl.

Needle bushing HK 2016 / 20x26

Shim 20x31.9x1

radial shaft seal 25x32x7

Bucket f. shaft seal ring 25X1

SPHERICAL BEARING INA GE14BW

COLLAR BUSHING

O-RING 21,00X2,00 NBR70

SUPPORT FOR SEAL RING

PAIR OF WASHERS M10 NORDLOCK

HH collar screw M10x52 WS13

CAP WITH LOOP RED

GREASE FITTING M6 STRAIGHT

Bushing sleeve 15x20x48

NEEDLE BEARING HK2220 22X28X20

Radial shaft seal G22x28x4

Bolt triangle lever arm M14x1.

Bearing sleeve for pull rod 16

hex nut M14x1.5 WS17
