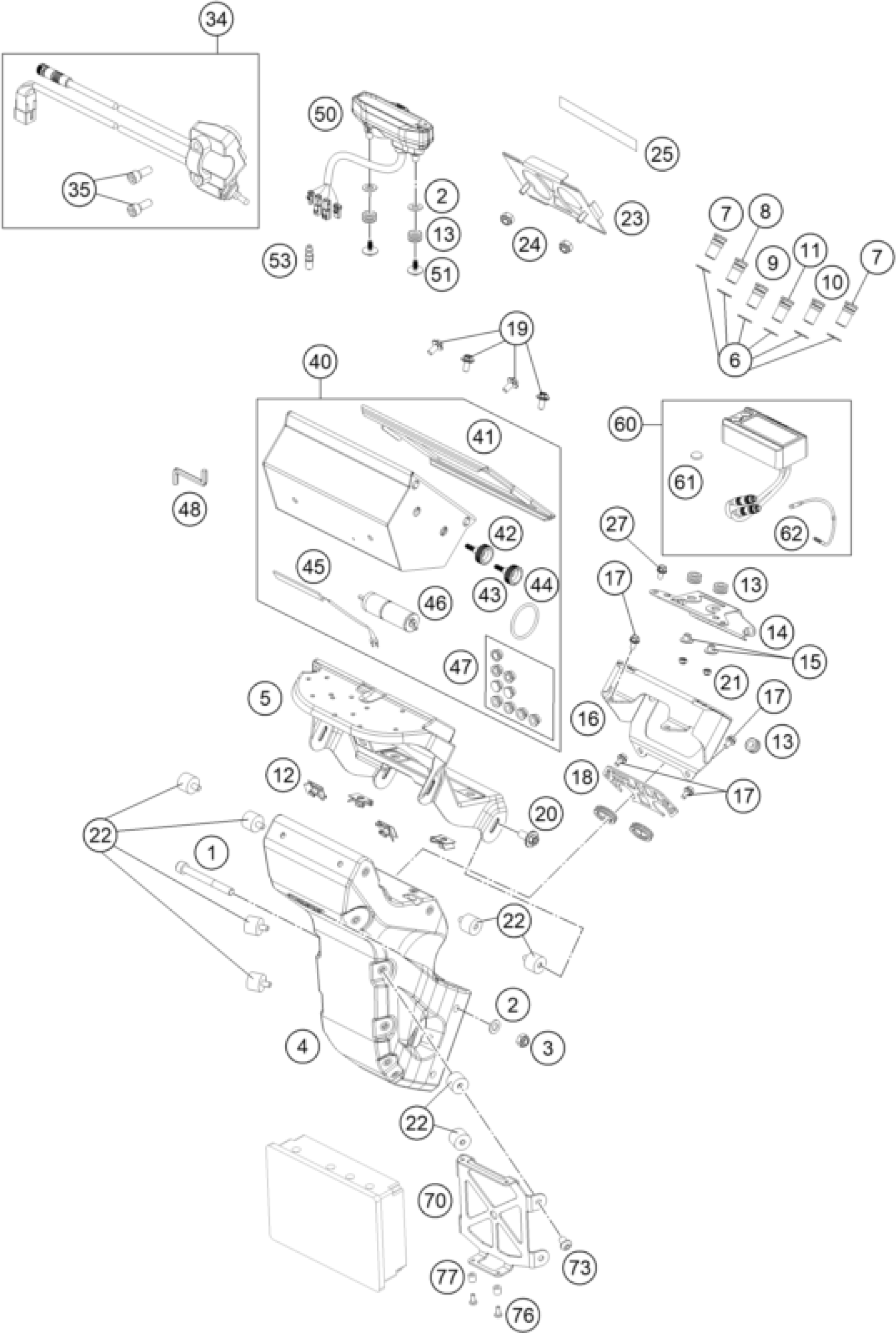

KTM 450 RALLY Factory Replica 2018 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

4

navigation tower

76712089000

Unavailable

5

Roadbook carrier ZSB

76712091000

Unavailable

6

retaining ring DIN 471 14x1

0471140100

$1.49

7

INDICATOR LIGHT RESERVE

81214086000

$7.66

8

TEMPERATURE WARN. LIGHT RED'98

58011022400

$6.54

9

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

10

OIL INDICATOR LIGHT RED

58011025000

$6.44

11

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

13

rubber grommet D=8mm open

31008060000

$2.05

14

ICO retaining bracket ASSY

76712073000

Unavailable

15

BUSHING

76408001004

Unavailable

16

ICO connector plate ASSY

76712069000

Unavailable

17

HH collar screw M6x12 TX30

0025060126

$3.08

18

ICO plug sheet

76712069020

Unavailable

21

Self locking nut DIN 985 M5

0985050003

$2.05

34

Roadbook switch cmpl.

76712075044

Unavailable

35

AH SCREW DIN0912-M 6X16

0912060163

$1.49

40

Roadbook

76712098100

Unavailable

50

Speedometer digital km/h f. 21

77714069600

$254.31

51

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

60

Tripmaster ICO kpl.

76712085066

Unavailable

61

BATTERY FOR ICO TRIPMASTER 04

58512085160

$9.06

70

Bracket Iritrack 2017

76712084020

Unavailable

73

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

76

Flat head screw DIN 7985 4.8 M

07985040103

Unavailable

77

Emergency transmitter sleeve

76712084002

Unavailable

1

AH SCREW DIN0912-M 8X75

0912080753

Unavailable

2

washer DIN 125 A -8.4

0125080003

$1.49

3

SELF LOCKING NUT DIN0985-M 8

0985080003

$2.05

12

clip nut M6

54603048100

$4.11

19

HH collar screw M6x13 TX30

0024060136

$3.08

22

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

23

Bracket GPS

76712092000

Unavailable

24

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

25

Strap

76712092030

Unavailable

27

HH collar screw M5x10 TX30

0025050106

$1.49

53

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

$78.91

62

Wheel sensor, ICO tripmaster

76712085030

Unavailable

20

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

41

Roadbook cover cmpl.

76712098150

Unavailable

42

Top handle

76712098193

Unavailable

43

Bottom grip

76712098192

Unavailable

44

O-ring 42x3 - NBR

76712098195

Unavailable

45

Illumination LED

76712098191

Unavailable

46

Electric motor

76712098194

Unavailable

47

Set of bushings

76712098144

Unavailable

48

Roadbook tool

76712098190

Unavailable
