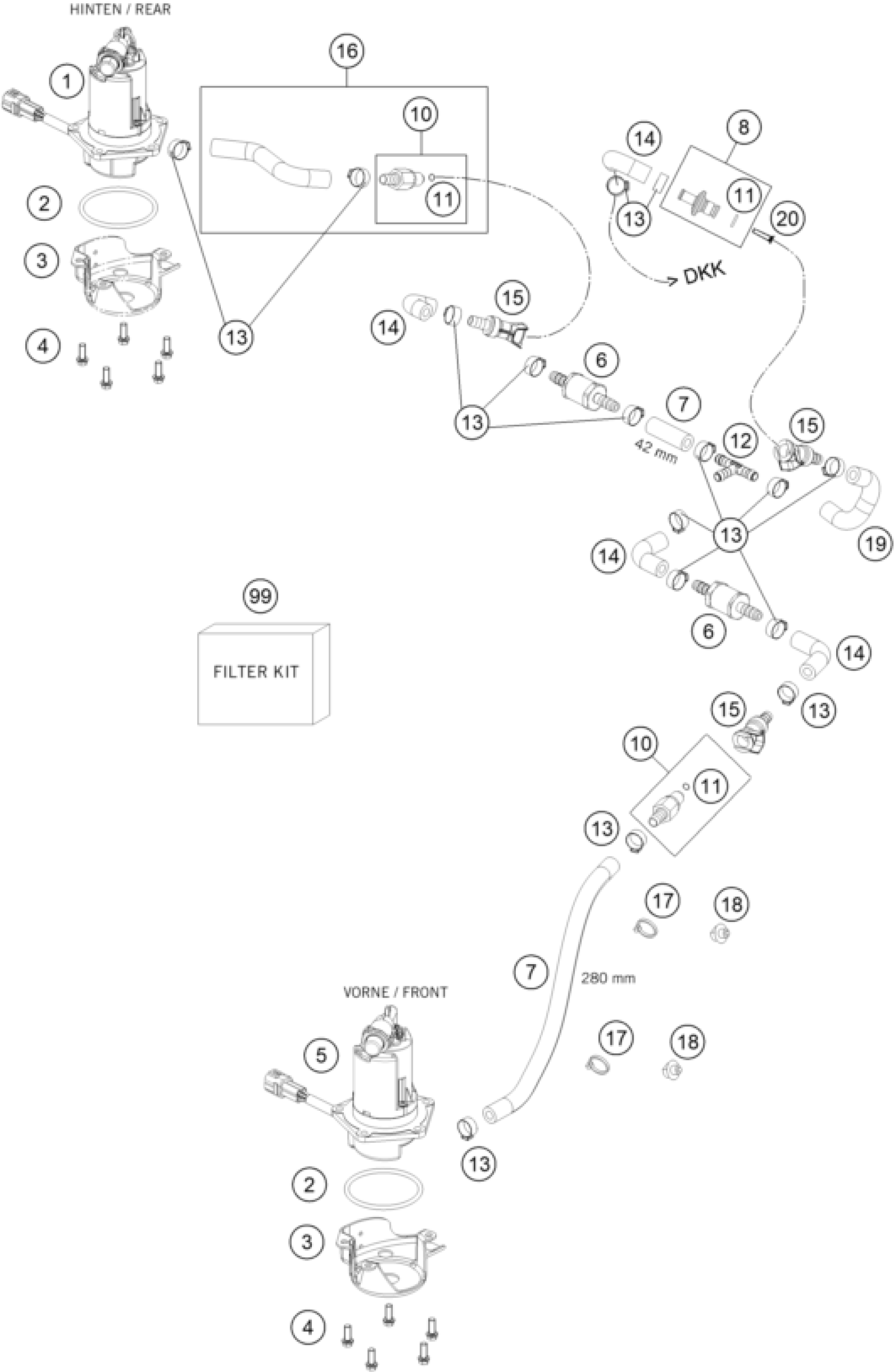

KTM 450 RALLY Factory Replica 2018 FUEL PUMP Diagram

#

Description
Price

1

FUEL PUMP

76407088000

$610.17

2

O-RING 64.6X5.7 NBR 70 SHORE

0770646057

$1.49

3

FUEL PUMP PROTECTION

76407125000

Unavailable

4

HH collar screw M6x16 TX30

0025060166

$3.08

6

FLAP VALVE

76441010100

Unavailable

7

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

10

Plug CPC black 05

5850701030030

$43.28

11

O-ring VITON f. plug CPC 0

58507012000

$6.26

12

T-connector 7.5

55441007000

$1.49

13

Variable one-ear clamp 15.7mm

00050157706

$5.23

14

FUEL HOSE TANK

77407116000

$15.98

99

FILTER KIT

76407088100

Unavailable

5

Fuel pump

76707088000

Unavailable

8

Fuel connection

77707010000

$15.14

15

Clutch CPC PLCD17005, black

5850701050030

$55.90

16

Fuel hose tank/clutch cpl.

76707016044

Unavailable

17

CABLE TIE 200MM

76311093200

$1.49

18

Plug-in base

76711094010

Unavailable

19

Reduced fuel hose

76707017100

Unavailable

20

FUEL FILTER

78141013190

$9.53
