Description

Price

1

Special screw, air box cover

76706006000

Unavailable

2

air filter twin air

76706015000

Unavailable

3

Air filter nozzle

76706014000

Unavailable

4

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

5

RUBBER SLEEVE D=12MM

41001052000

$4.11

6

Filter carrier cpl.

76706016000

Unavailable

7

HOSE CLAMP 60-80MM

55006028000

$4.11

8

Manifold

76706026000

Unavailable

9

HOSE CLAMP 45-65MM

78006027000

$5.23

10

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

$23.74

11

AH collar screw DIN 912 M5x16

0912050163

$1.49

12

NUT F.TANK BRAKET REAR

60512063050

$26.55

13

ALU FLANGE

76206050000

$69.18

14

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

15

Engine vent hose

76730087000

Unavailable

16

Air filter cover

76706017000

Unavailable

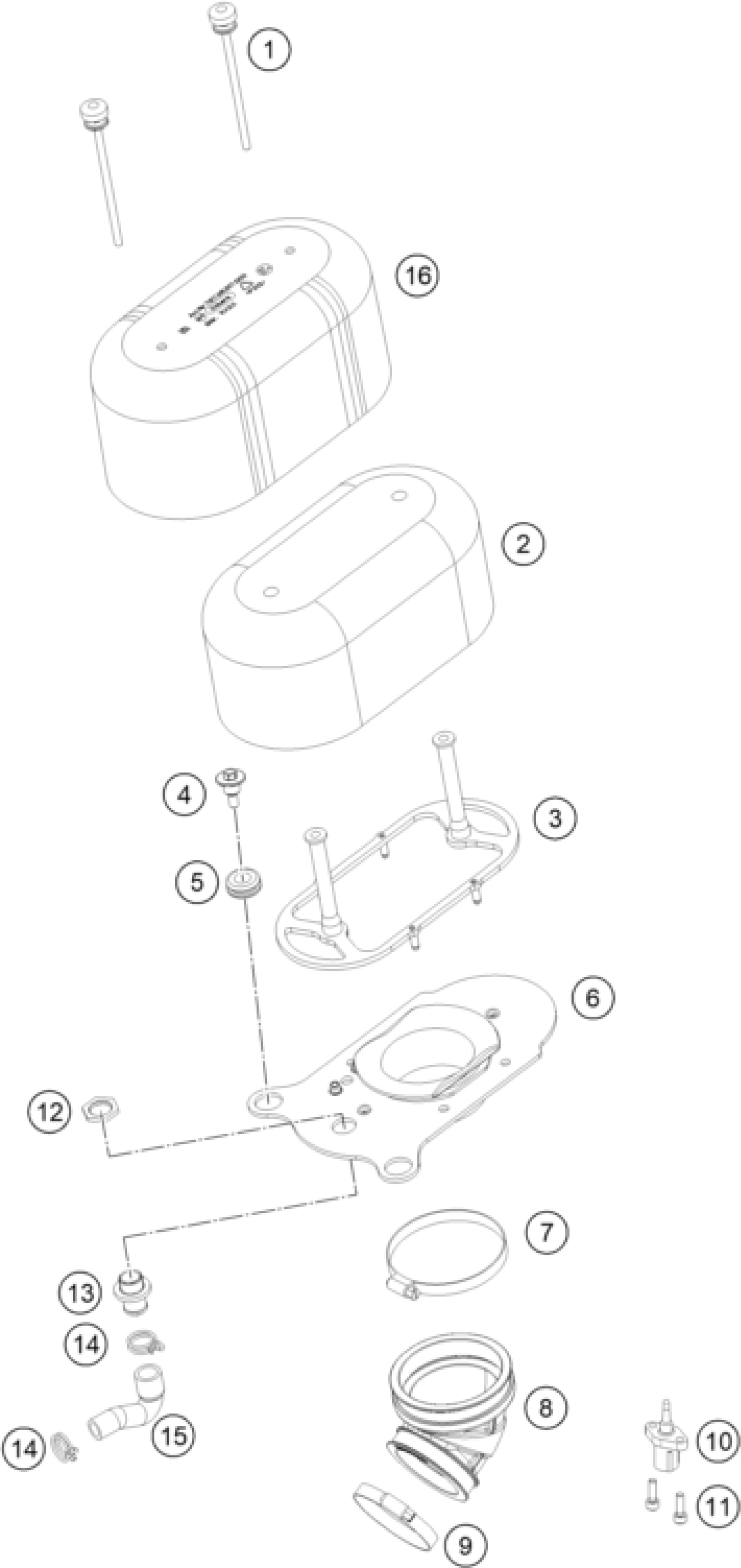

KTM 450 RALLY Factory Replica 2018 AIR FILTER Diagram

Special screw, air box cover

air filter twin air

Air filter nozzle

SPECIAL SCREW M6X21 WS=8

RUBBER SLEEVE D=12MM

Filter carrier cpl.

HOSE CLAMP 60-80MM

Manifold

HOSE CLAMP 45-65MM

AMBIENT-AIR TEMPERATURE SENSOR

AH collar screw DIN 912 M5x16

NUT F.TANK BRAKET REAR

ALU FLANGE

CLAMP YDNAC 10173 (18MM)

Engine vent hose

Air filter cover
