Description

Price

3

WIRING HARNESS INSTRUMENTS

76411078100

Unavailable

1

WIRING HARNESS

76411075100

Unavailable

2

WIRING HARNESS LIGHT FRONT

76411082000

Unavailable

5

HH collar screw M5x10 TX30

0025050106

$1.49

6

Plug-in fuse, big 10A

58011109110

$2.05

6

FUSE 15 A

58011109115

$1.49

7

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

7

Cable tie 200/4.6mm black

44011076200

Unavailable

7

CABLE TIE 200MM

76311093200

Unavailable

7

CABLE TIE 280MM

76311093280

Unavailable

8

FUSE-BOX COVER

58511075510

$12.61

9

FLASHER UNIT 97

44611207200

$49.83

10

DC HORN L.E.B. 03

50311060100

$32.44

11

washer DIN 9021 A - 5.3

0021050003

$1.49

12

Self locking nut DIN 985 M5

0985050003

$2.05

13

VOLTAGE REGULATOR

78111034000

$212.98

14

HH collar screw M6x20 TX30

0025060206

$3.08

17

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

18

BULB 12V 2,3W (W2X4,6D)

49111425200

$2.05

19

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

$5.23

4

GROUND CABLE 04

80011097000

Unavailable

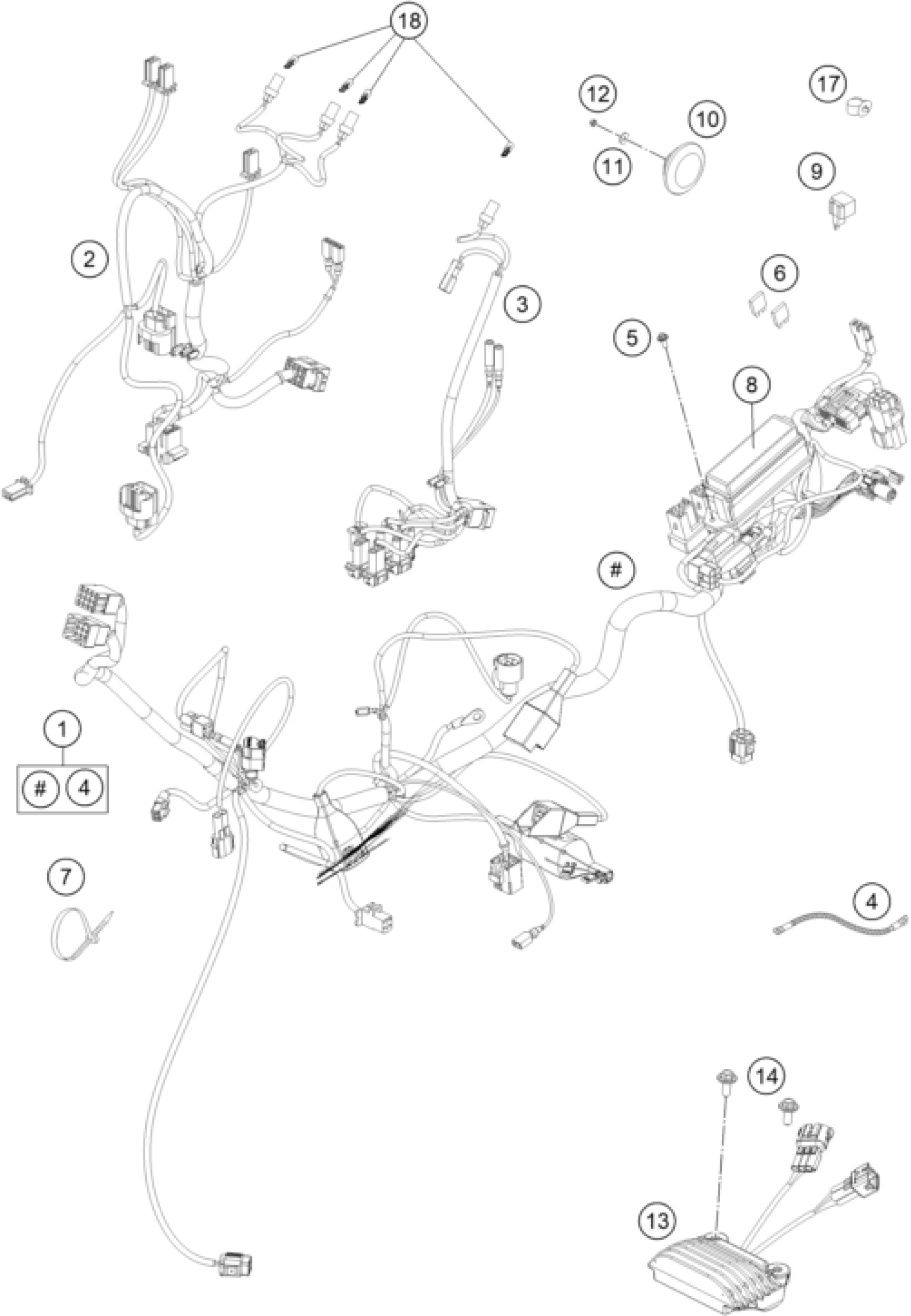

KTM 450 RALLY FACTORY REPLICA 2017 WIRING HARNESS Diagram

WIRING HARNESS INSTRUMENTS

WIRING HARNESS

WIRING HARNESS LIGHT FRONT

HH collar screw M5x10 TX30

Plug-in fuse, big 10A

FUSE 15 A

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 200MM

CABLE TIE 280MM

FUSE-BOX COVER

FLASHER UNIT 97

DC HORN L.E.B. 03

washer DIN 9021 A - 5.3

Self locking nut DIN 985 M5

VOLTAGE REGULATOR

HH collar screw M6x20 TX30

CABLE SUPPORT KHS NR.150-47610

BULB 12V 2,3W (W2X4,6D)

BULB 12V 5W (W2,1X9,5D) PHIL.

GROUND CABLE 04
