- 450 RALLY FACTORY REPLICA 2017
COOLING SYSTEM

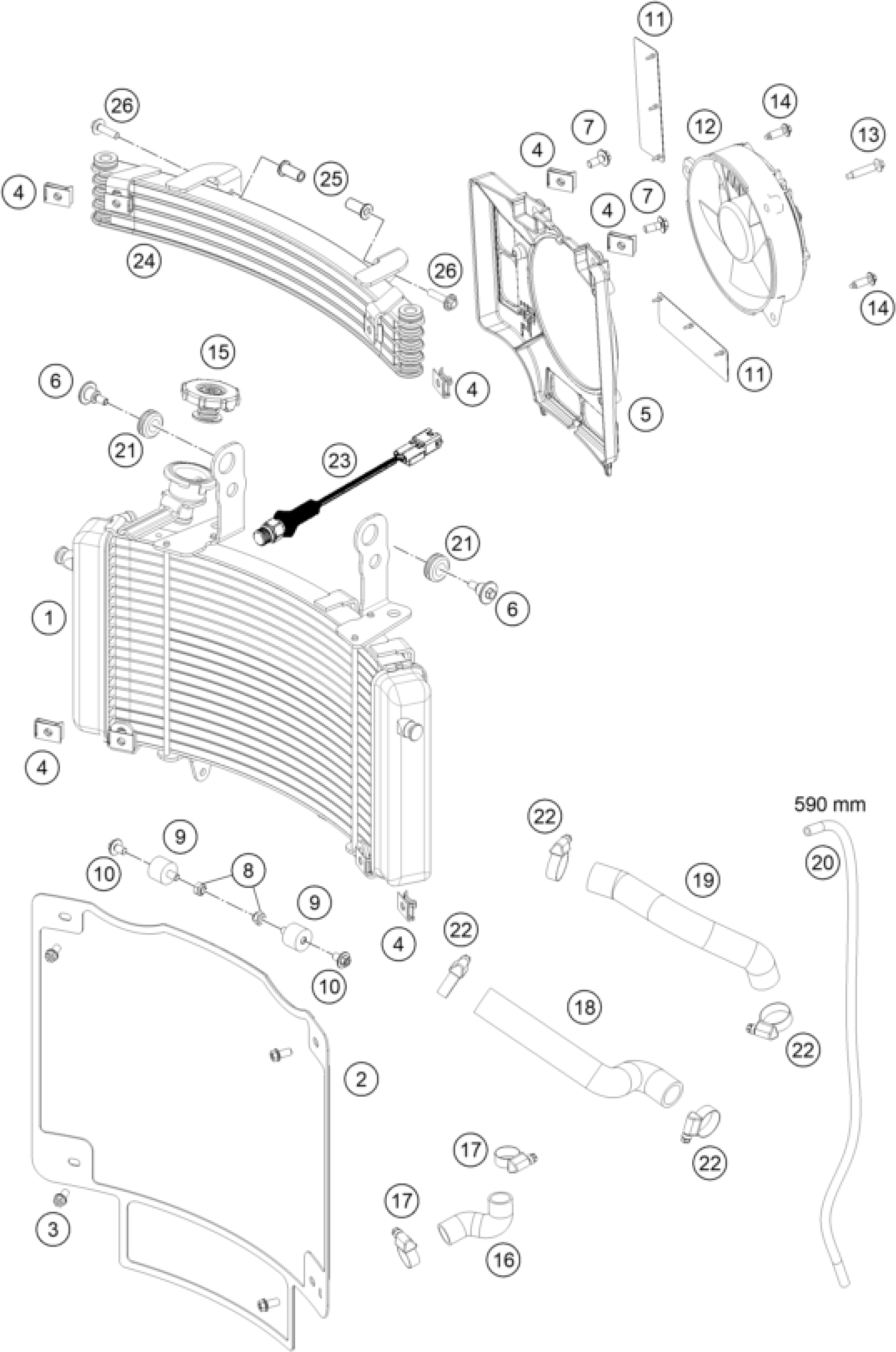

KTM 450 RALLY FACTORY REPLICA 2017 COOLING SYSTEM Diagram
#
Description
Price
25
INSULATED SCREW JOINT M6
76212090070
Unavailable
26
HH COLLAR SCREW M 6X20 WS=8
0014060203
$2.05
1
WATER RADIATOR
76435010000
Unavailable
2
RADIATOR PROTECTION CPL.
76435134000
Unavailable
3
HH collar screw M6x13 TX30
0024060136
$3.08
4
clip nut M6
54603048100
$4.11
5
FAN COVER
76435044000
Unavailable
6
SPECIAL SCREW M6X21 WS=8
60035001000
$3.08
7
HH collar screw M6x15 TX30
0024060156
$3.08
8
Self lock. nut DIN985-M6-A2
0985060003
$2.05
9
silentbloc 20x15-M6x10-(1)
43205062100
$13.92
10
HH COLLAR SCREW M6X10 TX30
0024060106
$3.08
11
FAN CLACK RUBBER 08
62635044050
$8.03
12
FAN L/S 03
60035041000
$164.83
13
Special screw K60X30 WS=6
0017060305
$2.05
14
SCREW FOR PLASTIC K60X20 SW6
0017060205
$2.05
15
RADIATOTR CAP
76435009000
Unavailable
16
RADIATOR HOSE
76435026002
Unavailable
17
HOSE CLAMP NORMA 14/24
42013037400
$2.05
18
RADIATOR HOSE
76435026000
Unavailable
19
RADIATOR HOSE
76435026001
Unavailable
20
Hose 5x8mm
58507007001
$83.11
21
RUBBER SLEEVE D=12MM
41001052000
$4.11
22
HOSE CLAMP GEMI 18-29
10001020000
$2.05
23
THERMOSWITCH 80-85 DG
76435045000
Unavailable
24
OIL RADIATOR
76438051000
Unavailable
