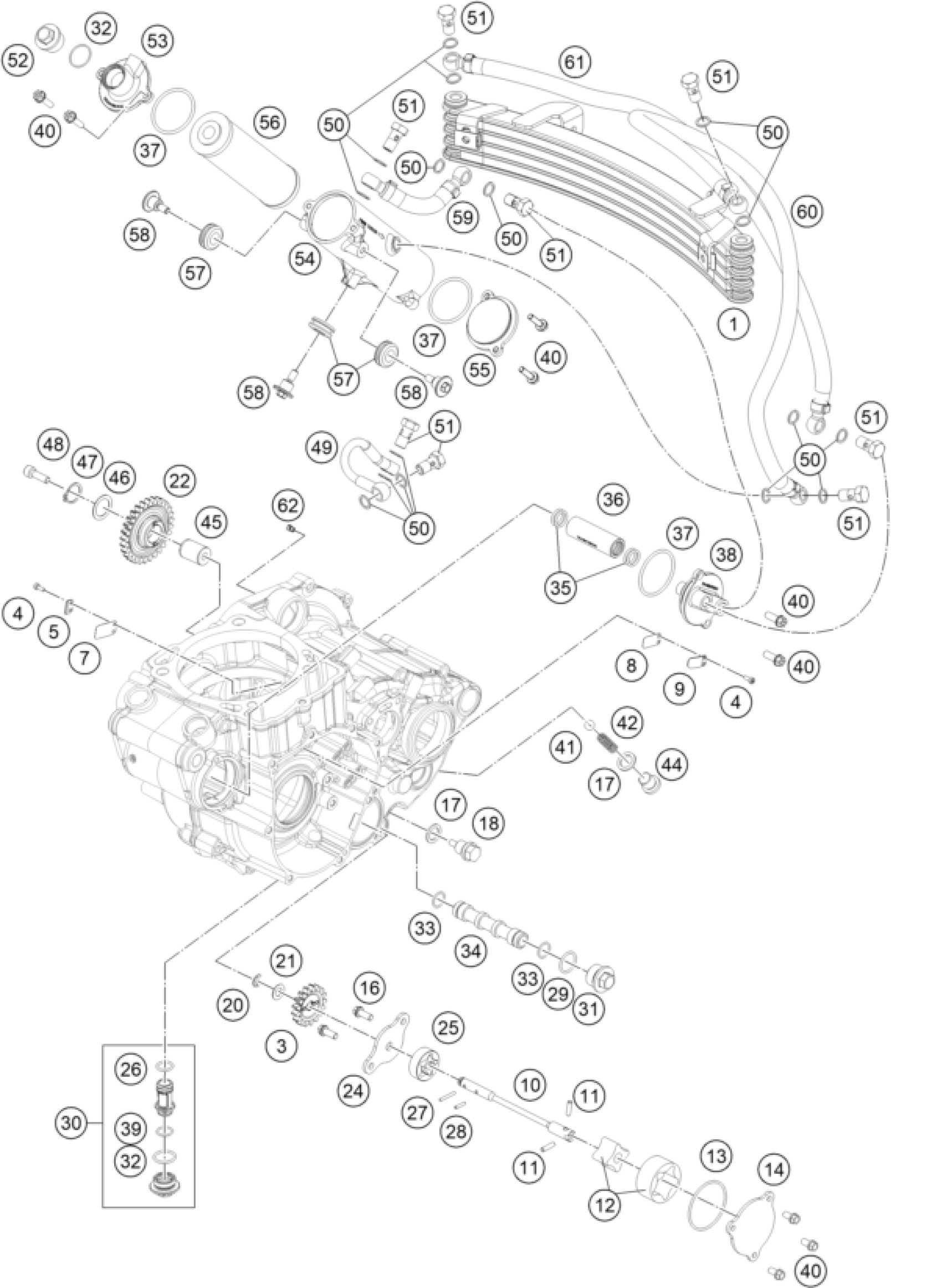

KTM 450 RALLY FACTORY REPLICA 2016 LUBRICATING SYSTEM Diagram

#

Description
Price

9

TAB WASHER MEMBRAN CSC

81205027004

$5.23

3

OIL PUMP GEAR 17 T

78038001017

$5.23

8

MEMBRAN CRANKCASE

81205027003

$5.23

10

OIL PUMP SHAFT SP-DP

78138102000

$25.42

11

needle roller NRB 4x15.8 G2

0402041580

$2.05

12

ROTOR-SET CPL. 22MM

61238111000

$16.63

13

O-RING 44,00X2,00 VITON

0770440020

$3.08

14

OIL PUMP COVER SUCTION PUMP

78038004000

$25.61

16

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

17

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

18

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

20

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

21

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

22

IDLER GEAR 1 29Z

78138001029

$5.98

24

OIL PUMP COVER

78138003000

$21.31

25

OILPUMP ROTOR 15MM G-164

77038011000

$43.75

26

O-RING 12X2 VITON GREEN

0770012021

$2.05

27

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

28

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

29

O-RING 17,17X1,78 GLO

0770020170

$2.05

30

OIL SCREEN CPL.

78138015001

$34.96

4

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

$3.08

5

STOP SHEET MEMBRANE 07

75030003050

$2.05

7

MEMBRANE 07

75030003051

$2.24

31

PLUG M20X1,5 WS=13

59038017100

$7.85

32

O-RING 17X2,5

0770017025

Unavailable

33

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

34

OIL SCREEN

59038016100

$7.00

35

O-RING 12X2 VITON GREEN

0770012021

$2.05

36

PIPE OIL LINE CONNECTOR

76438035000

Unavailable

37

O-RING 39,34X2,62

07700390261

$2.05

38

OIL LINE CONNECTOR

76438050000

Unavailable

39

O-RING 12,5X1,5 NBR

0770125015

$2.05

40

HH collar screw M5x16 TX30

0025050166

$2.05

41

BALL DIN5401-9

0401090003

$2.05

42

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

44

threaded plug DIN 908 M12x1.5

0908120153

$4.11

45

BUSHING PIN

78040028000

$6.91

46

SHIM WASHER DIN0988-17X24X0,5

0988172405

$2.05

47

CIRCLIP DIN0471-17X1

0471170010

$2.05

48

AH SCREW DIN0912-M 6X20 SS

0912060208

$2.05

49

OIL JET

76438034000

Unavailable

50

sealing ring DIN 7603 10x14x1

0603100141

$2.05

51

HOLLOW SCREW M10 X 1

54313025000

$6.44

52

PLUG M20X1,5 WS=13

59038017100

$7.85

53

COVER OIL FILTER 1

76438041000

Unavailable

54

HOUSING OI FILTER

76438043000

Unavailable

55

COVER OIL FILTER 2

76438042000

Unavailable

56

OIL FILTER

83538005000

$11.77

57

RUBBER SLEEVE D=12MM

41001052000

$4.11

58

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

59

OIL PIPE L=105MM

76438053000

Unavailable

60

OIL PIPE L=615MM

76438054000

Unavailable

61

OIL PIPE L=696MM

76438055000

Unavailable

62

OIL JET ''60'' M4

80030058060

$11.87

1

OIL RADIATOR

76438051000

Unavailable
