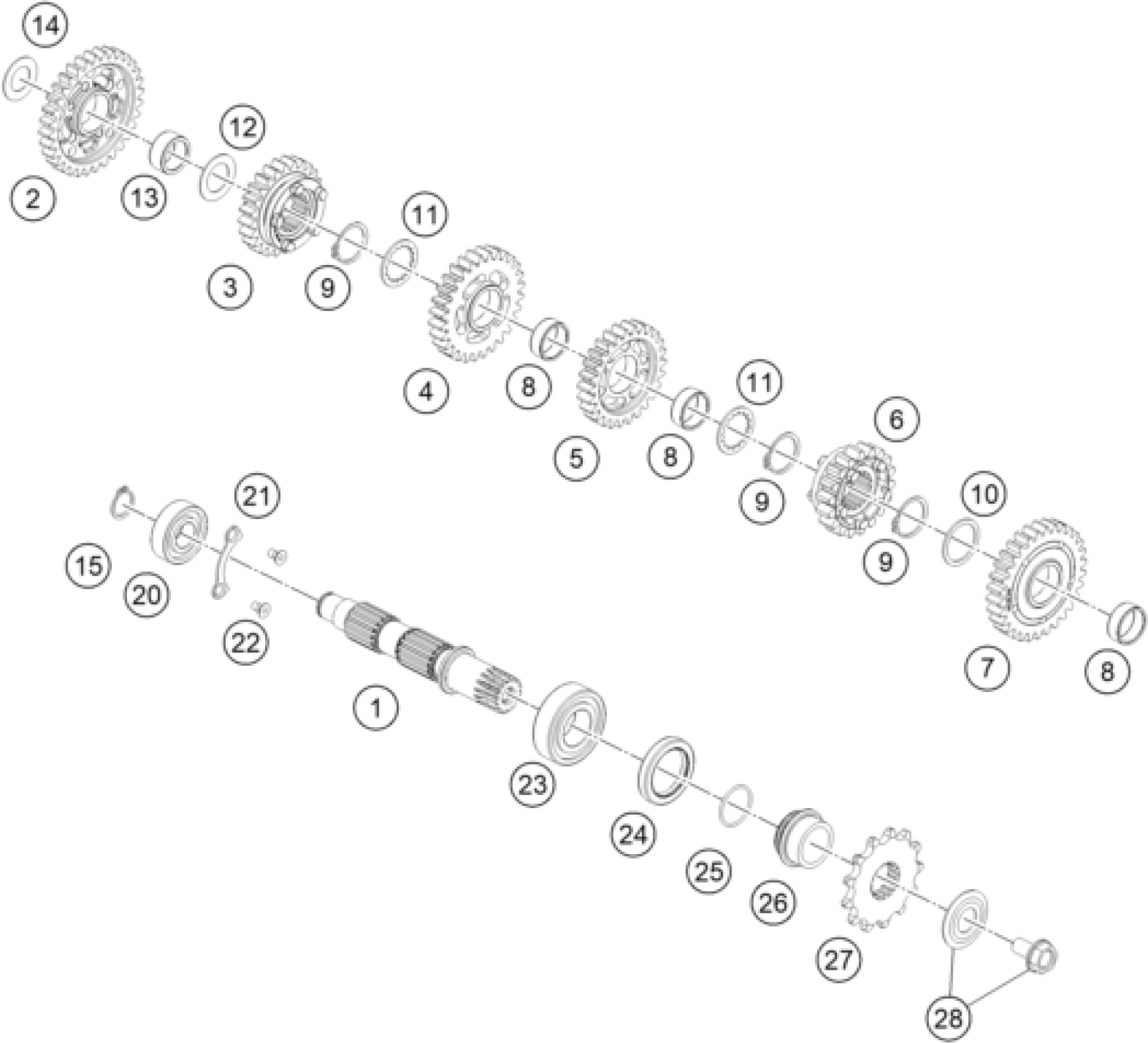

KTM 450 RALLY FACTORY REPLICA 2015 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTERSHAFT

76433010000

Unavailable

2

IDLER GEAR 1.G.

76433011000

Unavailable

3

SLIDING GEAR 5.G.

76433015000

Unavailable

4

IDLER GEAR 3.G.

76433013000

Unavailable

5

IDLER GEAR 4 G.

76433014000

Unavailable

6

SLIDING GEAR 6.G.

76433016000

Unavailable

7

IDLER GEAR 2.G.

76433012000

Unavailable

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

9

CIRCLIP DIN0471-25X1,2

0471250120

$2.05

10

STOP DISK 26 X 32 X 1,5

78033031000

$3.08

11

STOP DISK 23 X 32 X 1,5

78033033000

$3.08

12

Shim 20x31.9x1

59033080000

$2.05

13

NEEDLE BEARING K 20X26X12

0405202612

$10.93

14

STOP DISC 17,2X30X1

56033030000

$4.11

15

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

20

BALL BEARING 6203 JR2 C3

0625062035

$14.48

21

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

23

cylindrical roller bearing NJ2

49030023000

$74.42

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

25

O-RING 25,12X1,78 NBR70

0770020220

$3.08

26

SPACER SLEEVE COUNTER

76433030000

Unavailable

27

Sprocket 13-t

79233029013

Unavailable

27

Sprocket 14-t

79233029014

$30.94

27

FRONT SPROCKET 15-T

50033029015

Unavailable

28

SCREW 10.9+SPRING WASHER

59033034044

$7.85
