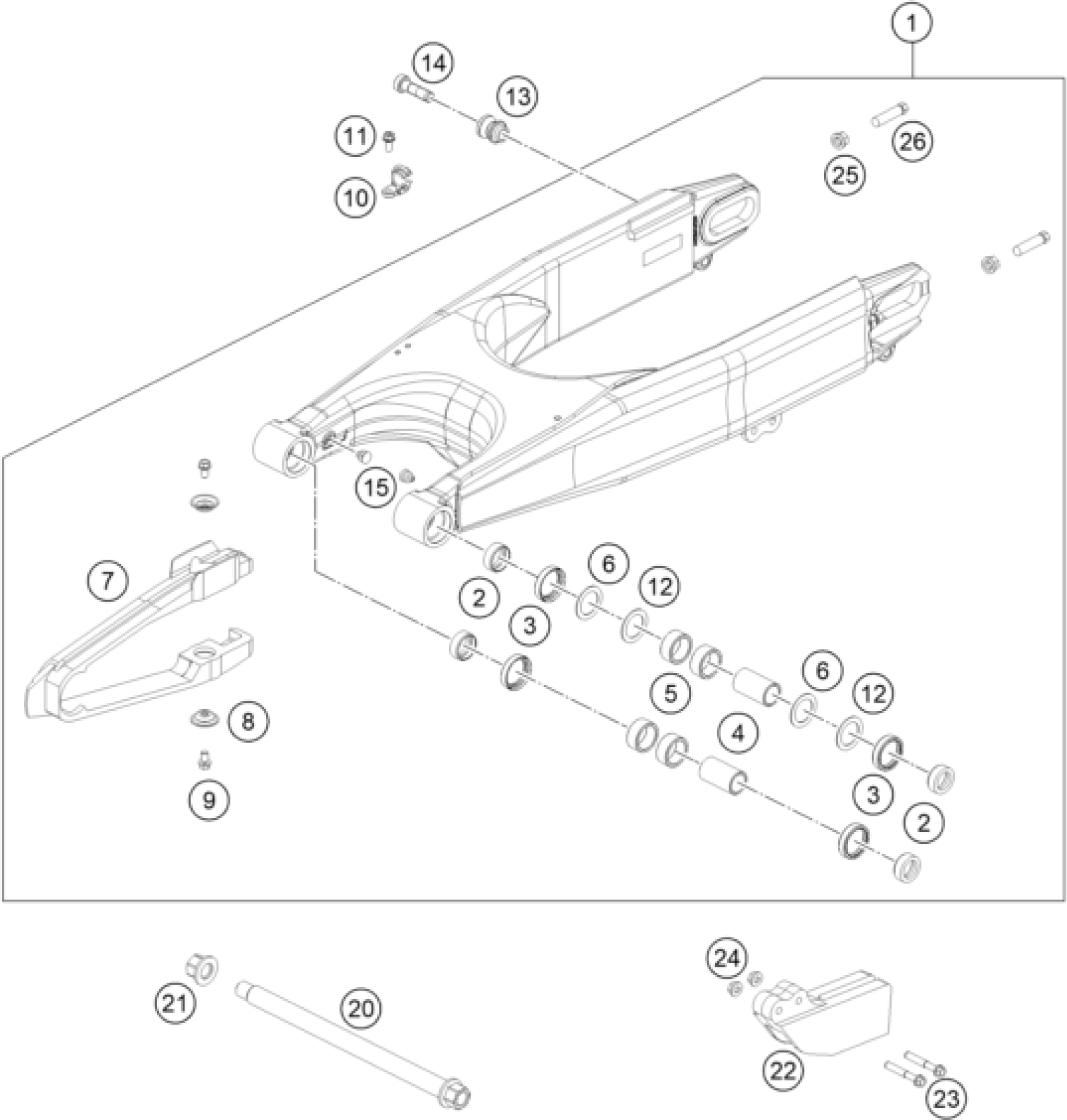

KTM 450 RALLY FACTORY REPLICA 2015 SWING ARM Diagram

#

Description
Price

15

PLUG SFL12 GREY 05

60004042000

$1.49

1

SWINGARM RALLY CPL.

76404030044

Unavailable

2

SPACER F. SHAFT SEALRING 07

76204034000

Unavailable

3

radial shaft seal 25x32x7

0760253270

$6.63

4

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

5

Needle bushing HK2212V 22/28/1

0618222812

$9.81

6

STOP DISK 22X32X1,0

76203037100

Unavailable

7

CHAIN GUARD 05

50304066100

$25.52

8

BUCKET

72210079000

$3.00

9

HH collar screw M6x10 TX30

0025060106

$3.08

10

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

11

SPECIAL SCREW M 5,0X10

0010050103

$2.05

12

STOP DISK 22,2X31,7X0,5

76203037000

Unavailable

13

SUPPORT F. LIFTING DEVICE

76404059000

Unavailable

14

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

20

SWINGARM BOLT CPL. 07

76204037044

Unavailable

21

Self locking nut M14x1.5 WS19

54603015000

$5.51

22

CHAIN GUIDE REAR '94

54607066100

$28.60

23

HH collar screw M6x40 TX30

0025060406

$3.08

24

Self locking nut M6 - 10

56509064100

$2.05

25

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

26

screw M10x1.25x50 WS10

50304040100

$5.23
