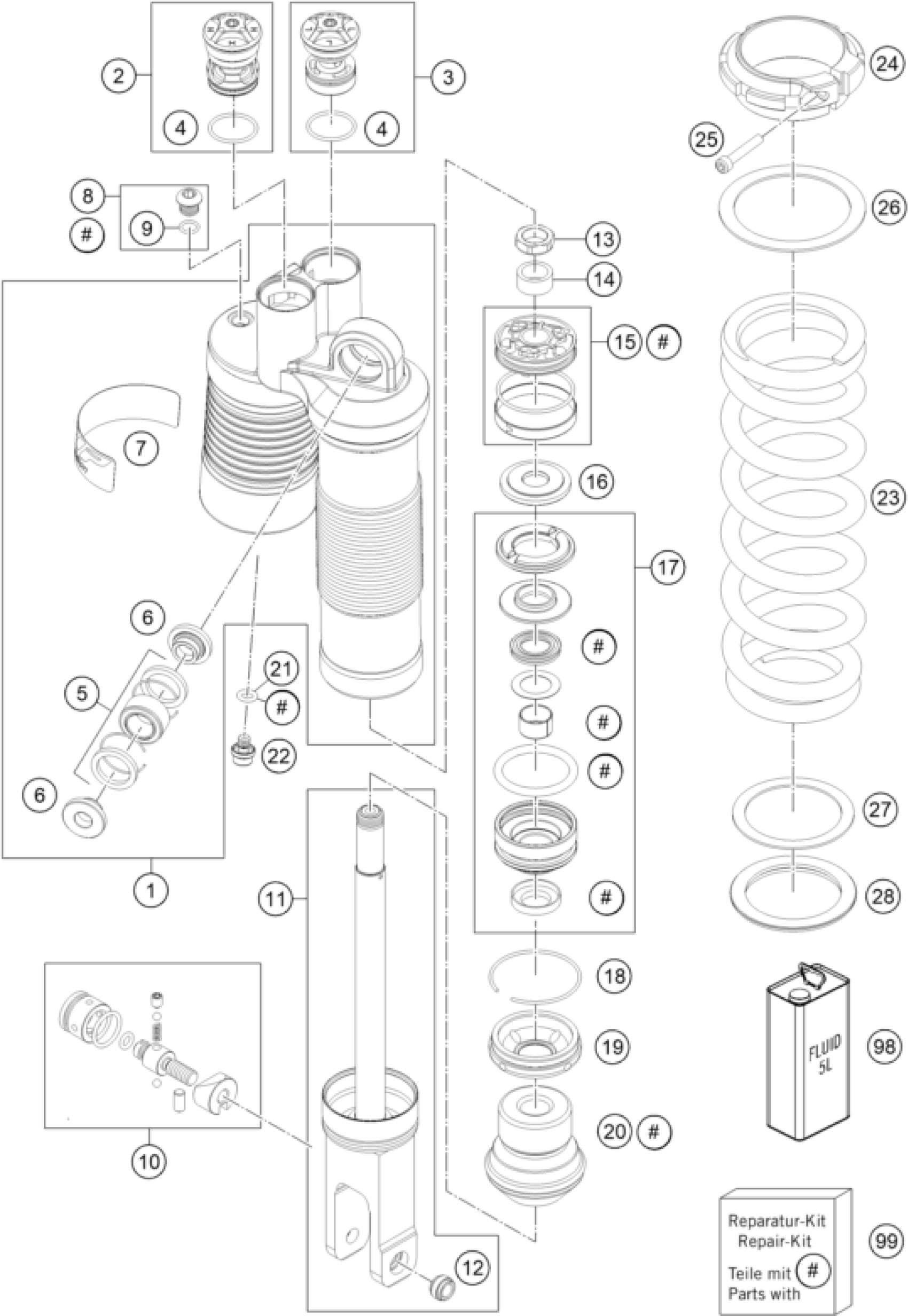

KTM 450 RALLY FACTORY REPLICA 2015 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

17

Sealholder 50x28 cpl.

50180603S

$74.88

18

Round-wire snap ring 53x1,75

50180126

$1.49

16

Rebound disc 16x34x5 h2

50180233

$91.06

19

COVER D50H8

50181061

Unavailable

20

Rubber pad 17x58x59

50180480

$20.37

21

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

22

HS lock screw M5x6

36120151

$1.86

23

SPRING (64/58) 54-260 D11,25

91310067S

Unavailable

24

SPRING RET. M57,5X1

50180678

Unavailable

25

HS cylinder-head screw M5x30

50180327

$4.11

27

Washer 58,6x73,6x1,5

50180410

$4.11

28

Spring retainer 58,1x76,5x2,5

50180552

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

2

DCC COMPR.DAMP.ADJ. HS LINK

50181009S

Unavailable

3

DCC COMPR.DAMP.ADJ. LS 10

50181008S

Unavailable

14

SPACER BUSHING

50181114

Unavailable

15

PISTON CPL.

50180311S

Unavailable

13

PISTON ROD NUT M16X1

50180529

Unavailable

26

Intermediate washer spring 64,

50180746

Unavailable

99

REPAIR-KIT

R14055

Unavailable

9

O-ring 8x1,5 Viton75 green

50180100

$1.49

10

TAP ADJ. REBOUND

46180522S1

$50.11

1

MONOSOCK UPPER PART CPL.

50181064S

Unavailable

5

Ball joint bearing kit top 12m

R12012

$35.71

6

Distance bush 10x15/18/24,5x10

46180010

$4.11

4

O-ring 23,52x1,78 Viton70 gree

50180524

Unavailable

11

MONOSHOCK BOTTOM PART CPL.

50180773SA2

Unavailable

7

STICKER WP WARNING

52000128

$2.05

8

PLUG ALU M10X1 CPL.

40140014S

Unavailable

12

Bush M10x12/15/13x9,5

46811205

$6.72
