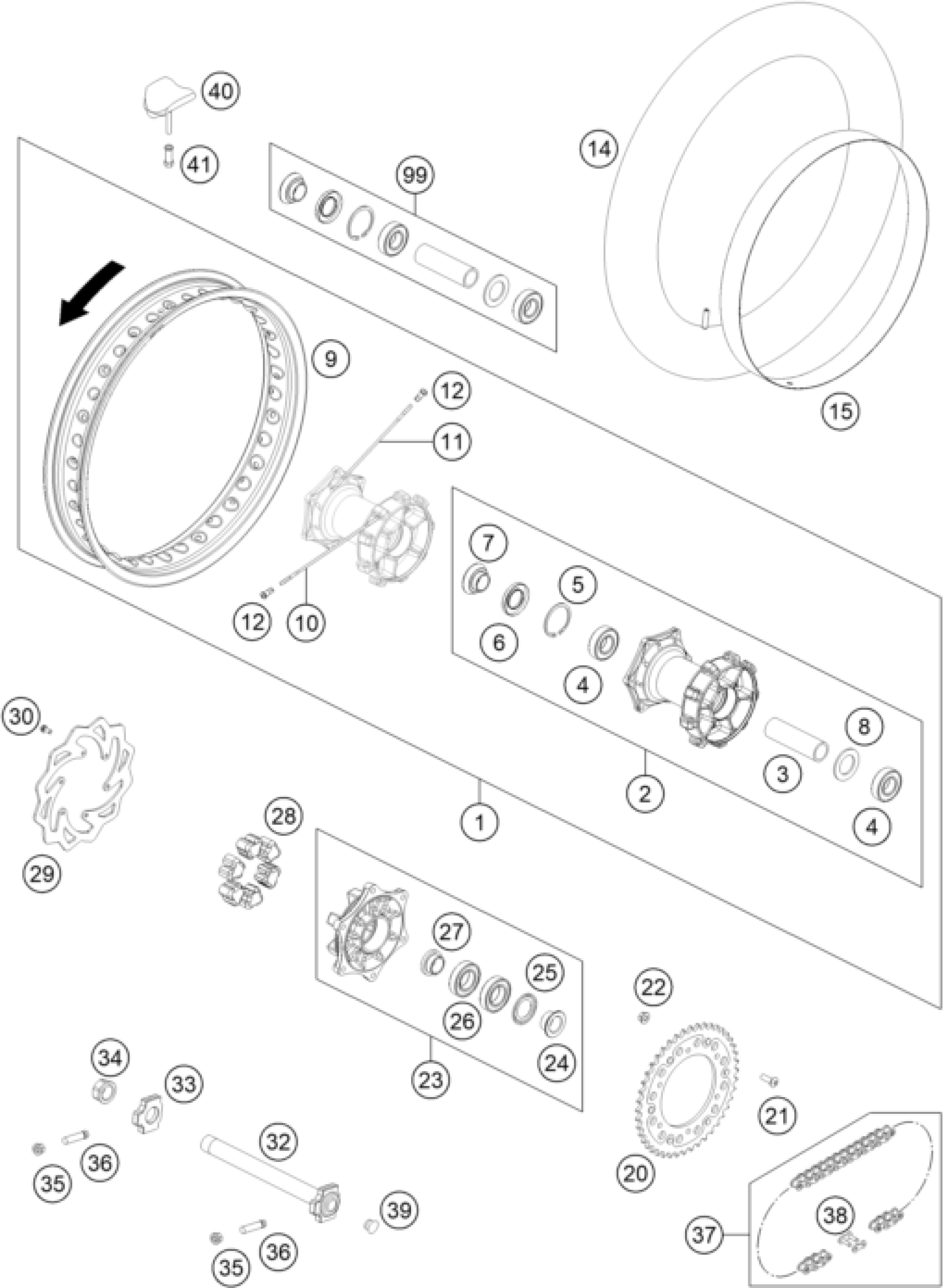

KTM 450 RALLY FACTORY REPLICA 2015 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL RALLY CPL.

76410001044

Unavailable

2

REAR WHEEL HUB CPL.

7531001004491

$303.31

3

BEARING SPACER TUBE L=106MM 07

75310011000

$21.40

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

9

RIM 2.50X18''

7621007000030

Unavailable

10

SPOKE M5X215

76410071215

Unavailable

11

SPOKE M5X205

76410071205

Unavailable

12

SPOKE NIPPLE QUADRAX M5

60310072100

$2.05

14

TUBE 110/100C-18

50310075100

Unavailable

15

Tube protector 18" and 19"

50310073200

Unavailable

20

REAR SPROCKET ORANGE 44-T

5841005104404

Unavailable

20

REAR SPROCKET ORANGE 46 T.

5841005104604

Unavailable

20

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

20

REAR SPROCKET ORANGE 49-T

5841005104904

Unavailable

20

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

20

REAR SPROCKET ORANGE 51-T

5841005105104

$101.14

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Self locking nut M8 10.9

54310086200

$3.08

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

$219.06

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

REAR BRAKE DISK D=240X4MM

76510060100

$161.75

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

32

WHEEL SPINDLE REAR CPL.

76210081044

Unavailable

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

36

screw M10x1.25x50 WS10

50304040100

$5.23

37

CHAIN DID 118 LINKS

78010167118

$125.66

38

RIVETING LINK FOR 78010167118

78010166100

$13.27

39

Plug SFL16

50210086000

$3.08

40

RIM LOCK VM4 (2.50'')

56410100100

Unavailable

41

NUT FOR WHEEL HOLDER

77110090050

Unavailable

99

REAR WHEEL REP. KIT

75010015000

Unavailable
