Description

Price

1

FRONTWHEEL CPL.1,6X21EXCEL

7640900104430

Unavailable

2

FRONT HUB CPL.

7530901004491

$297.13

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

$25.70

4

Grooved ball bearing 6906

0625069068

$34.68

6

Radial shaft seal 35X47X7 TC

0760354771

$8.69

7

SPACER BUSHING F. FR. WHEEL 08

78009012000

$30.10

10

SPOKE

76409071240

Unavailable

11

SPOKE NIPPLE QUADRAX M4,5

76409072000

Unavailable

12

RIM 1,6''X21'' EXCEL SXS

7730907000030

$236.64

13

Tube protector 21"

50309073000

$10.09

14

Hose 21"

50309075000

$39.45

15

RING WRENCH 32MM

76212060032

Unavailable

20

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

$82.83

21

COLLAR SCREW FRONT AXLE WS32

76209082000

Unavailable

22

FRONT AXLE PULL 26MM 04

54809081060

$19.08

23

BRAKE DISC FRONT 07

58509060000

$351.27

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

31

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

32

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

35

RIM LOCK 1,60''

78109090000

Unavailable

36

NUT FOR WHEEL HOLDER

77110090050

Unavailable

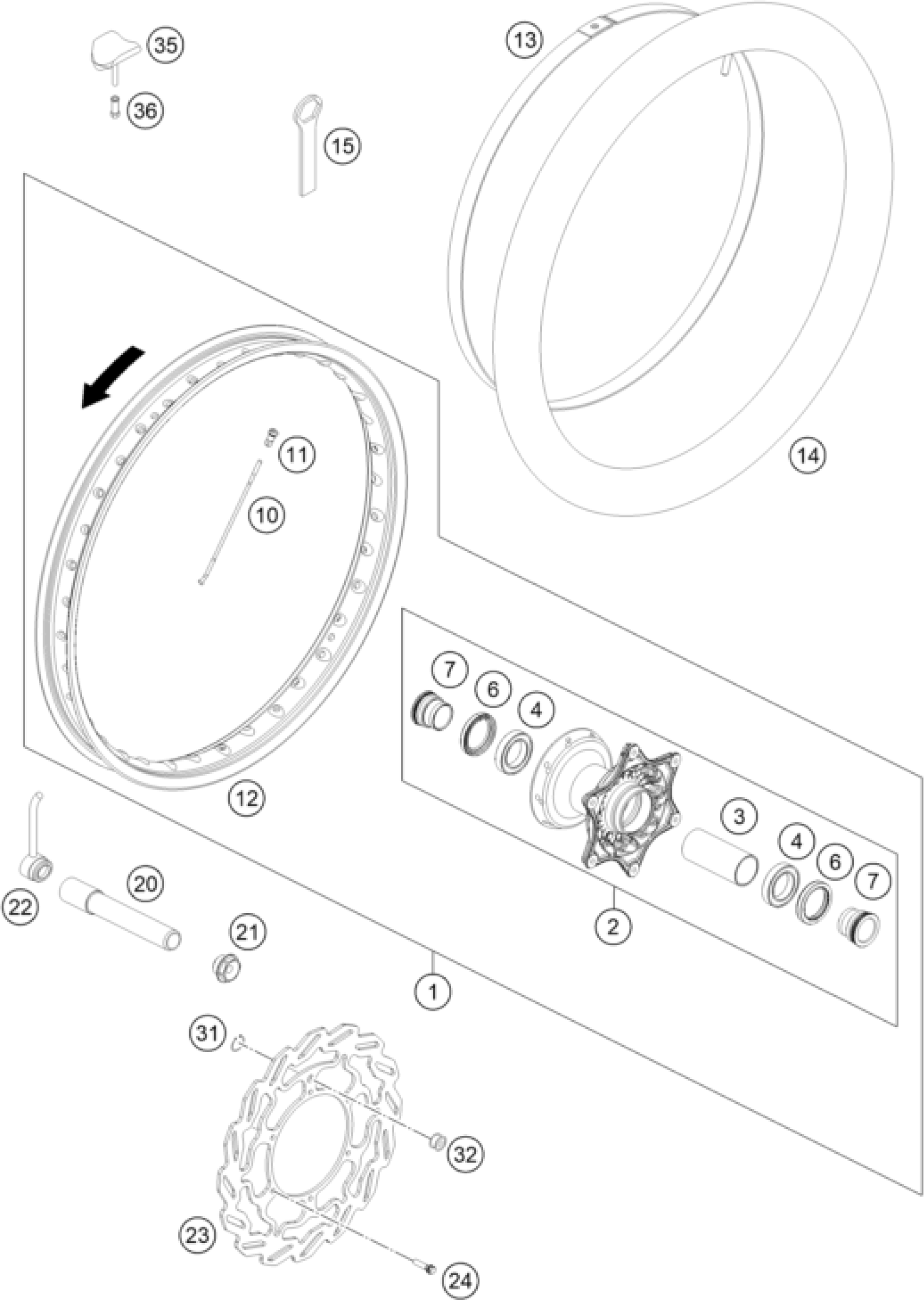

KTM 450 RALLY FACTORY REPLICA 2015 FRONT WHEEL Diagram

FRONTWHEEL CPL.1,6X21EXCEL

FRONT HUB CPL.

BEA.SPACERTUBE 35X2 L=79,4 03

Grooved ball bearing 6906

Radial shaft seal 35X47X7 TC

SPACER BUSHING F. FR. WHEEL 08

SPOKE

SPOKE NIPPLE QUADRAX M4,5

RIM 1,6''X21'' EXCEL SXS

Tube protector 21"

Hose 21"

RING WRENCH 32MM

WHEEL SPIN.FR. D=26 M24x1,5 07

COLLAR SCREW FRONT AXLE WS32

FRONT AXLE PULL 26MM 04

BRAKE DISC FRONT 07

SPECIAL SCREW M6X13 WS=8 10.9

CIRCLIP DIN0471- 9X1 INOX

MAGNET FOR DIGITAL SPEEDOM. 03

RIM LOCK 1,60''

NUT FOR WHEEL HOLDER
