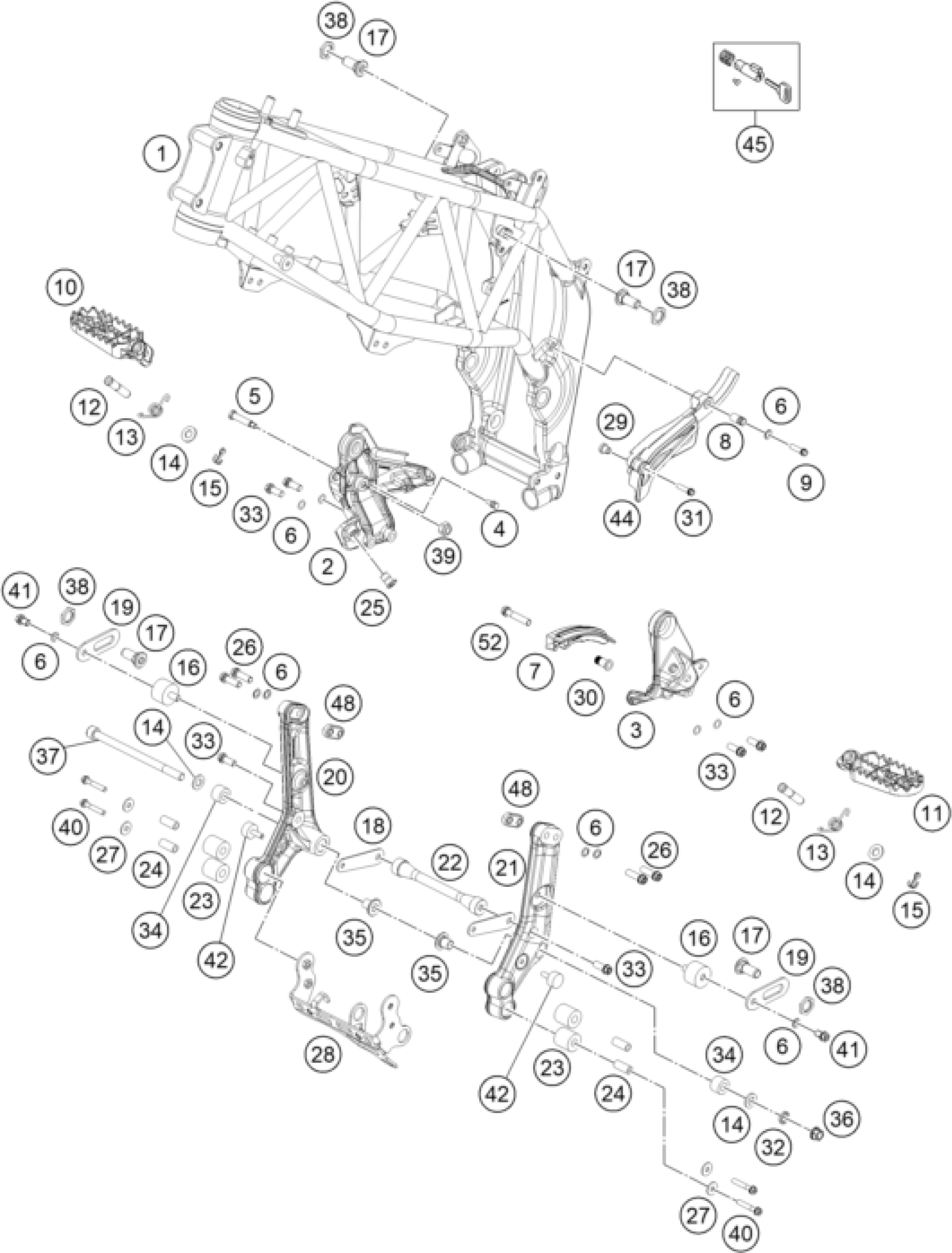

KTM 450 RALLY FACTORY REPLICA 2015 FRAME Diagram

#

Description
Price

4

Mechanical Stop

76413050010

Unavailable

1

FRAME 450 RALLY ORANGE

7640300100004

Unavailable

2

FOOTREST BRACKET RIGHT

76403139000

Unavailable

3

FOOTREST BRACKET LEFT

76403138000

Unavailable

5

BOLT

76413050030

Unavailable

6

LOCK WASHER 8MM

36003014000

$2.05

7

CHAIN SLIDING PART

76404066000

Unavailable

8

BUSHING 8,2X10X20

51103053051

$4.11

9

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

10

FOOTREST RIGHT RALLY 07

76203041250

$108.17

11

FOOTREST LEFT RALLY 07

76203040250

$115.56

12

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

13

FOOTREST SPRING L/S & R/S

54603041000

$5.23

14

washer DIN 125 A 10.5

0125100003

$2.05

15

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

16

RUBBER GROMMET 30X20-M8X20

76305062000

Unavailable

17

FIXING SCREW TANK

76407063000

Unavailable

18

RADIATOR STRUT

76403005030

Unavailable

19

FUEL TANK SUPPORT PLATE

76403034000

Unavailable

20

ENGINE SUPPORT RIGHT

76403106000

Unavailable

21

ENGINE SUPPORT LEFT

76403105000

Unavailable

22

CROSS MEMBER

76403005040

Unavailable

23

RUBBER INSERT

76203005031

$25.89

24

BUSH ENGINE SUPPORT

76203005050

Unavailable

26

HH collar screw M8x25

0025080256

$2.05

30

BUSHING

76304266001

Unavailable

32

PAIR OF WASHERS M10 NORDLOCK

50233041100

$4.11

33

HH collar screw M8x20

0025080206

$2.05

34

ELASTOMER BEARING

76203018000

Unavailable

35

COLLAR BUSH FOR ELAST.BEARING

76203019000

Unavailable

36

COLLAR NUT M10 WS=13

54630044000

$1.49

37

AH SCREW DIN0912-M10X160

0912101603

$6.72

38

NUT F.TANK BRAKET REAR

60512063050

$26.55

40

HH collar screw M6x35 TX30

0025060356

$3.08

44

CHAIN SPROCKET COVER

76403096000

Unavailable

45

STEERING HEAD LOCK 08

78003035000

$20.94

48

NUT PLATE

76403007000

Unavailable

52

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

41

HH SCREW DIN0933-M 8X10

0933080103

$1.49

42

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

29

SPACER BUSHING CHAIN GUARD

76430047005

Unavailable

31

HH collar screw M6x30 TX30

0025060306

$3.08

39

Self locking nut M6 - 10

56509064100

$2.05

27

Washer DIN9021-A 6.4

0021060003

$2.05

28

ENGINE GUARD BRACKET CPL.

76412099024

Unavailable

25

PRESS IN NUT

76403044000

Unavailable
