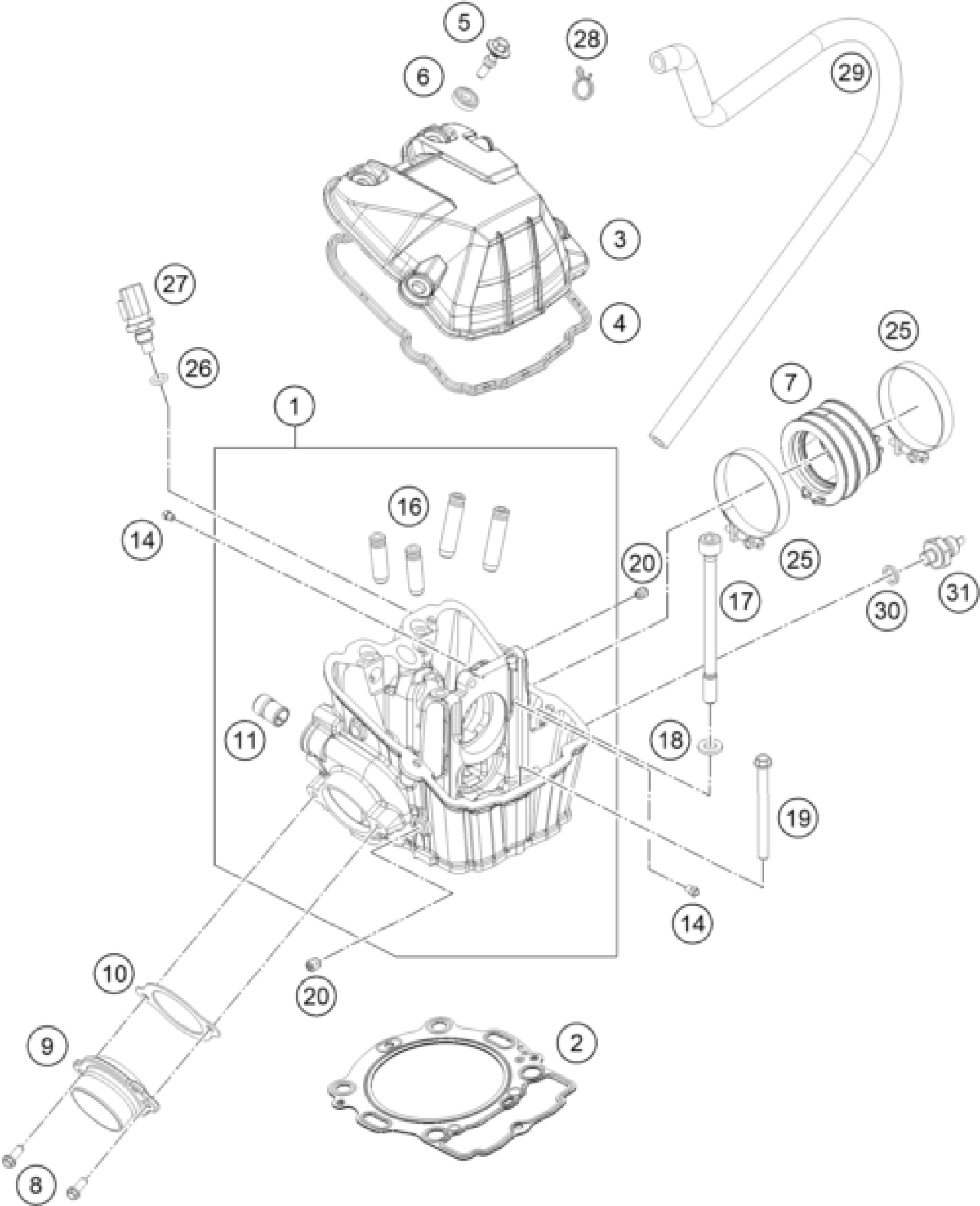

KTM 450 RALLY FACTORY REPLICA 2015 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

76436020000

Unavailable

2

CYLINDER HEAD GASKET S=1.0

78930036010

$94.80

3

VALVE COVER BLACK MATT

7803605200033

$48.89

4

VALVE COVER GASKET

78036053100

$9.90

5

VALVE COVER SCREW

78036054100

$6.63

6

decoupling element

75036052010

$4.11

7

RUBBER BOOT

76436044000

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

9

EXHAUST FLANGE

76436039000

Unavailable

10

EXHAUST FLANGE GASKET

78036041000

$3.08

11

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

14

oil jet 70 M5

60030063070

$8.59

16

VALVE GUIDE INTAKE

76436025001

Unavailable

17

CYL. HEAD SCREW M10X1,25 L=125

78030044000

$6.35

18

washer 19x10.5x2.5

77336089010

$4.11

19

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

20

SCREW PLUG

59030296000

$6.26

25

hose clamp Gemi 66

61236048000

$9.53

26

o-ring 10.00x2.00 silicone

0770100020

$2.05

27

TEMPERAT.-SENSOR WATER LC8 02

60011252000

$36.64

28

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

29

ENGINE BREATHER TUBE

77330086100

$31.88

31

OIL-PRESSURE SWITCH LC8 04

60038091100

$20.66

30

COPPER GASKET 10,2X14X2 MM 01

0603101420

$3.08
